Front Door Key Cylinder Switch LH Check (With left front only power window anti-pinch system)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR KEY CYLINDER SWITCH LH SIGNAL
With CONSULT-II

Check front door key cylinder switch ("KEY CYL LK-SW", "KEY CYL UN-SW(" in DATA MONITOR mode in CONSULT-II. Refer to "DATA MONITOR ".
- When key inserted in front key cylinder is turned to LOCK:
  KEY CYL LK-SW : ON
- When key inserted in front key cylinder is turned to UNLOCK:
  KEY CYL UN-SW : ON

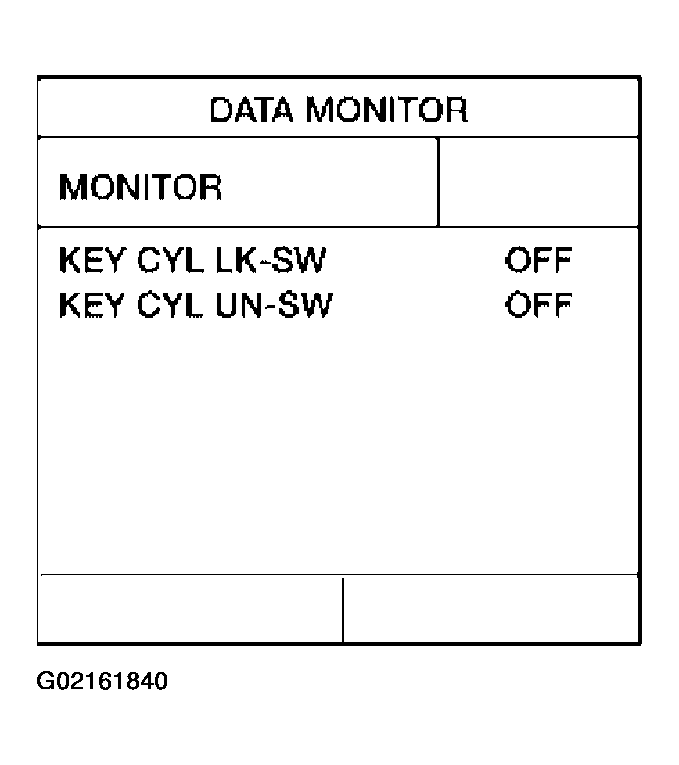

  Fig 1: Checking Door Key Cylinder Switch LH Signal With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Check voltage between BCM connector M18 terminals 59 (P/L), 60 (W/L) and ground.

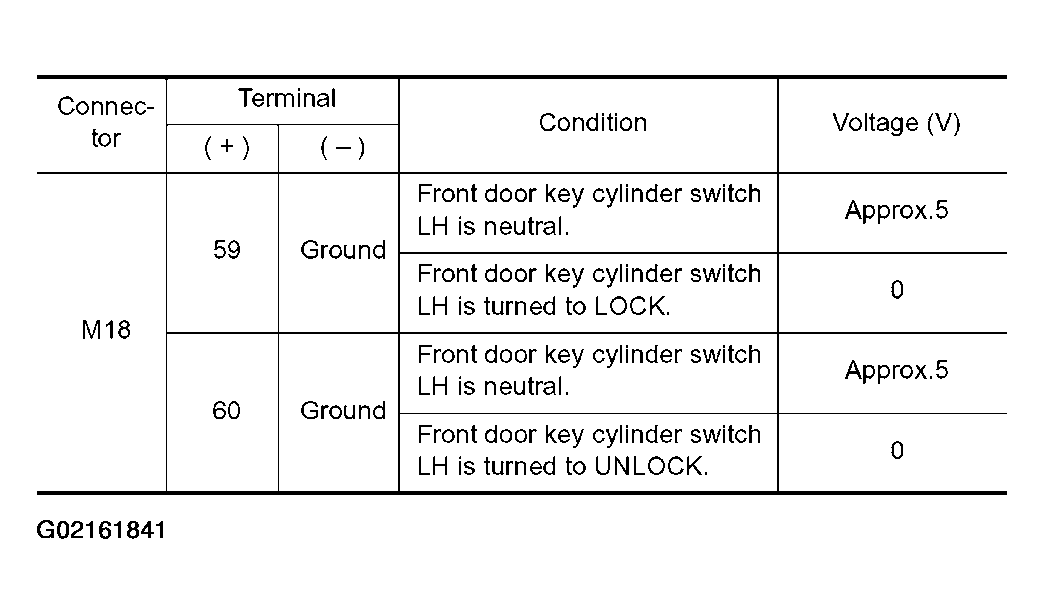

Fig 2: Checking Door Key Cylinder Switch LH Signal Without Consult-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

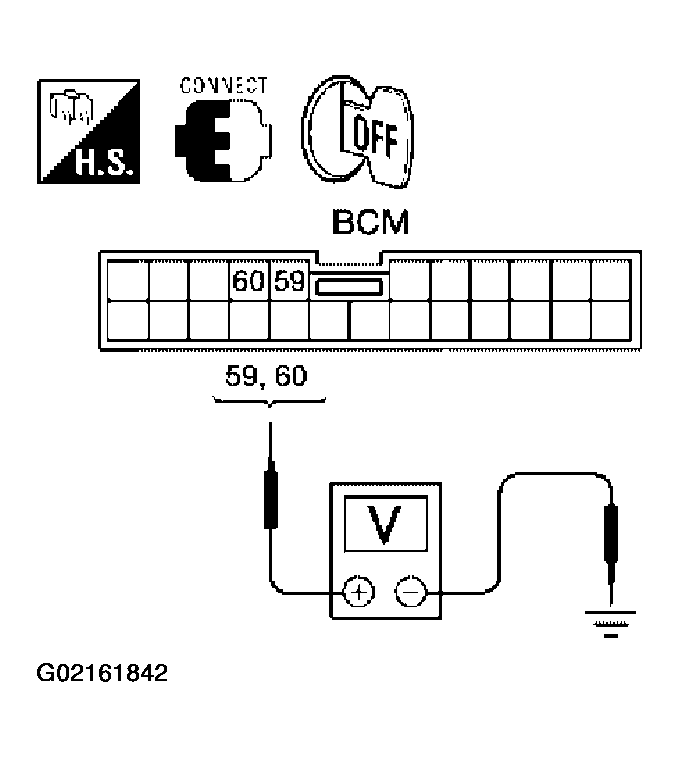

Fig 3: Checking Door Key Cylinder Switch LH Signal Without Consult-II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?
1. OK: System is OK.
2. NG: GO TO 2.
CHECK FRONT DOOR KEY CYLINDER SWITCH LH GROUND HARNESS
Check continuity between front door key cylinder switch LH connector D50 terminal 3 (B) and body ground.

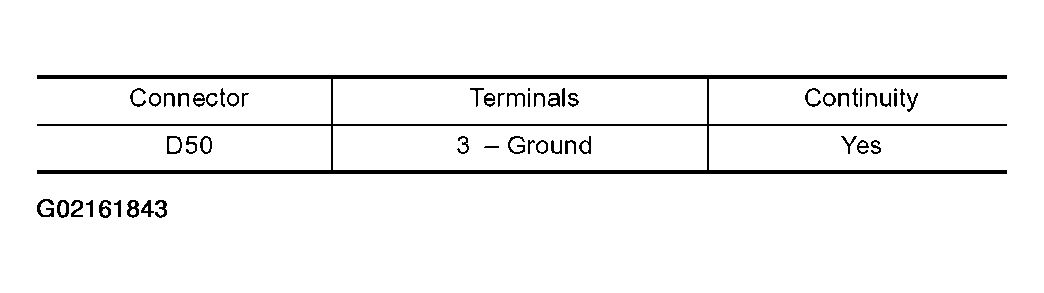

Fig 4: Checking Front Door Key Cylinder Switch LH Ground Harness (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

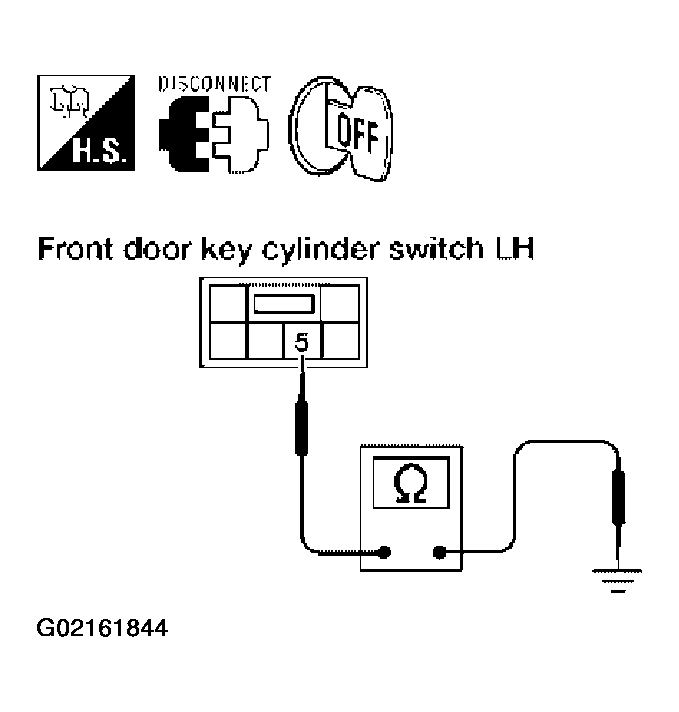

Fig 5: Checking Front Door Key Cylinder Switch LH Ground Harness (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?
1. OK: GO TO 3.
2. NG: Repair or replace harness.
CHECK DOOR KEY CYLINDER SWITCH LH
Check continuity between door key cylinder switch LH connector terminals.

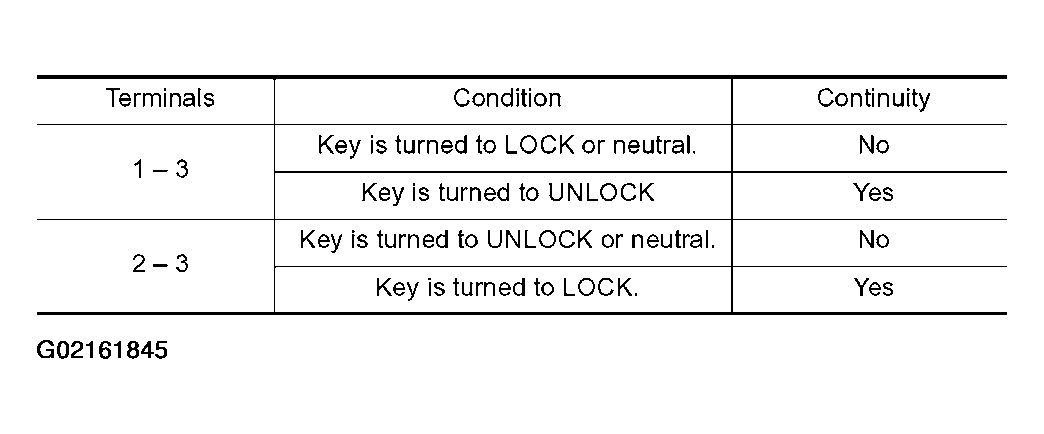

Fig 6: Checking Door Key Cylinder Switch LH (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

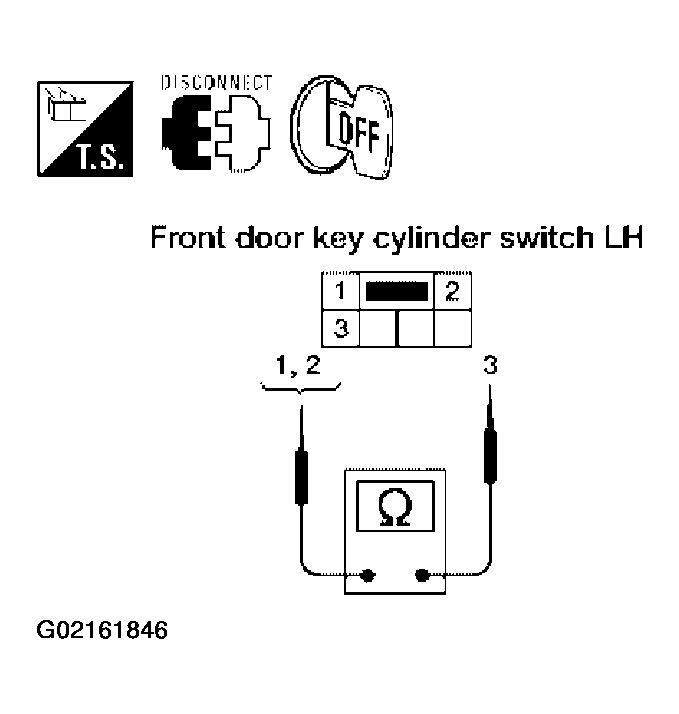

Fig 7: Checking Door Key Cylinder Switch LH (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?
1. OK: Repair or replace harness.
2. NG: Replace front door key cylinder switch LH.
