Removal Of Seat Belt Retractor

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adjuster cover on the seat belt anchor.
    NOTE: Insert a screwdriver wound with cloth into the slot of the release button to disengage the tab and remove the release button.
  2. Remove the anchor bolt.
  3. Slide up outer anchor cover, and remove the anchor bolt.
  4. Remove the center pillar upper/lower garnish. Refer to "REMOVAL AND INSTALLATION ".

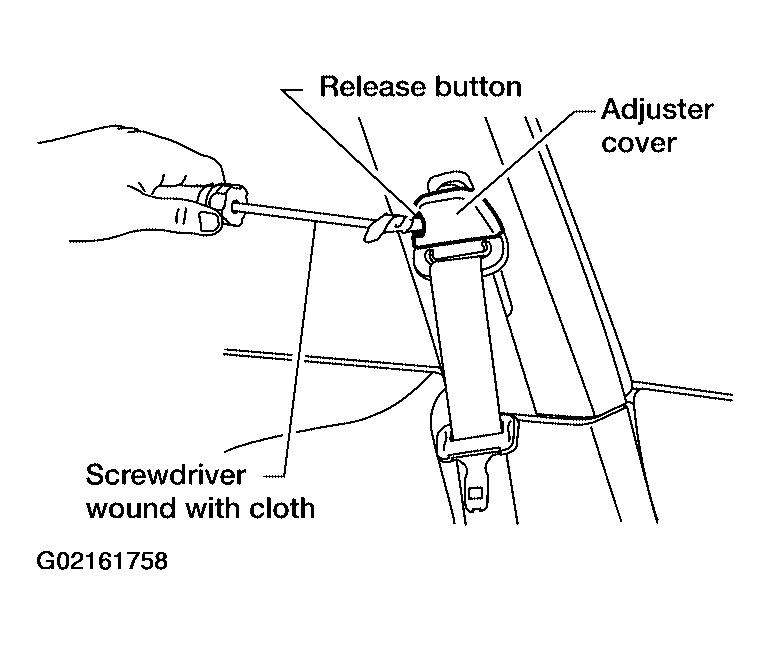

    Fig 1: Inserting Screwdriver Wound With Cloth Into Slot Of Release Button
    G02161758Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect the seat belt pre-tensioner connector.
  6. Remove the seat belt pre-tensioner retractor fixing screw and anchor bolt, and then remove the seat belt retractor.

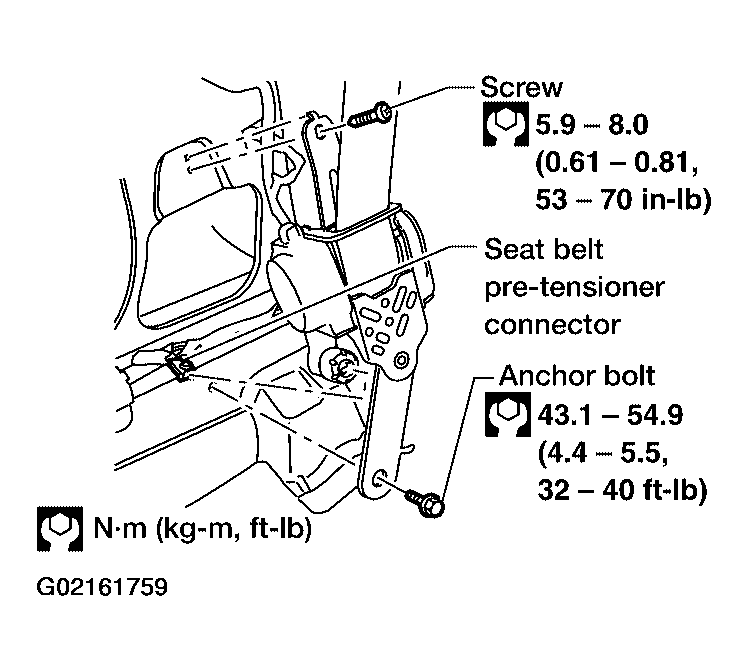

    Fig 2: Removing Seat Belt Pre-Tensioner Retractor Fixing Screw And Anchor Bolt
    G02161759Courtesy of NISSAN MOTOR CO., U.S.A.
