Checking Steering Wheel Turning Force
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Park vehicle on a level, dry surface and set parking brake.
- Start engine.
- Bring power steering fluid up to adequate operating temperature. Make sure the fluid temperature is approximately 60 - 80°C (140 - 176°F).
Tires need to be inflated to normal pressure.

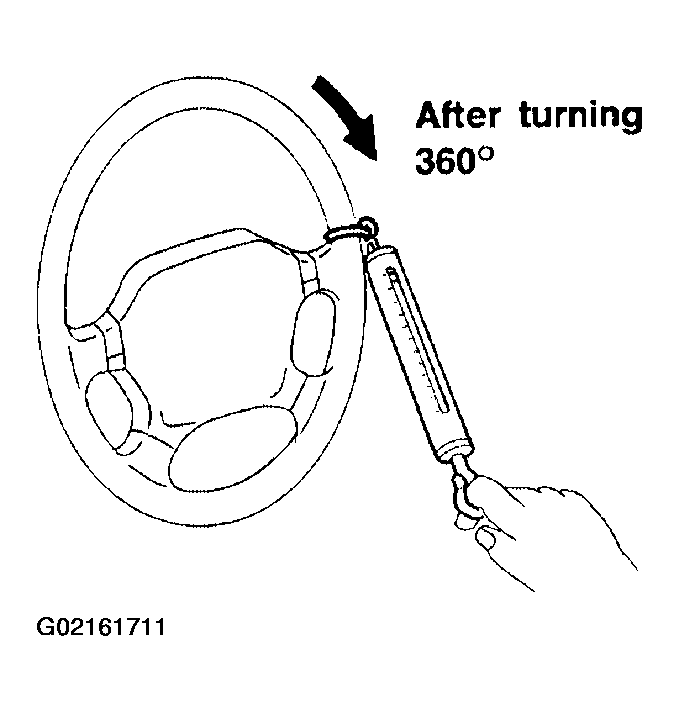

- Check steering wheel turning force when steering wheel has been turned 360° from the neutral position.
Steering wheel turning: 39 N (4 kg.f, 9 lb.f) or less force
- If steering wheel turning force is out of specification, check rack sliding force. Refer to CHECKING RACK SLIDING FORCE .
- If rack sliding force is not within specifications, adjust rack sliding force. Refer to ADJUSTMENT FOR RACK SLIDING FORCE .
- If rack sliding force is OK, inspect steering column. Refer to INSPECTION .
