Checking Steering Wheel Play

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With wheels in a straight-ahead position, check steering wheel play.
Steering wheel play: 35 mm (1.38 in) or less
If it is not within specification, check the following for looseness or worn components:
1. Steering gear assembly
2. Steering column
3. Front suspension and axle
4. Check steering system for looseness while moving the steering wheel in all directions.

Axial end play: 0 mm (0 in)

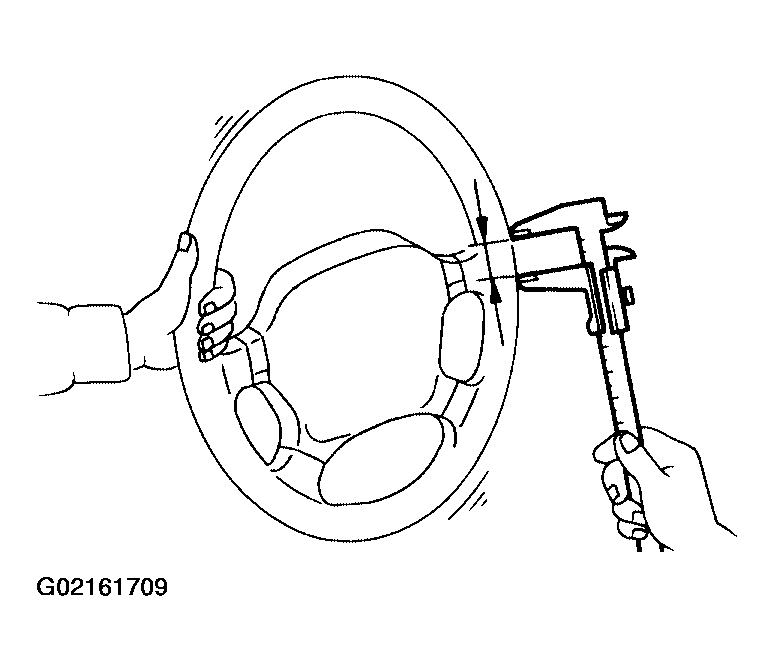

Fig 1: Checking Steering Wheel Play

Courtesy of NISSAN MOTOR CO., U.S.A.
