Removal And Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

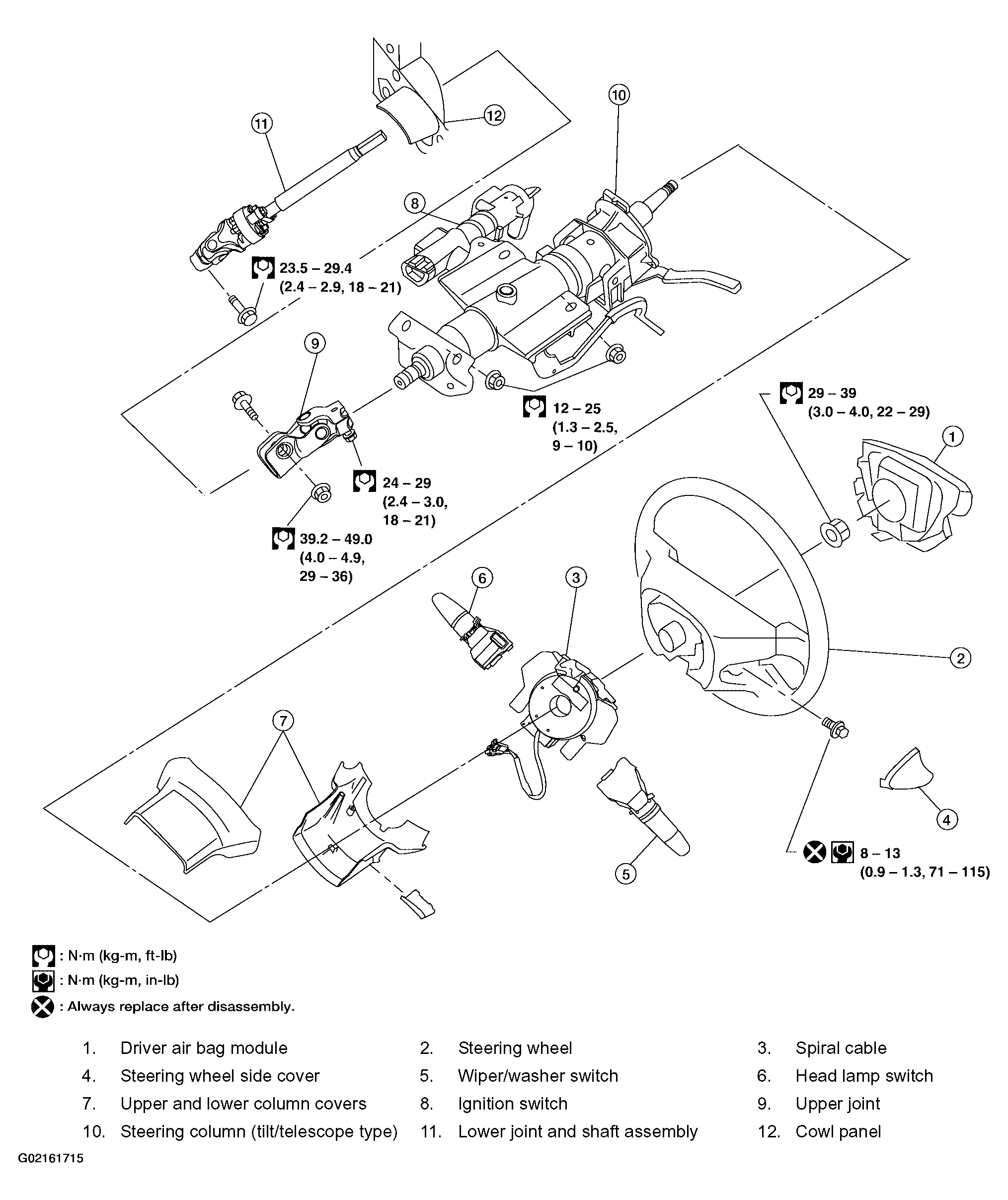

Fig 1: Exploded View Of Steering Column

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

The rotation of the spiral cable (SRS air bag component part) is limited. If the steering gear must be removed, set the front wheels in the straight-ahead direction. Do not rotate the steering column while the steering gear is removed.
Remove the steering wheel before disconnecting the coupling joint to avoid damaging the spiral cable.
When installing the steering column, finger-tighten all of the lower bracket and joint retaining bolts; then tighten them to specification. Do not apply undue stress to the steering column.
When installing steering column mounting nuts, first tighten the lower steering column mounting nuts and then the upper mounting nuts to specification.
Align slit of the coupling joint with projection on dust cover. Insert the joint until surface A contacts surface B. See Fig 2.

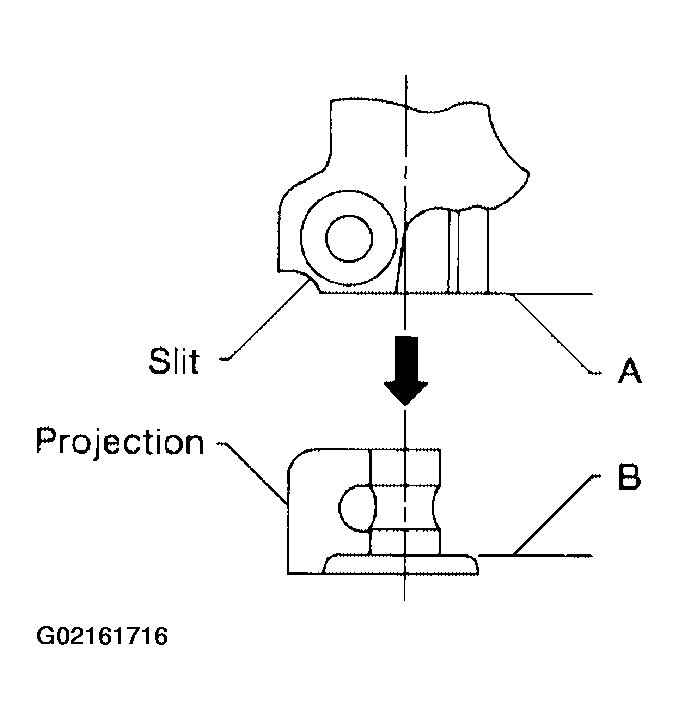

Fig 2: Aligning Coupling Joint With Dust Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
After installation, turn steering wheel to make sure it moves smoothly. Ensure the number of turns are the same from the straight-forward position to left and right locks. Be sure that the steering wheel is in a neutral position when driving straight ahead.
