Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The rotation of the driver air bag spiral cable is limited. If the steering gear must be removed, set the front wheels in the straight-ahead direction. Do not rotate the steering column while the steering gear is removed.
  • Remove the steering wheel and spiral cable before removing the steering lower joint to avoid damaging the SRS spiral cable.
  1. Remove the two front tires with power tool.
  2. Disconnect the outer tie-rod ends using tool.
  3. Disconnect the outer swaybar ends with power tool.

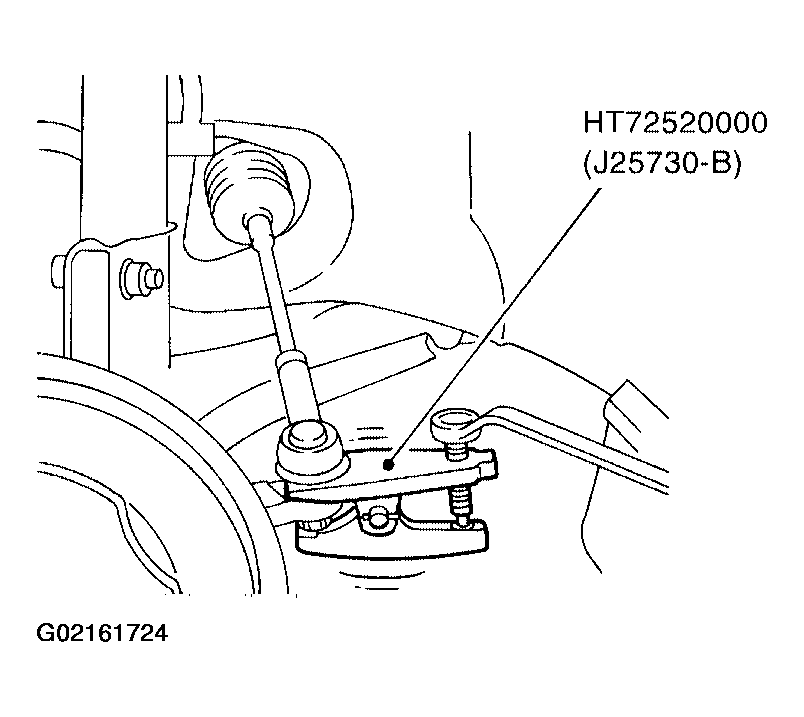

    Fig 1: Seperating Outer Tie-Rod End
    G02161724Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the swaybar rear bolts and loosen the front bolts with power tool.

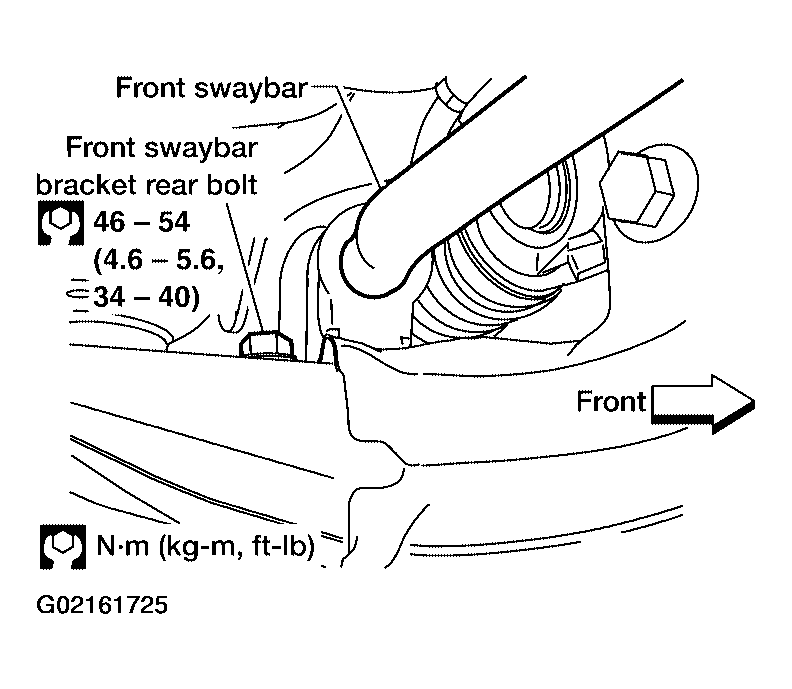

    Fig 2: Identifying Front Swaybar Bracket Rear Bolts
    G02161725Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the lower joint pinch bolt.

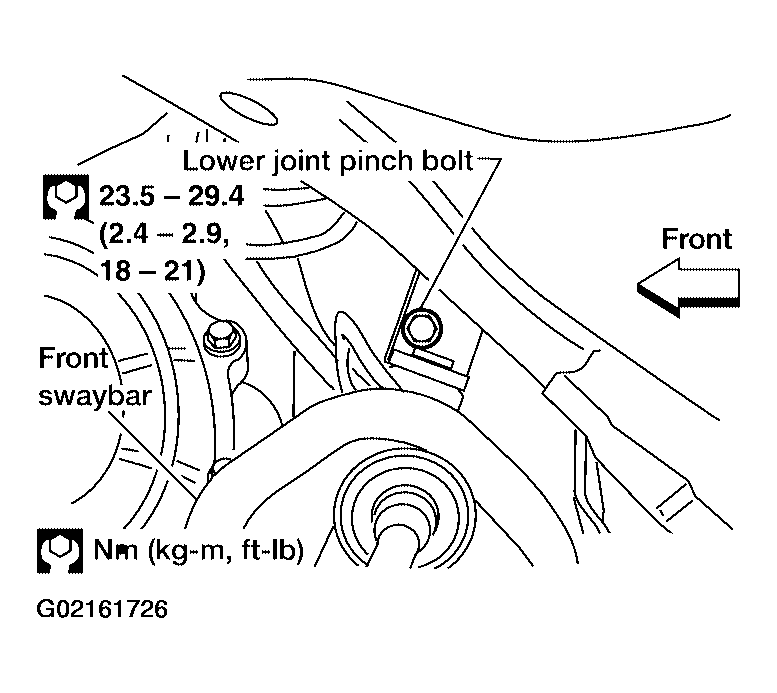

    Fig 3: Identifying Lower Joint Pinch Bolt
    G02161726Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disconnect the power steering high and low pressure lines from the steering gear.
  7. Reposition the swaybar up and out of the way.
  8. Remove the two steering gear mounting bolts.
    • Do not remove the steering gear mounting bracket from the gear housing.
  9. Remove the power steering gear and linkage assembly.

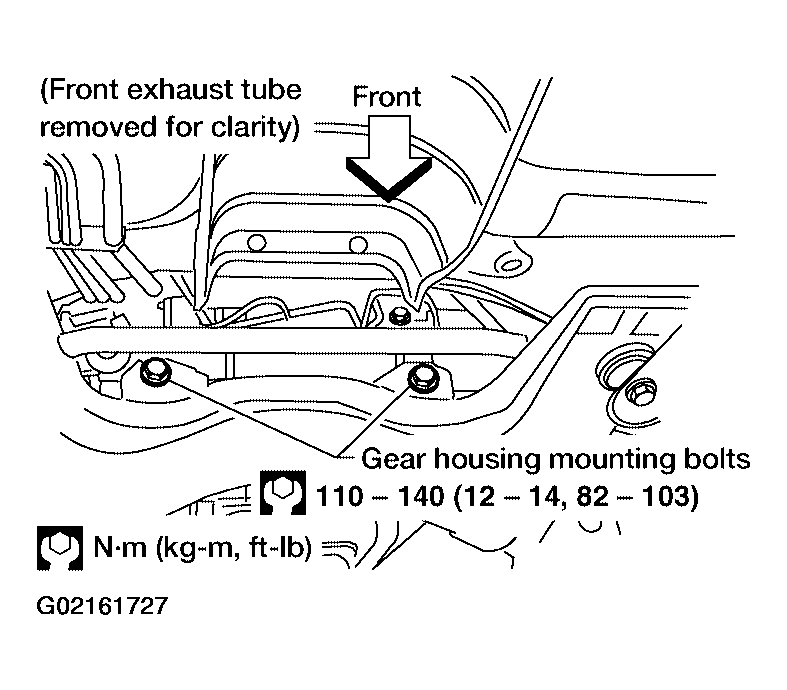

    Fig 4: Identifying Steering Gear Mounting Bolts
    G02161727Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Installation is in the reverse order of removal.
    • Install pipe connector.
    • Use the specification tightening torque when installing the high-pressure and low-pressure pipe connections. See Fig 5. Excessive tightening will damage threads of connection or O-ring.

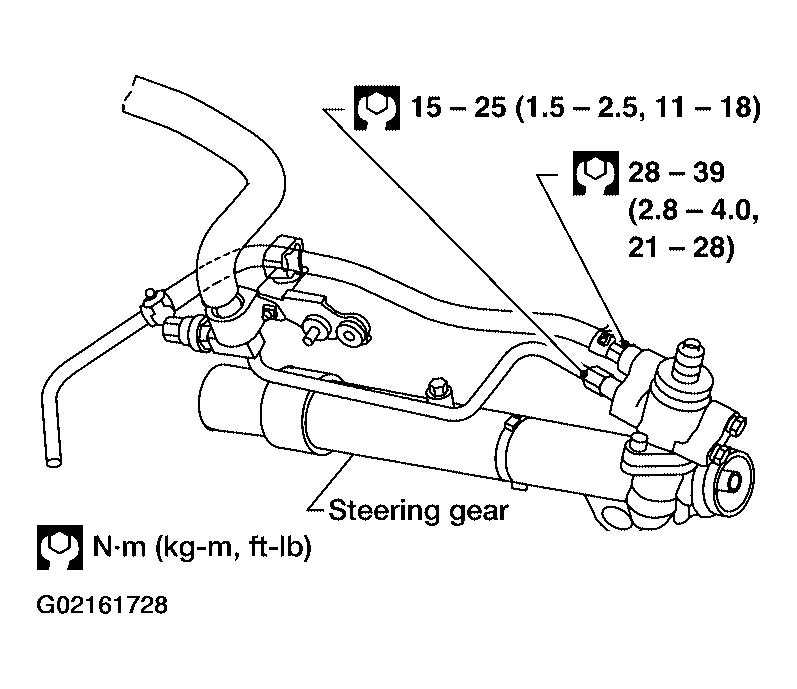

      Fig 5: Torque Specifications For High And Low-Pressure Pipe Connections
      G02161728Courtesy of NISSAN MOTOR CO., U.S.A.
    • The O-ring in low-pressure pipe connector is larger than that in high-pressure connector. Take care to install the proper O-ring.
    • Initially, tighten nut on tie-rod outer socket and knuckle arm to specification. Then tighten further to align nut groove with first pin hole so that the cotter pin can be installed.

    Outer tie rod grooved nut: 29 - 39 N.m (3 - 4 kg.m, 22 - 29 ft.lb)

    CAUTION: Tightening torque must not exceed 49 N.m (5 kg.m, 36 ft.lb).

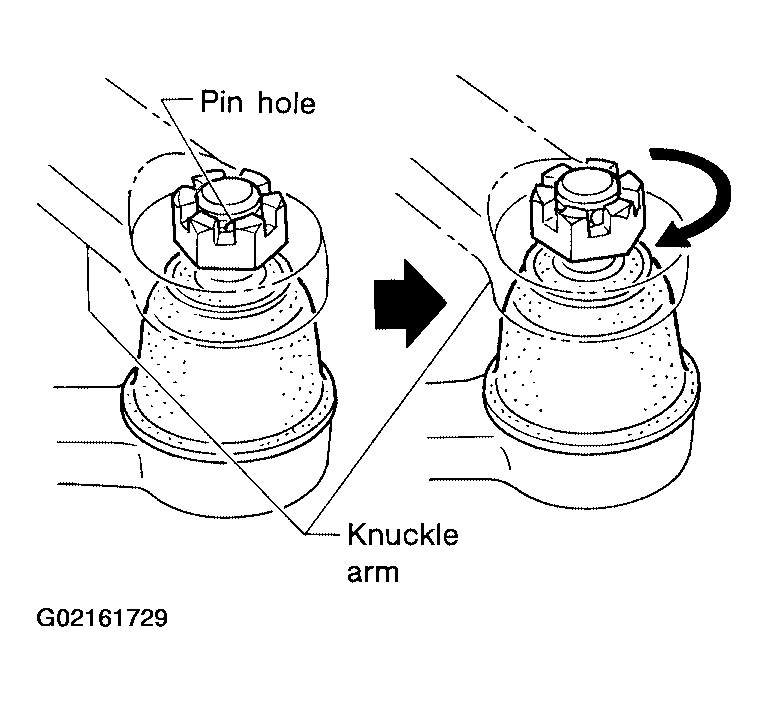

    Fig 6: Aligning Nut Groove With Cotter Pin Hole
    G02161729Courtesy of NISSAN MOTOR CO., U.S.A.
