Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner tie-rods.
Install the outer tie-rods to the specified length and tighten the outer socket lock nut. Refer to STEERING GEAR AND LINKAGE .
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Outer socket lock nut : 37 - 46 N.m (3.8 - 4.7 kg.m, 27 - 34ft.lb)

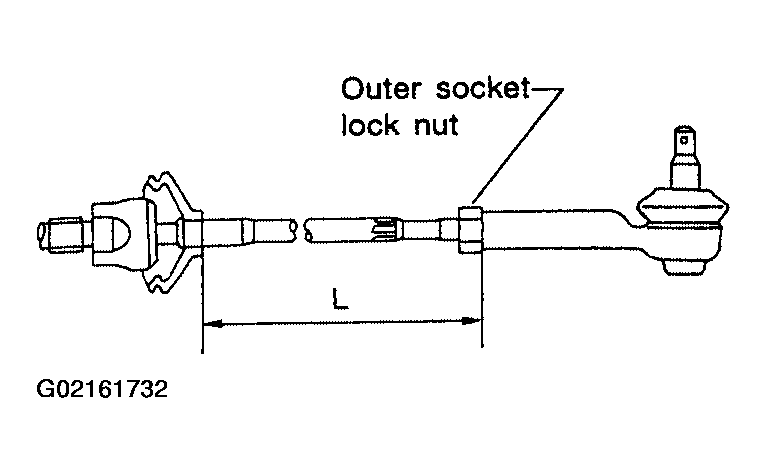

Fig 1: Tightening Outer Socket Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure rack stroke. Refer to STEERING GEAR AND LINKAGE .

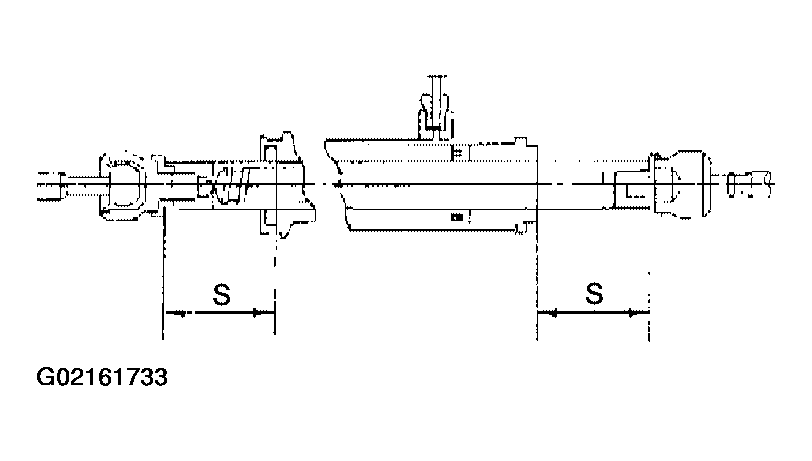

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

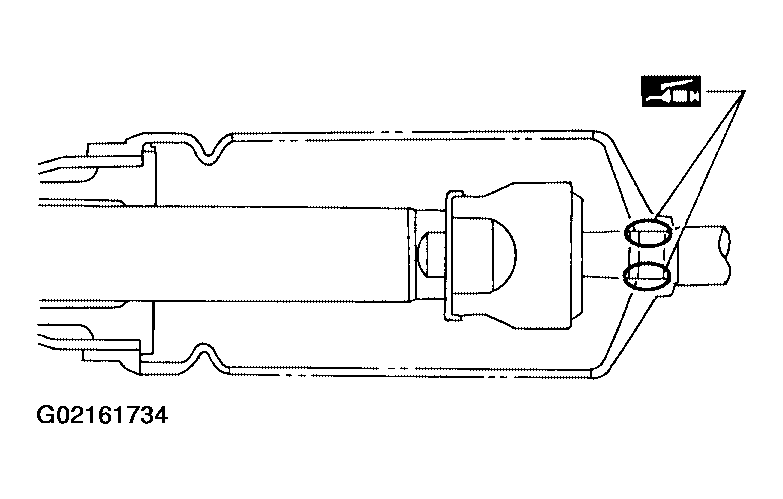

Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and crimp securely.

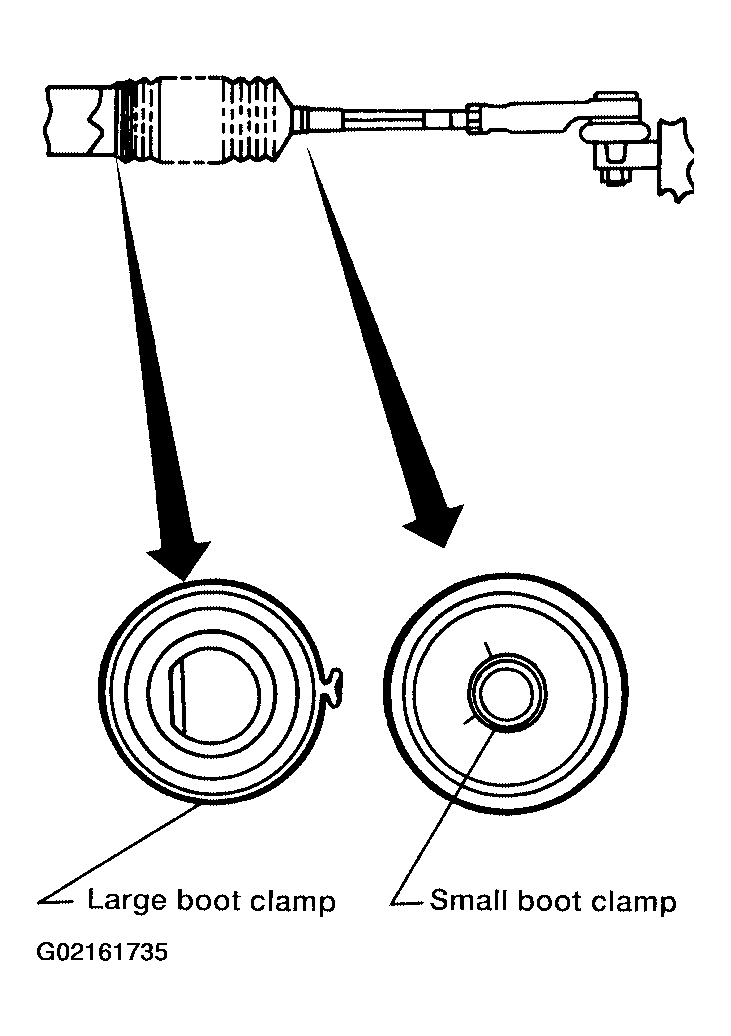

Fig 4: Installing Boot Clamps & Crimpimg Securely

Courtesy of NISSAN MOTOR CO., U.S.A.
