Checking Fluid Level

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check fluid level, referring to the scale on reservoir tank.

Use HOT range for fluid temperatures of 50 - 80°C (122 - 176°F).

Use COLD range for fluid temperatures of 0 - 30°C (32 - 86°F).

CAUTION:

Do not overfill.
Recommended fluid is Genuine NISSAN PSF II or equivalent.

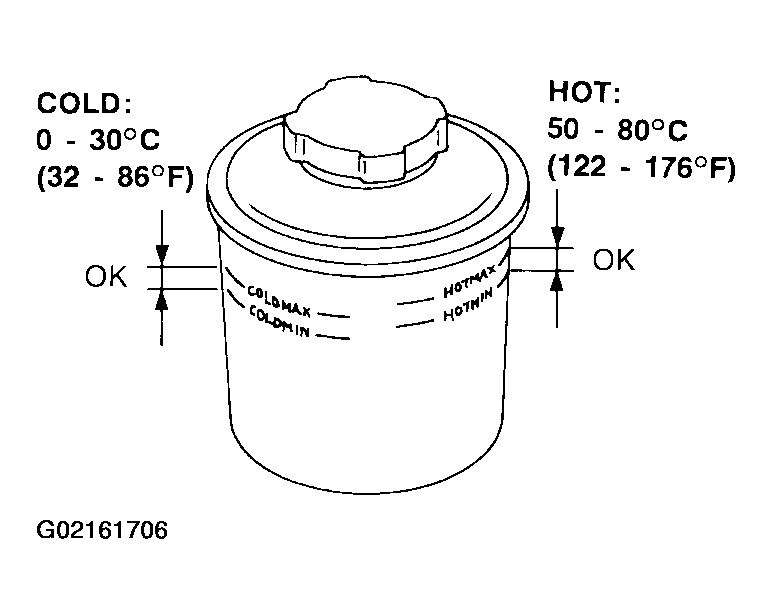

Fig 1: Checking Fluid Level, Referring To Scale On Reservoir Tank

Courtesy of NISSAN MOTOR CO., U.S.A.
