WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

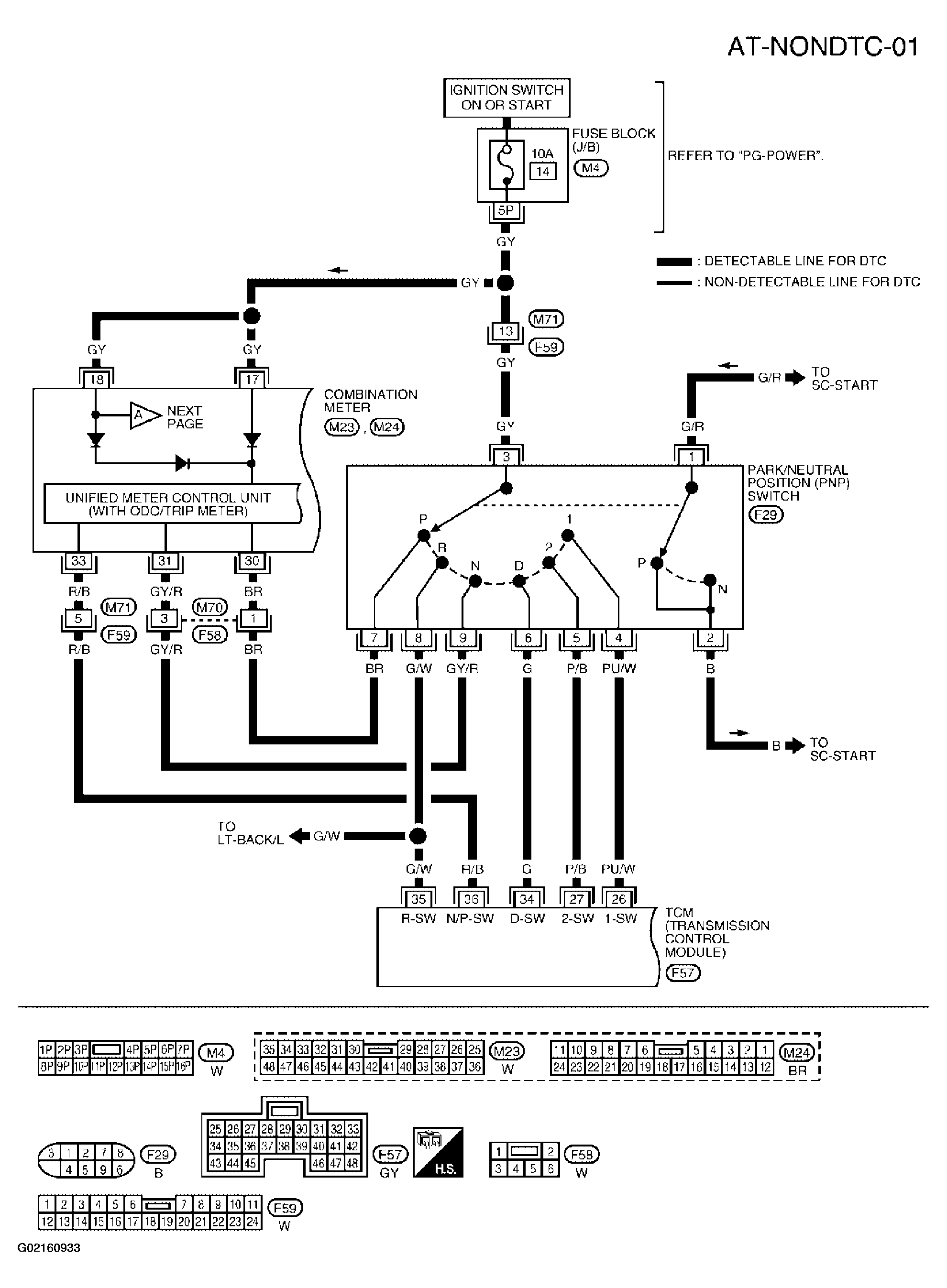

Fig 1: Wiring Diagram - AT - NONDTC 01
Courtesy of NISSAN MOTOR CO., U.S.A.

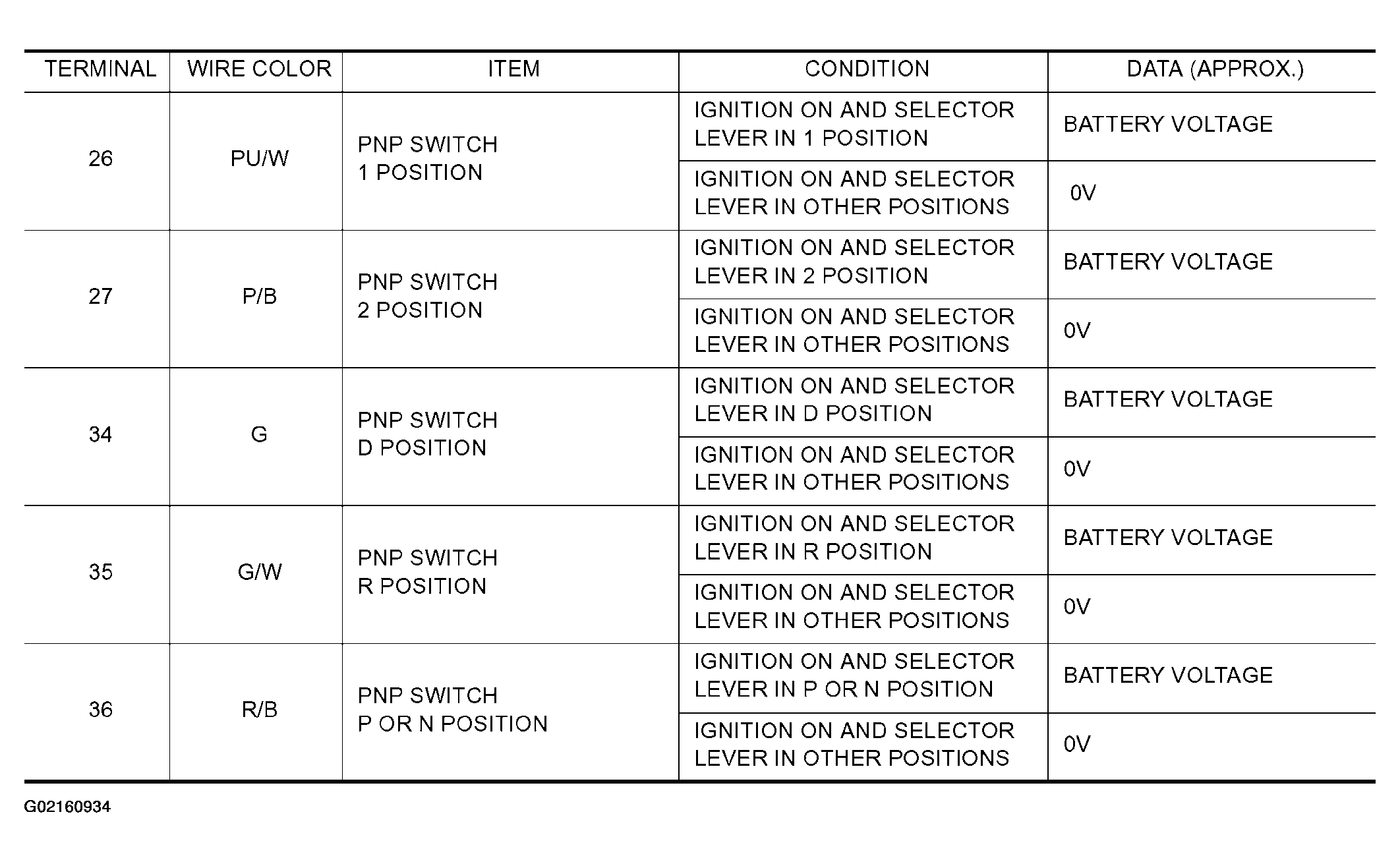

Fig 2: TCM Terminals And Reference Value Chart (- AT - NONDTC 01)
Courtesy of NISSAN MOTOR CO., U.S.A.

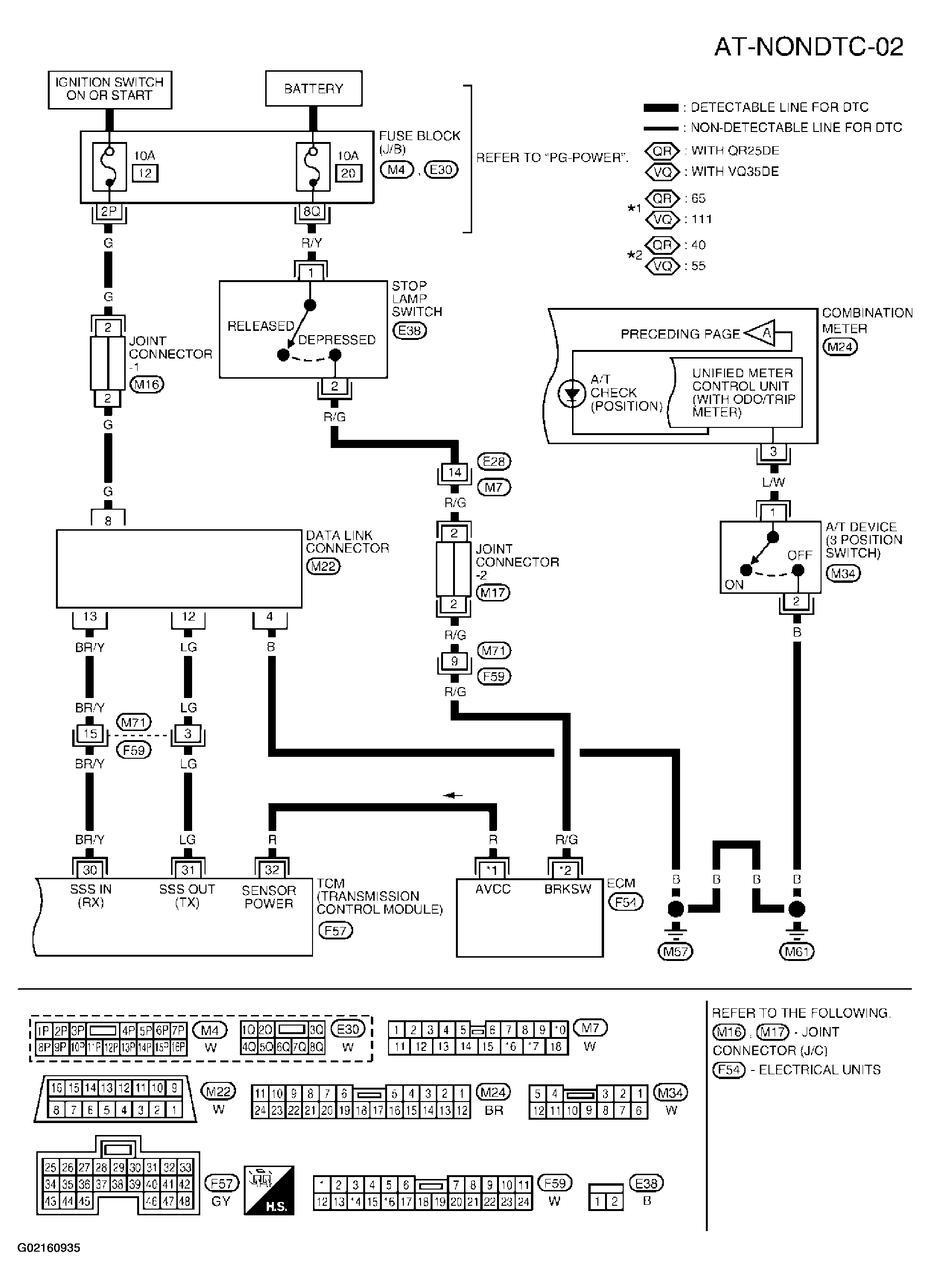

Fig 3: Wiring Diagram - AT - NONDTC 02
Courtesy of NISSAN MOTOR CO., U.S.A.

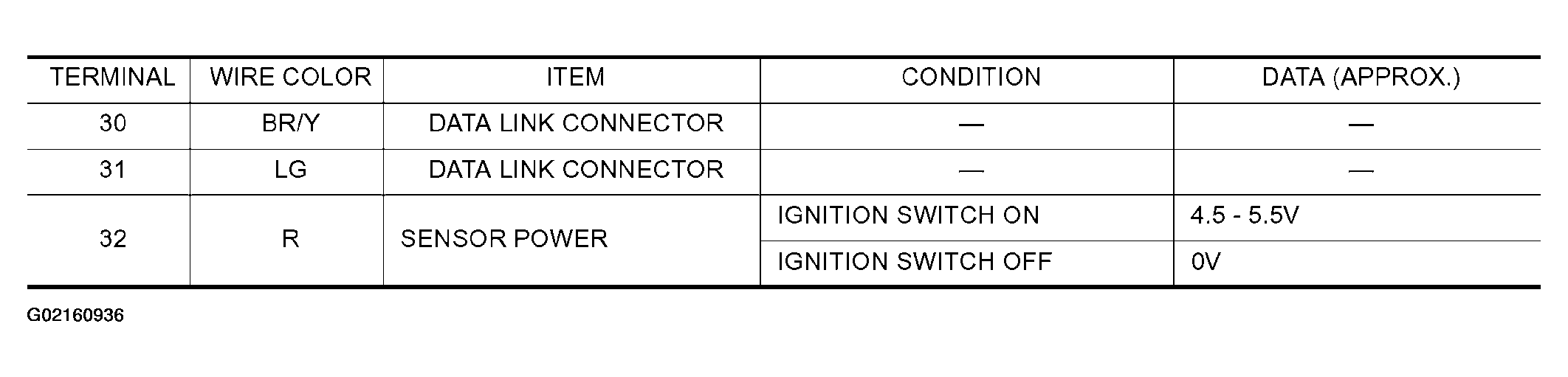

Fig 4: TCM Terminals And Reference Value Chart (- AT - NONDTC 01)
