5. Large Shock. N --> R Position

SYMPTOM:

There is large shock when changing from N to R position.

1. CHECK SELF-DIAGNOSTIC RESULTS

   Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor [accelerator pedal position (APP) sensor] circuit?

   Yes or No

   1. Yes: GO TO 2.
   2. No: GO TO  3.

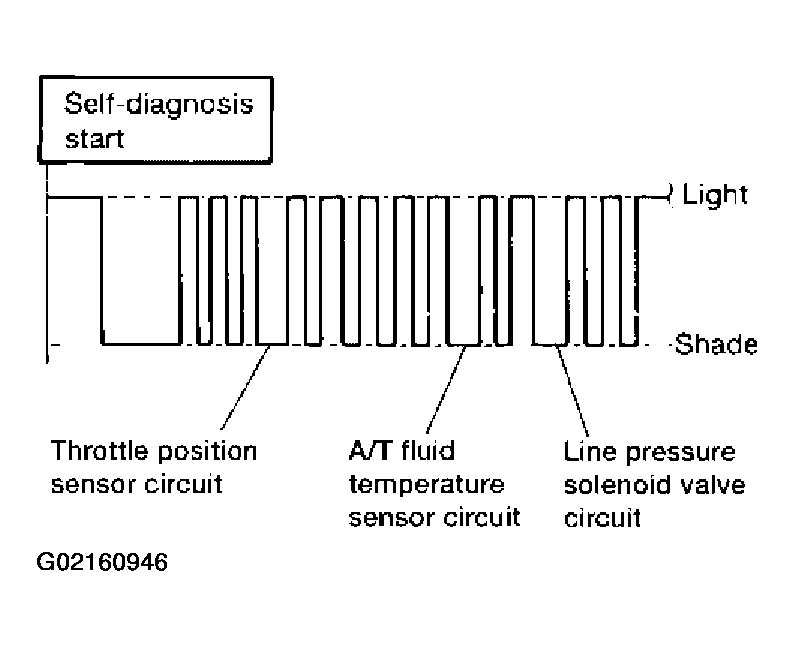

   Fig 1: Checking Self-Diagnostic Results (Large Shock. N-R Position)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK DAMAGED CIRCUIT

   Check damaged circuit.

   1. : Refer to "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT ", "DTC P0745 LINE PRESSURE SOLENOID VALVE " or "DTC P1705 THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] ".
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to "DTC P0122 OR DTC P0123: THROTTLE POSITION SENSOR " and "DTC P2122 OR DTC P2123: APP SENSOR ".

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

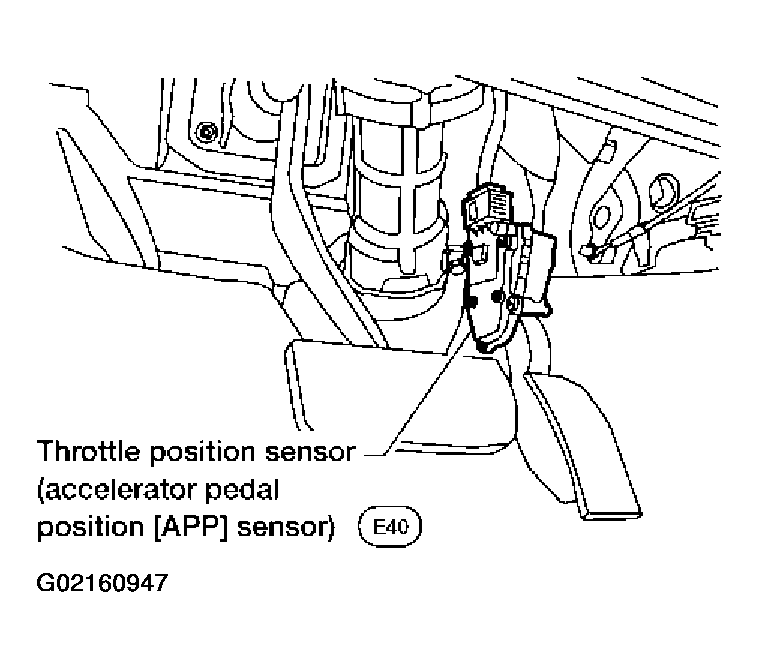

   Fig 2: Identifying Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK LINE PRESSURE

   Check line pressure at idle with selector lever in D position. Refer to "LINE PRESSURE TEST ".

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
   Fig 3: Identifying Line Pressure At Idle With Selector Lever In D Position

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
   • Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
   • Line pressure solenoid valve

   OK or NG

   1. OK: GO TO 6.
   2. NG: Repair or replace damaged parts.
6. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 7.
7. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
