4. In N Position, Vehicle Moves

SYMPTOM:

Vehicle moves forward or backward when selecting N position.

1. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to park/neutral position (PNP) switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: GO TO 2.

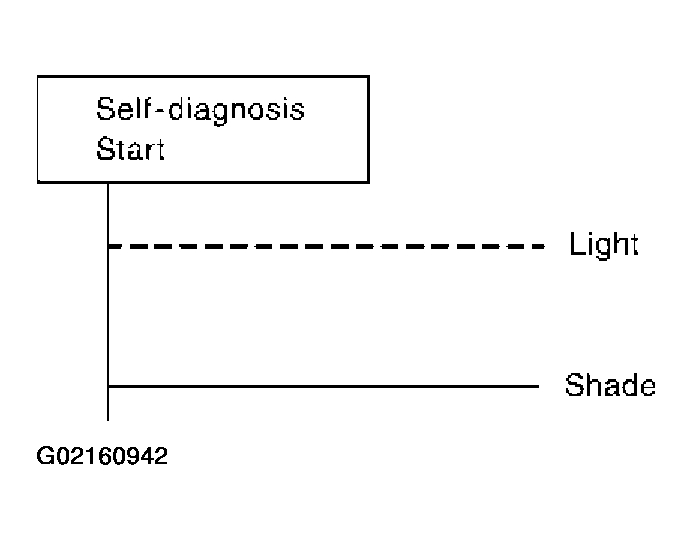

   Fig 1: Checking Park/Neutral Position (PNP) Switch Circuit Without Consult II

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK CONTROL LINKAGE

   Check control cable. Refer to "CONTROL CABLE ".

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.
3. ADJUST CONTROL CABLE

   Adjust control cable.

   1. : Refer to "CONTROL CABLE ADJUSTMENT ".

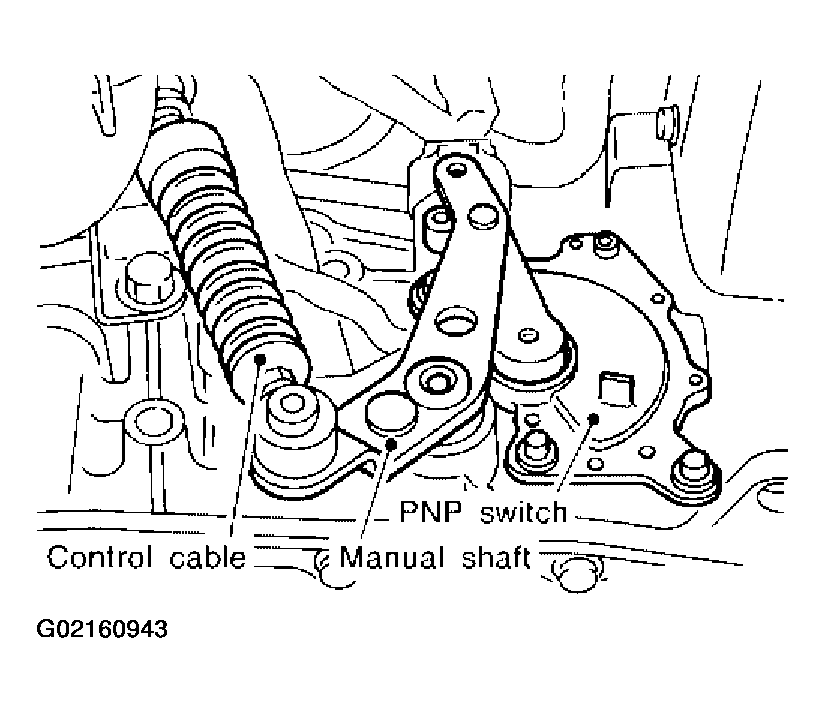

   Fig 2: Identifying Control Cable, Manual Shaft And PNP Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK A/T FLUID LEVEL

   Check A/T fluid level again.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Refill ATF.

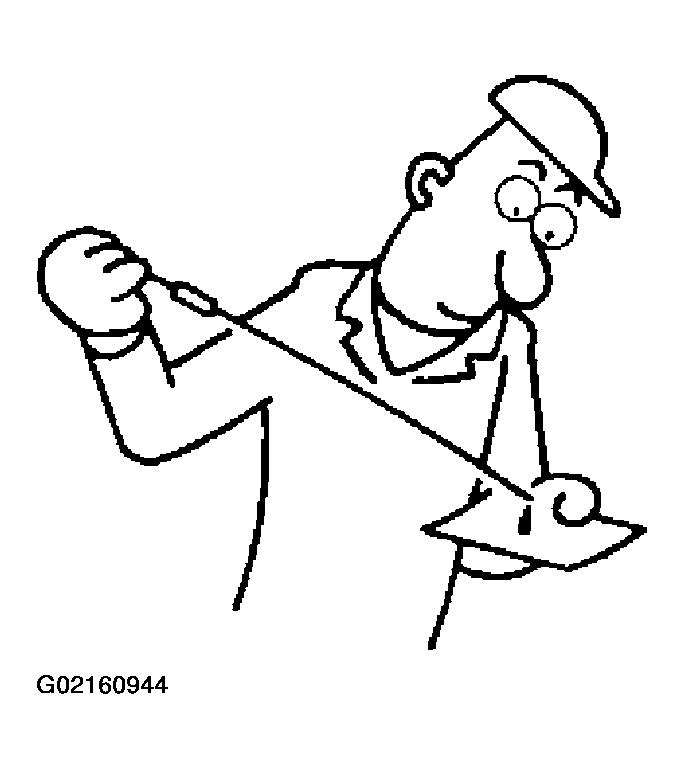

   Fig 3: Checking A/T Fluid Level

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.
   Fig 4: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. DETECT MALFUNCTIONING ITEM
   1. Disassemble A/T.
   2. Check the following items:
   • Forward clutch assembly
   • Overrun clutch assembly
   • Reverse clutch assembly

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
