14. Lock-up Is Not Released

SYMPTOM:

Lock-up is not released when accelerator pedal is released.

1. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to throttle position sensor [accelerator pedal position (APP) sensor] circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to throttle position sensor [accelerator pedal position (APP) sensor] circuit?

   Yes or No

   1. Yes: Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to "DTC P0122 OR DTC P0123: THROTTLE POSITION SENSOR " and "DTC P2122 OR DTC P2123: APP SENSOR ".
   2. No: GO TO 2.

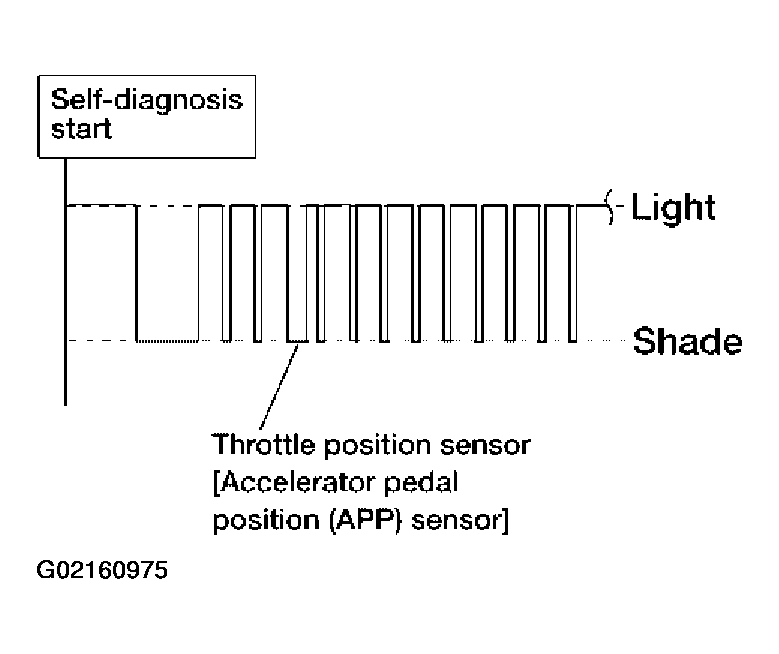

   Fig 1: Checking Self-Diagnostic Results Without Consult II (Lock-Up Is Not Released)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 3.
3. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
