12. A/T Does Not Perform Lock-up

SYMPTOM:

A/T does not perform lock-up at the specified speed.

1. CHECK SELF-DIAGNOSTIC RESULTS

   Does self-diagnosis show damage to torque converter clutch solenoid valve circuit after cruise test?

   Yes or No

   1. Yes: Check torque converter clutch solenoid valve circuit. Refer to "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE ".
   2. No: GO TO 2.

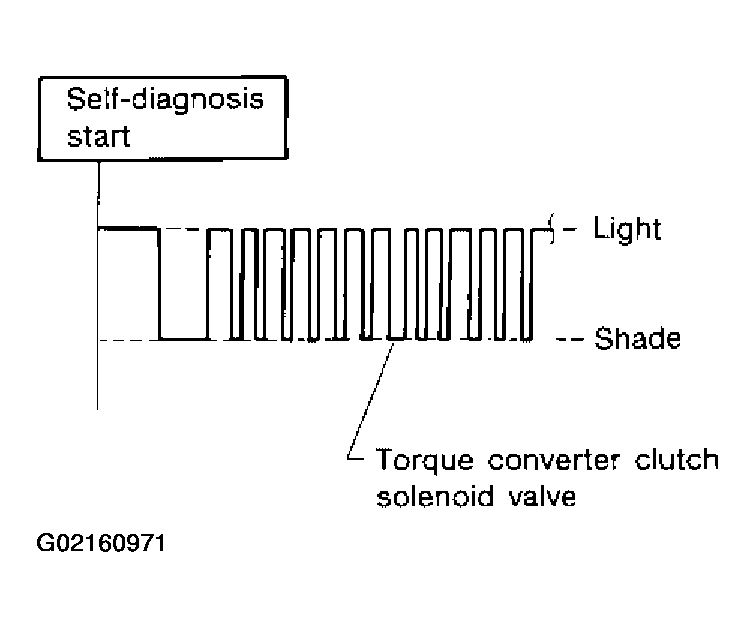

   Fig 1: Checking Self-Diagnostic Results (A/T Does Not Perform Lock-Up)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to "DTC P0122 OR DTC P0123: THROTTLE POSITION SENSOR " and "DTC P2122 OR DTC P2123: APP SENSOR ".

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

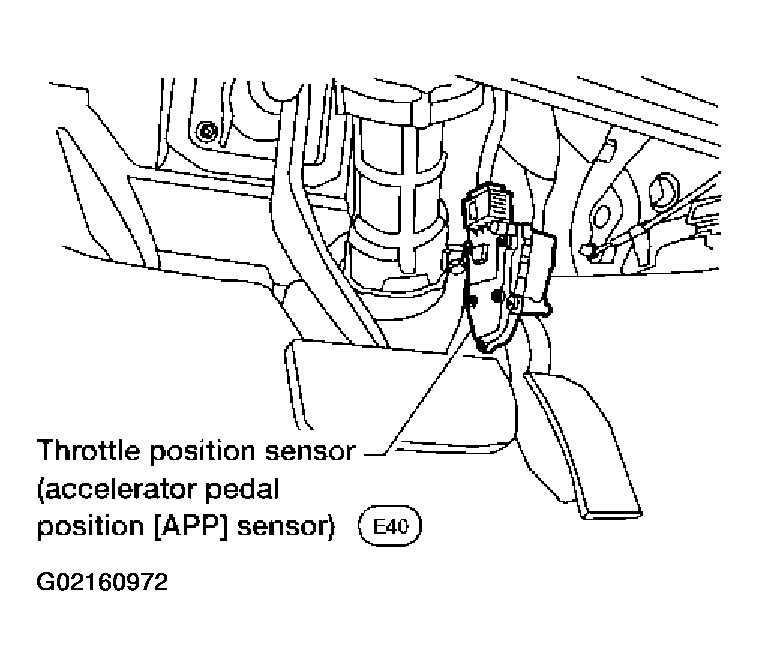

   Fig 2: Identifying Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. DETECT MALFUNCTIONING ITEM
   1. Remove control valve. Refer to " CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check following items:
   • Torque converter clutch control valve
   • Torque converter relief valve
   • Torque converter clutch solenoid valve
   • Pilot valve
   • Pilot filter

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace damaged parts.
4. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 5.
5. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
