Symptom Chart

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection. Perform inspections starting with number one and work up.

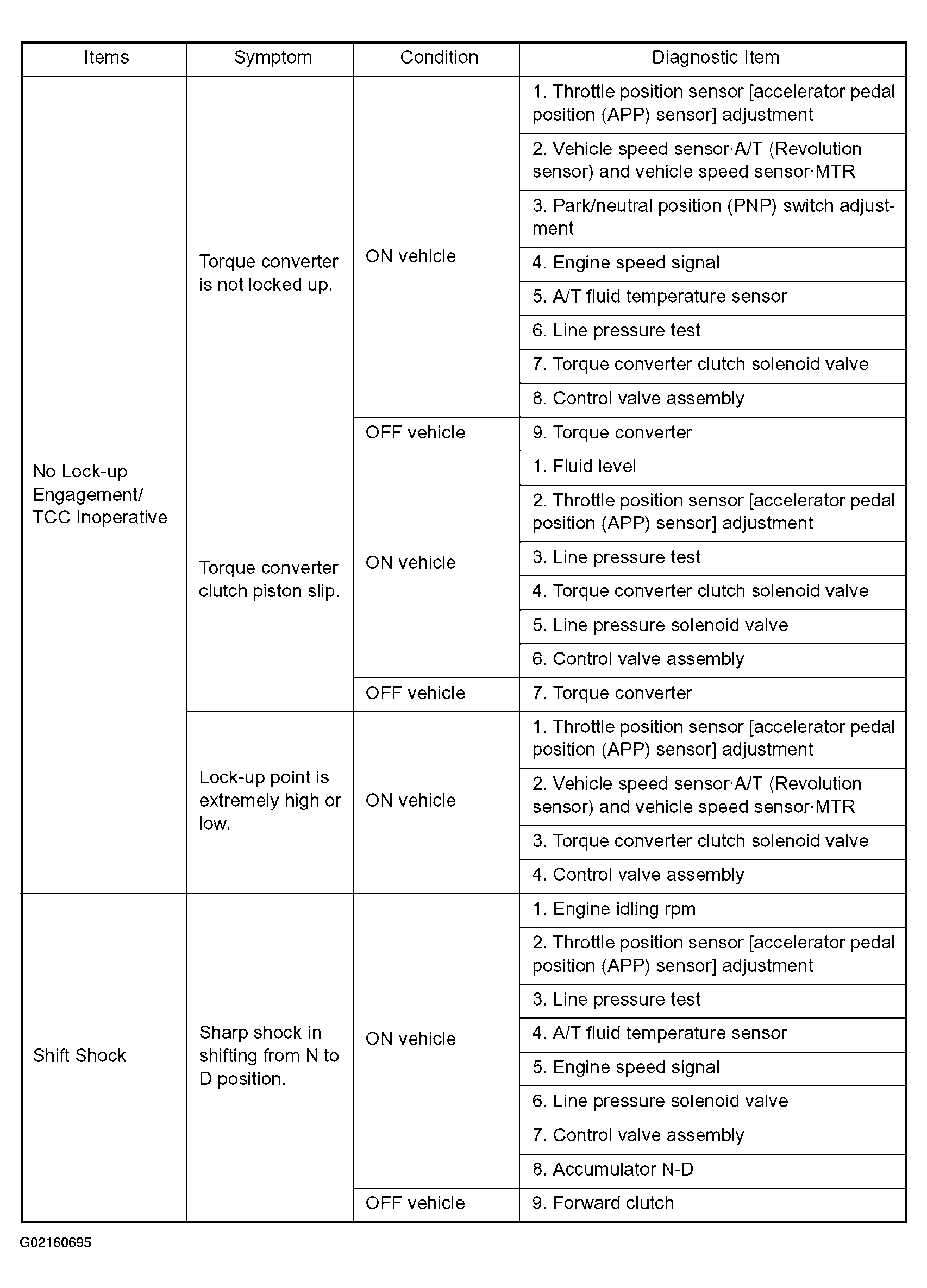

Fig 1: Problem Symptom Chart (1 Of 11)

G02160695

Courtesy of NISSAN MOTOR CO., U.S.A.

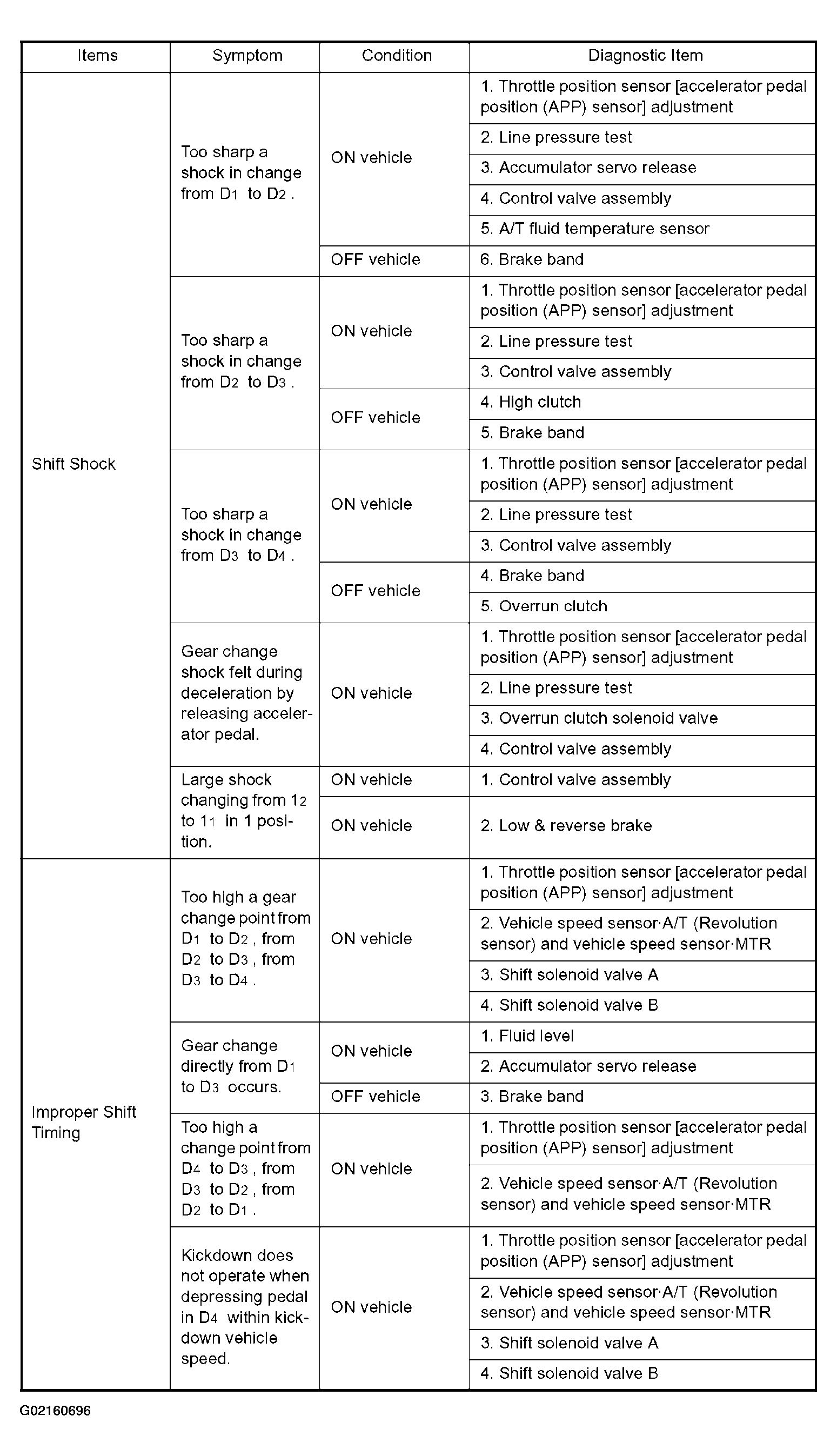

Fig 2: Problem Symptom Chart (2 Of 11)

G02160696

Courtesy of NISSAN MOTOR CO., U.S.A.

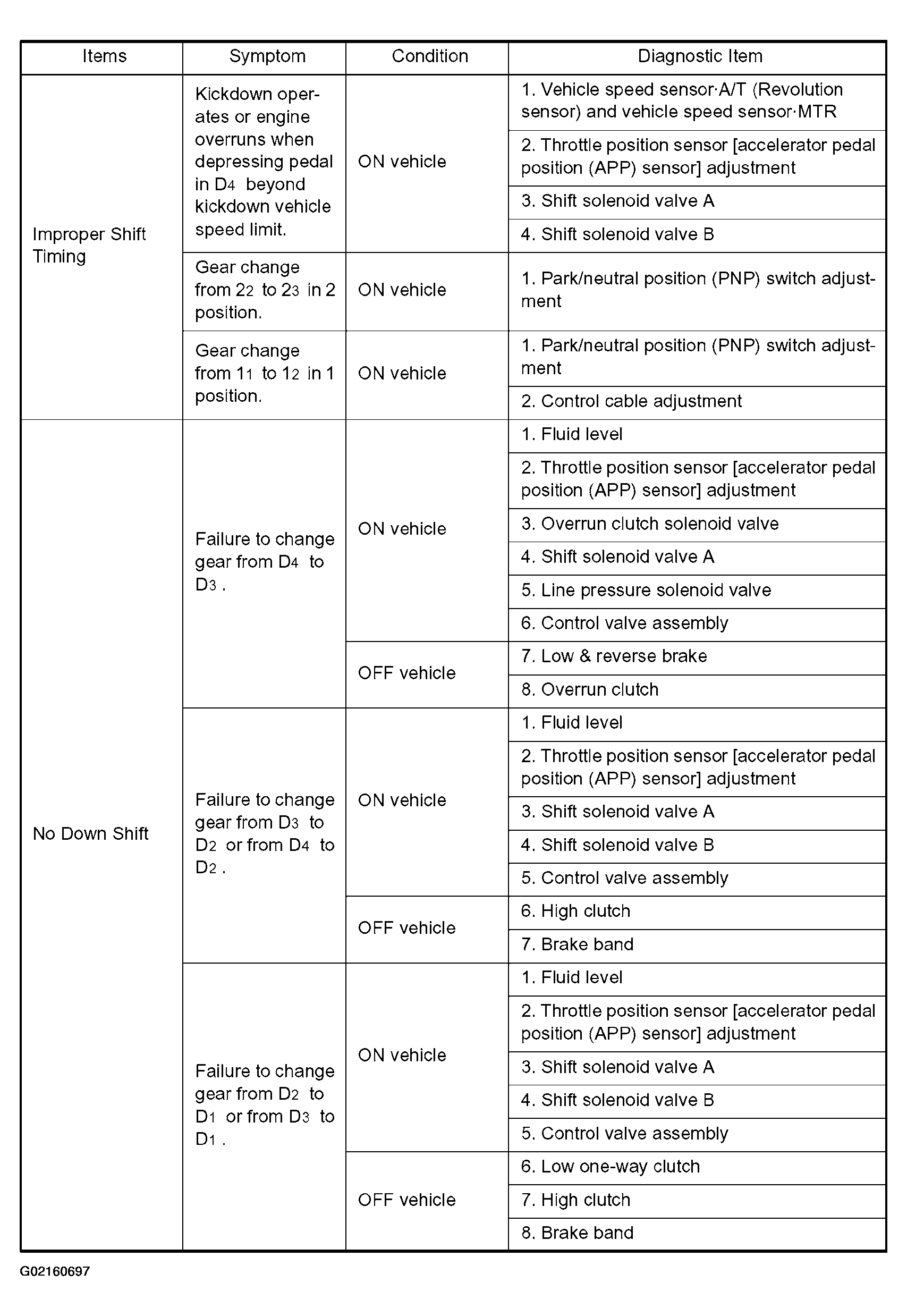

Fig 3: Problem Symptom Chart (3 Of 11)

G02160697

Courtesy of NISSAN MOTOR CO., U.S.A.

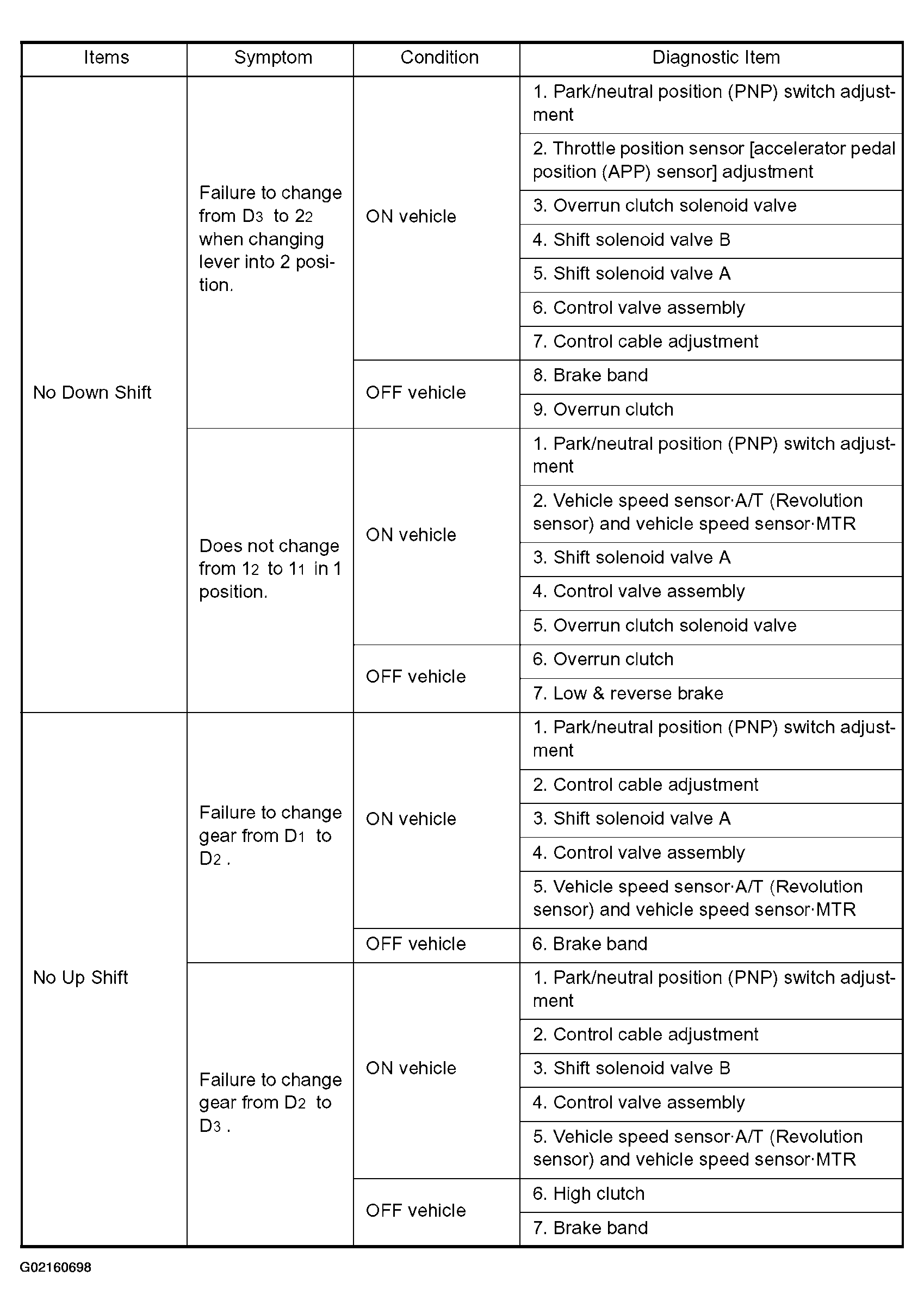

Fig 4: Problem Symptom Chart (4 Of 11)

G02160698

Courtesy of NISSAN MOTOR CO., U.S.A.

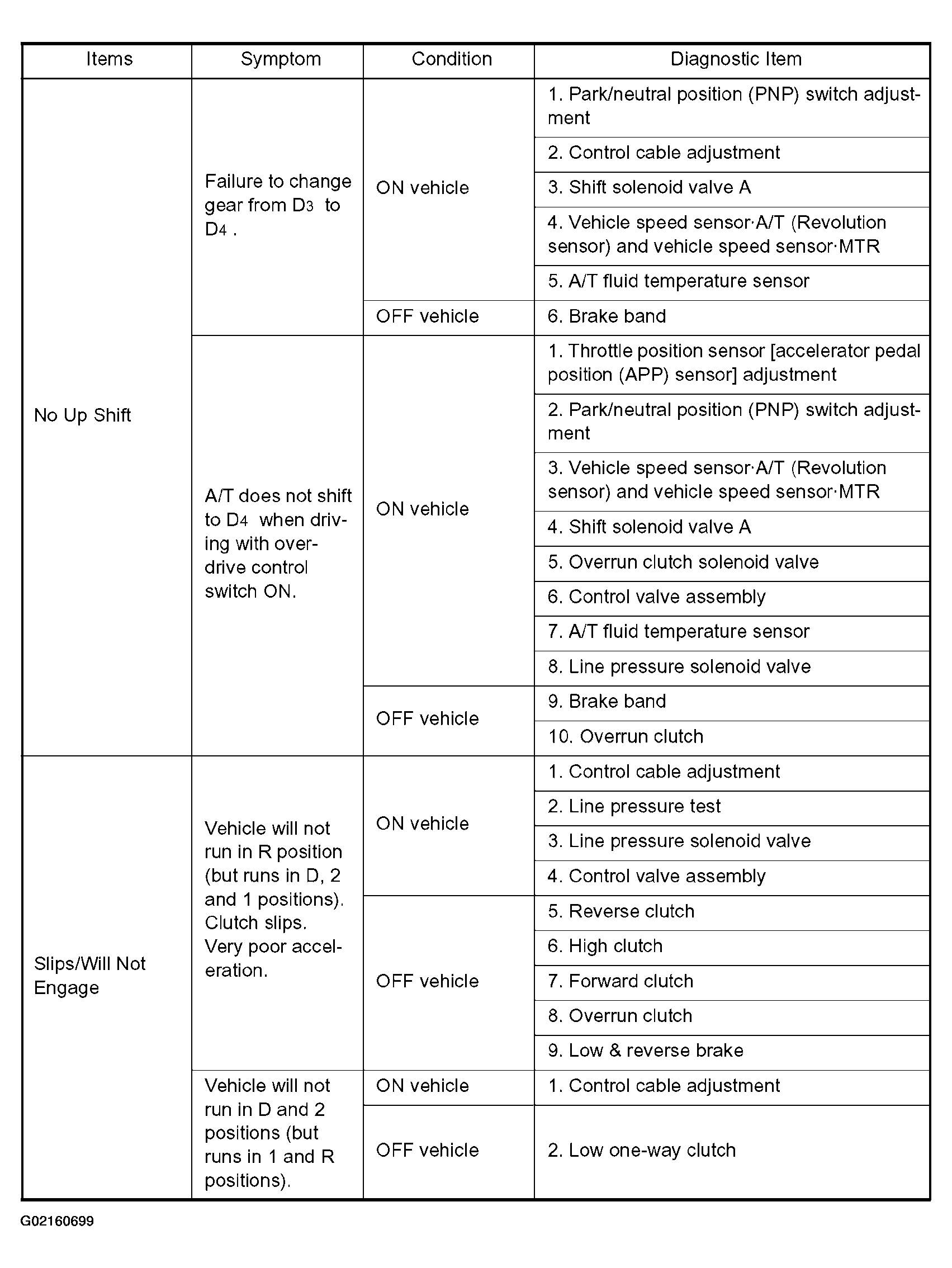

Fig 5: Problem Symptom Chart (5 Of 11)

G02160699

Courtesy of NISSAN MOTOR CO., U.S.A.

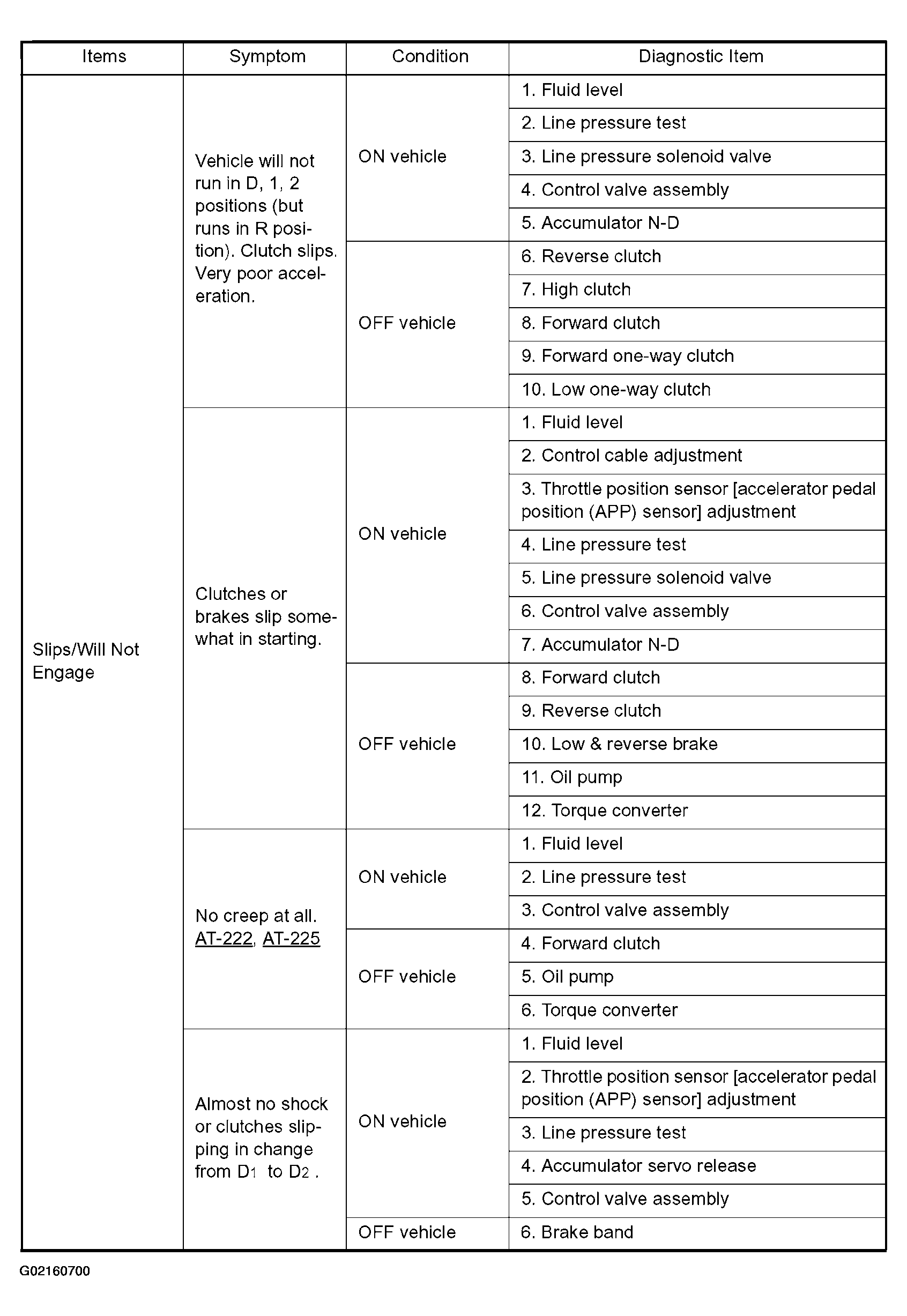

Fig 6: Problem Symptom Chart (6 Of 11)

G02160700

Courtesy of NISSAN MOTOR CO., U.S.A.

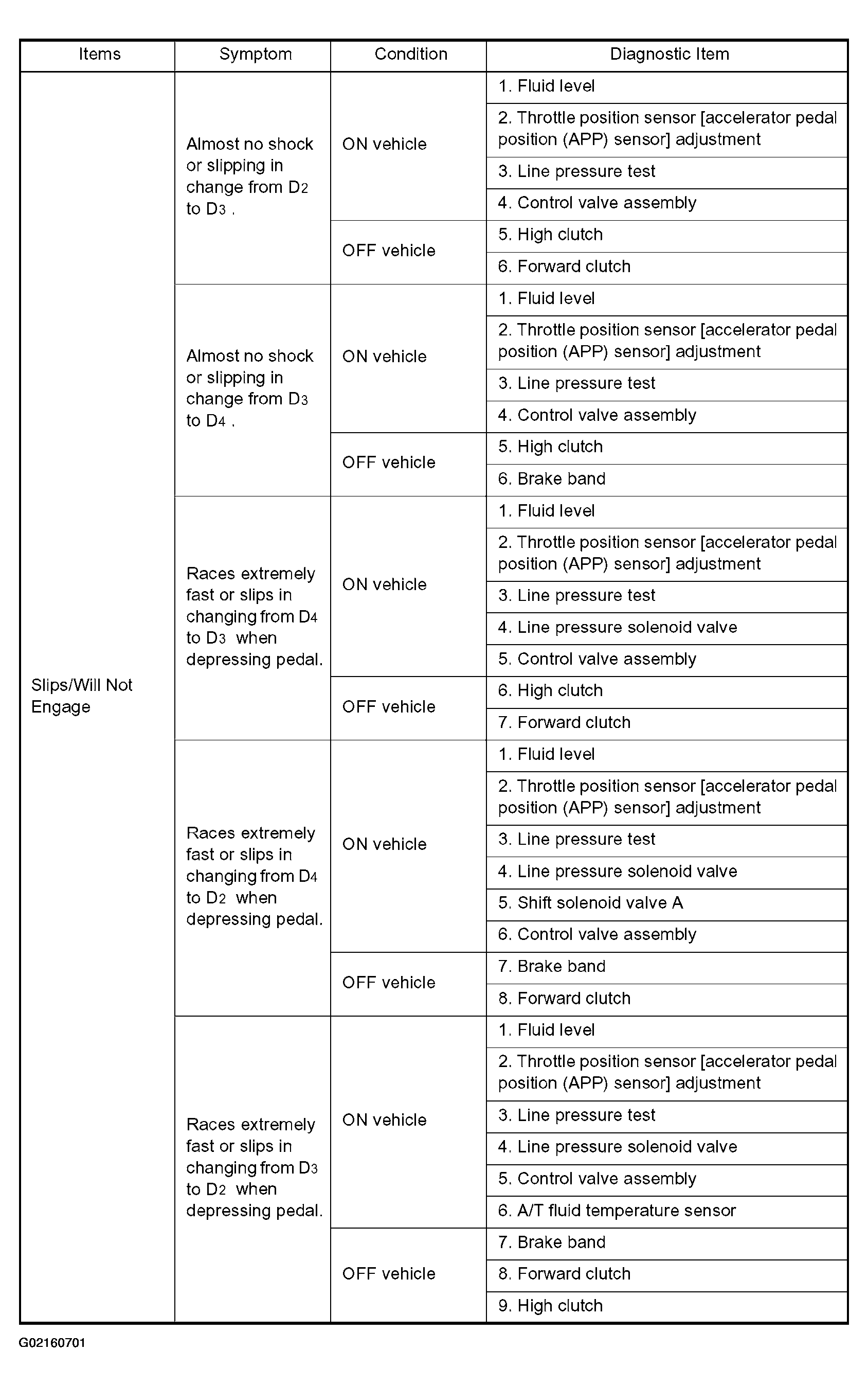

Fig 7: Problem Symptom Chart (7 Of 11)

G02160701

Courtesy of NISSAN MOTOR CO., U.S.A.

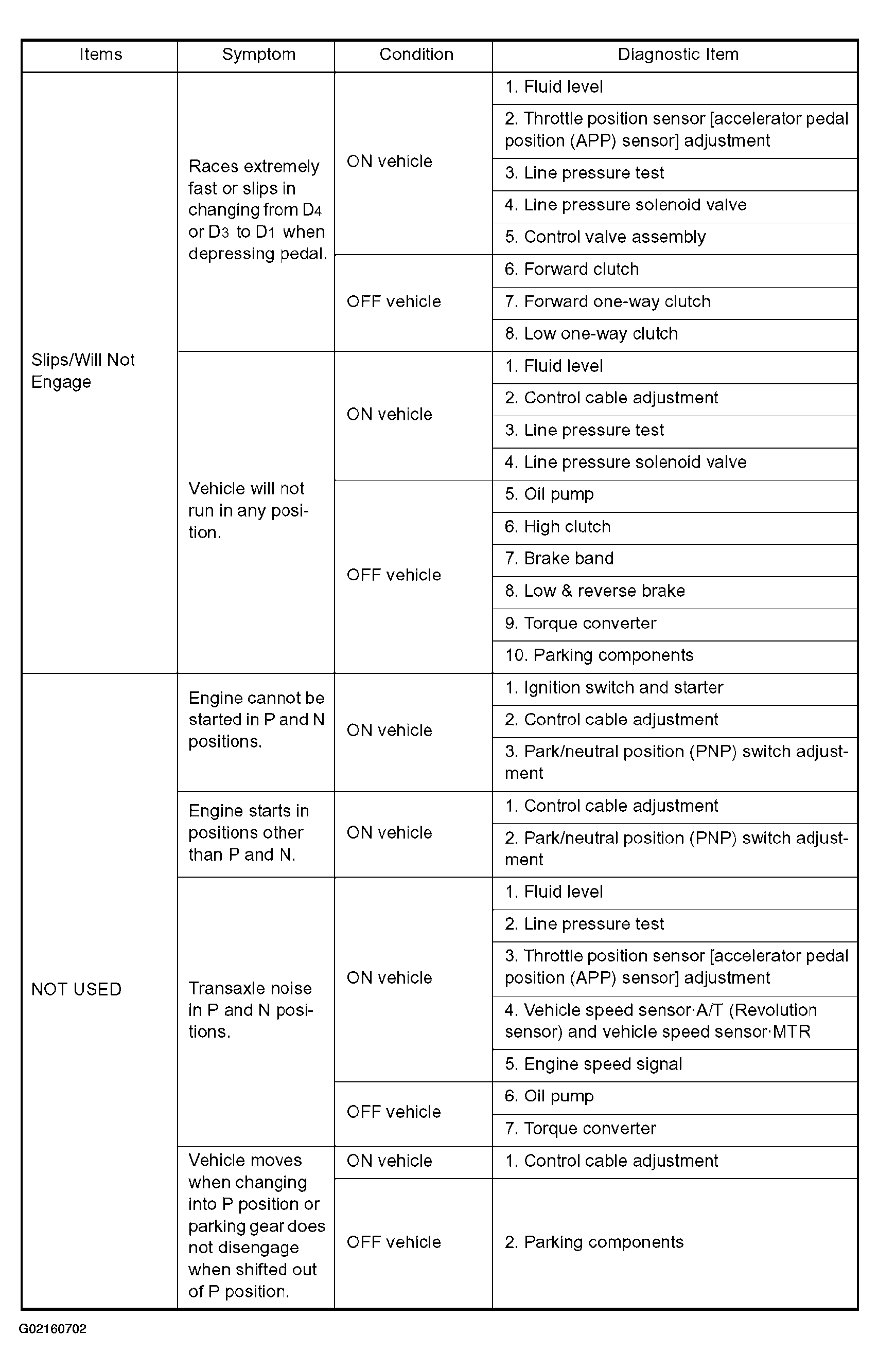

Fig 8: Problem Symptom Chart (8 Of 11)

G02160702

Courtesy of NISSAN MOTOR CO., U.S.A.

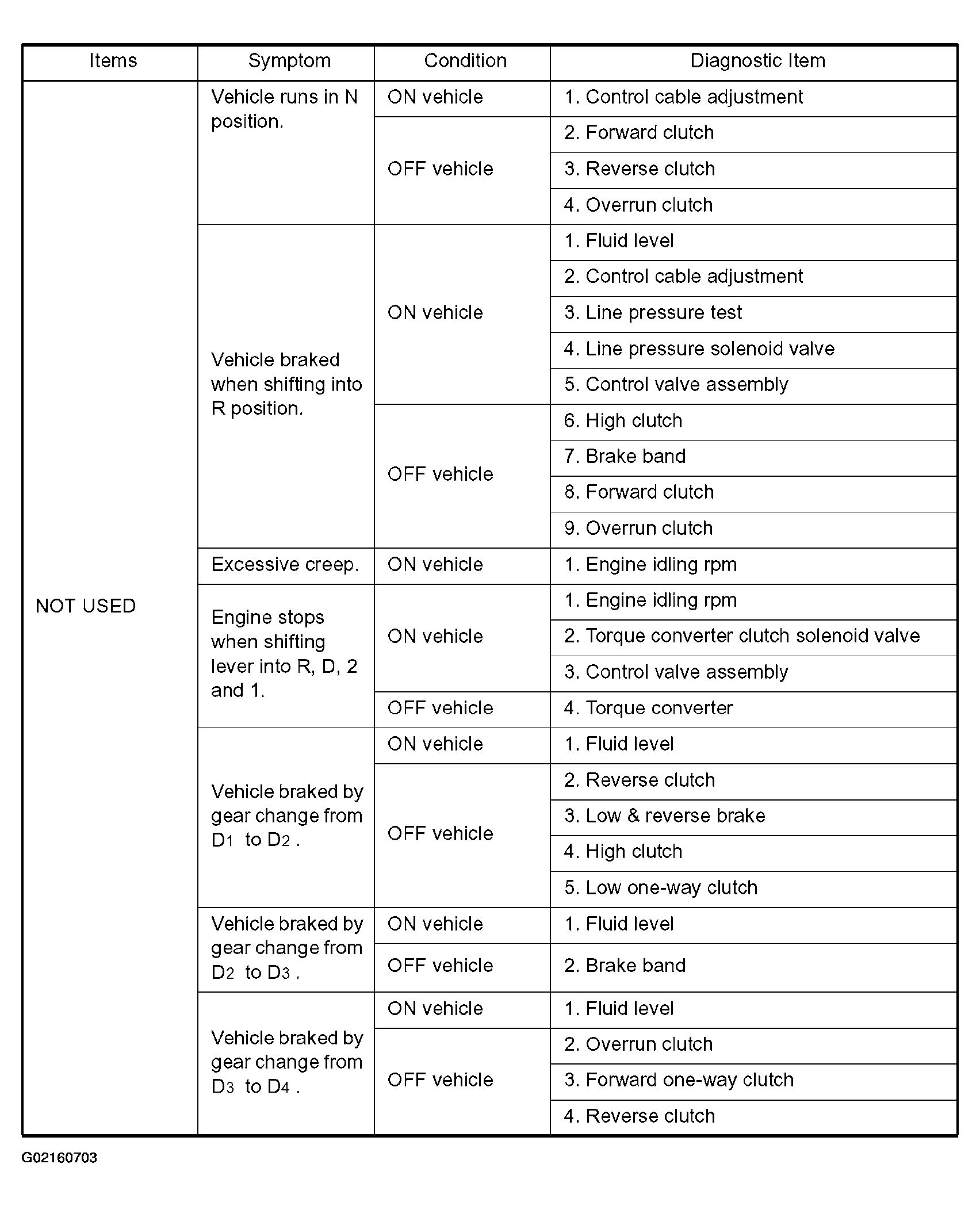

Fig 9: Problem Symptom Chart (9 Of 11)

G02160703

Courtesy of NISSAN MOTOR CO., U.S.A.

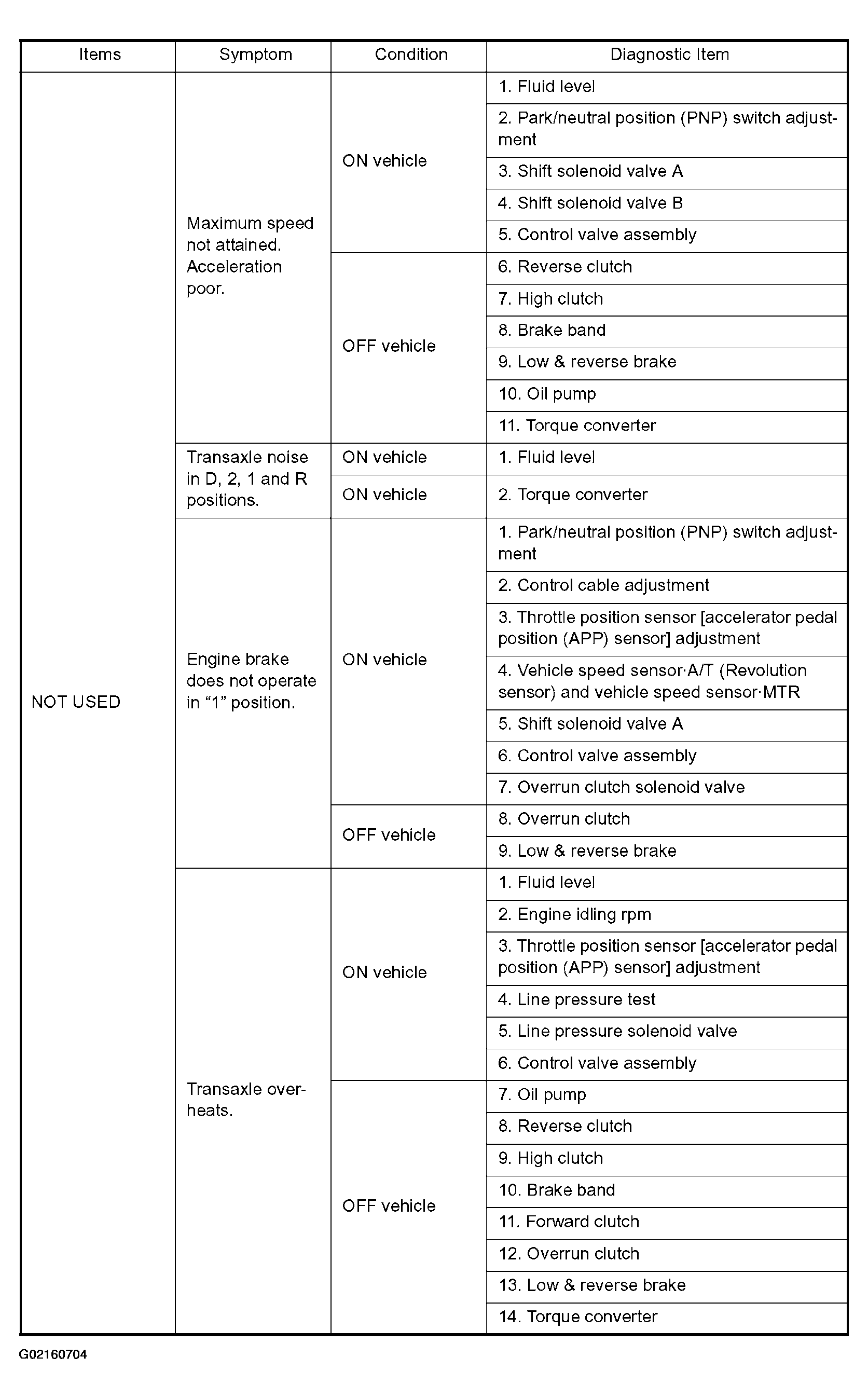

Fig 10: Problem Symptom Chart (10 Of 11)

G02160704

Courtesy of NISSAN MOTOR CO., U.S.A.

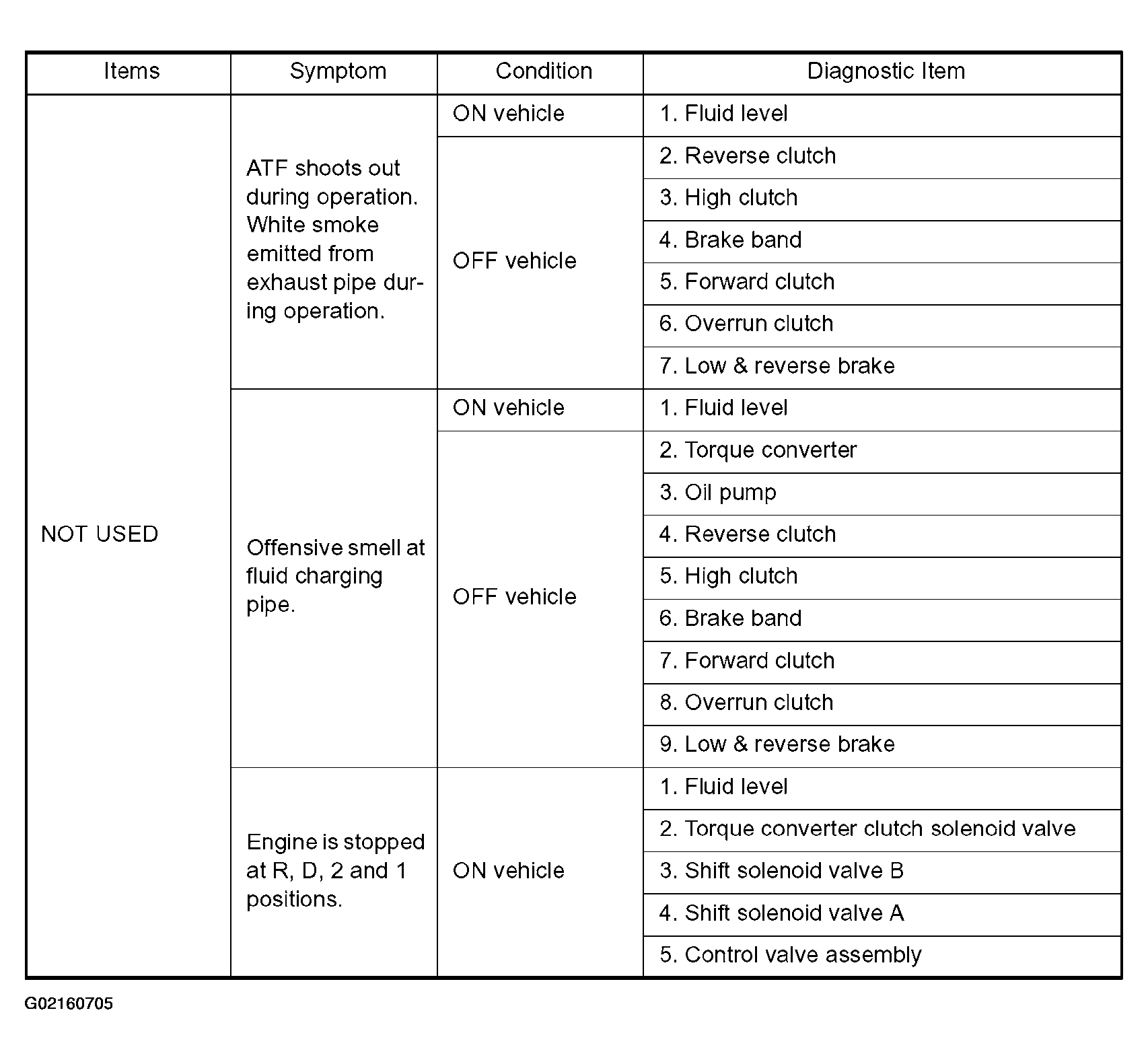

Fig 11: Problem Symptom Chart (11 Of 11)

G02160705

Courtesy of NISSAN MOTOR CO., U.S.A.
