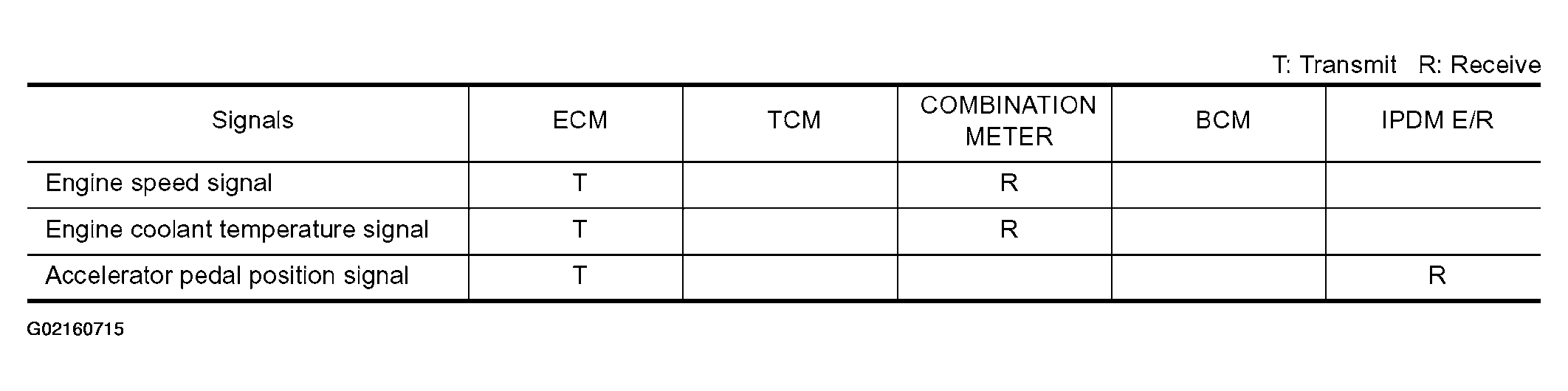

Fig 1: Input/Output Signal Chart For A/T Models (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

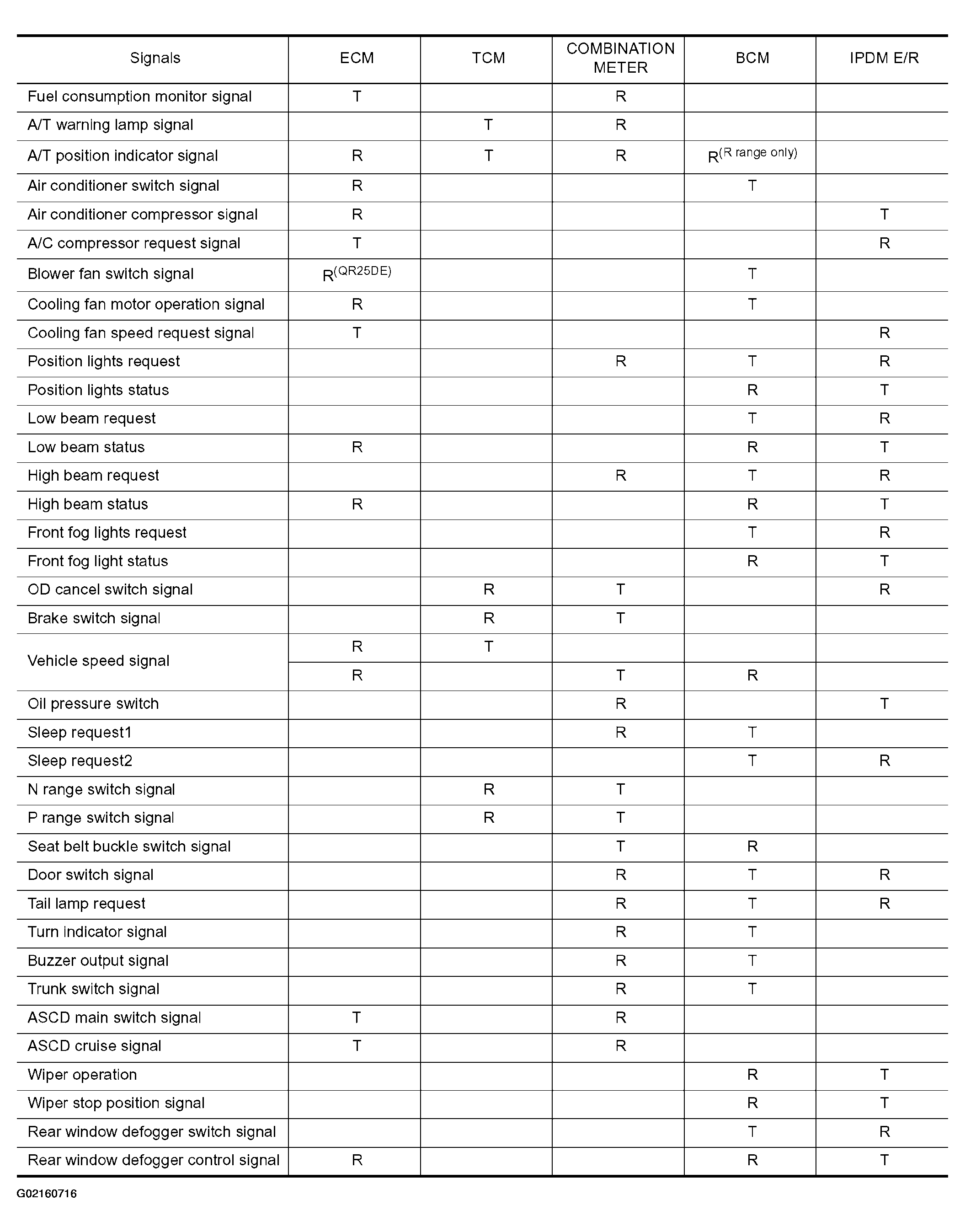

Fig 2: Input/Output Signal Chart For A/T Models (2 Of 2)
