Cruise Test - Part 2

1. Confirm gear selector lever is in D position.
2. Accelerate vehicle by half throttle again.
3. Does vehicle start from D₁ ?

   Read gear position.

Yes or No

1. Yes: GO TO 2.
2. No: Go to "16. VEHICLE DOES NOT START FROM D1 ". Continue ROAD TEST.

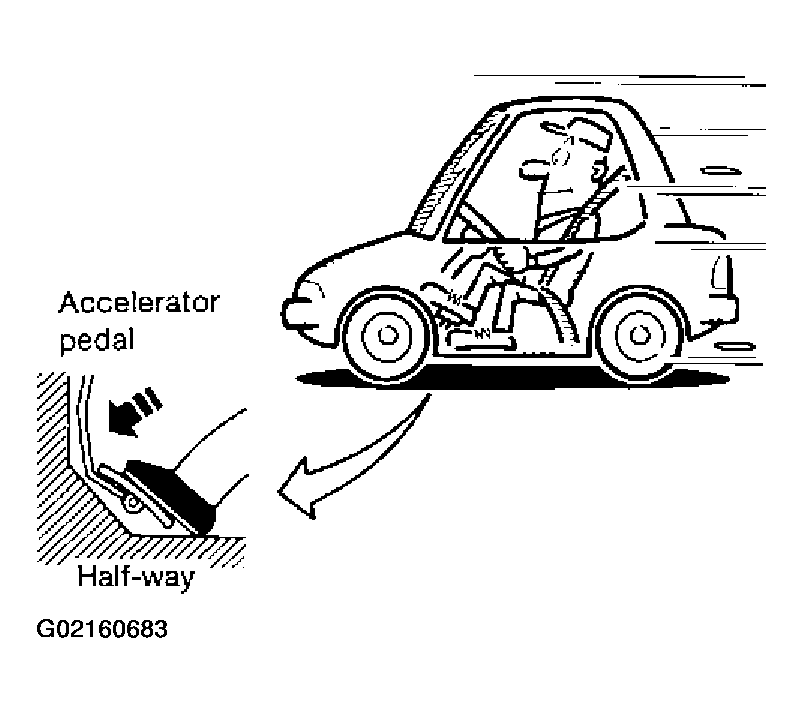

Fig 1: Checking Starting Gear (D1) Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D₄ to D₂ as soon as accelerator pedal is depressed fully?

   Read gear position and throttle opening.

Yes or No

1. Yes: GO TO 3.
2. No: Go to "9. A/T DOES NOT SHIFT: D1 D2 OR DOES NOT KICKDOWN: D4 D2 ". Continue ROAD TEST.

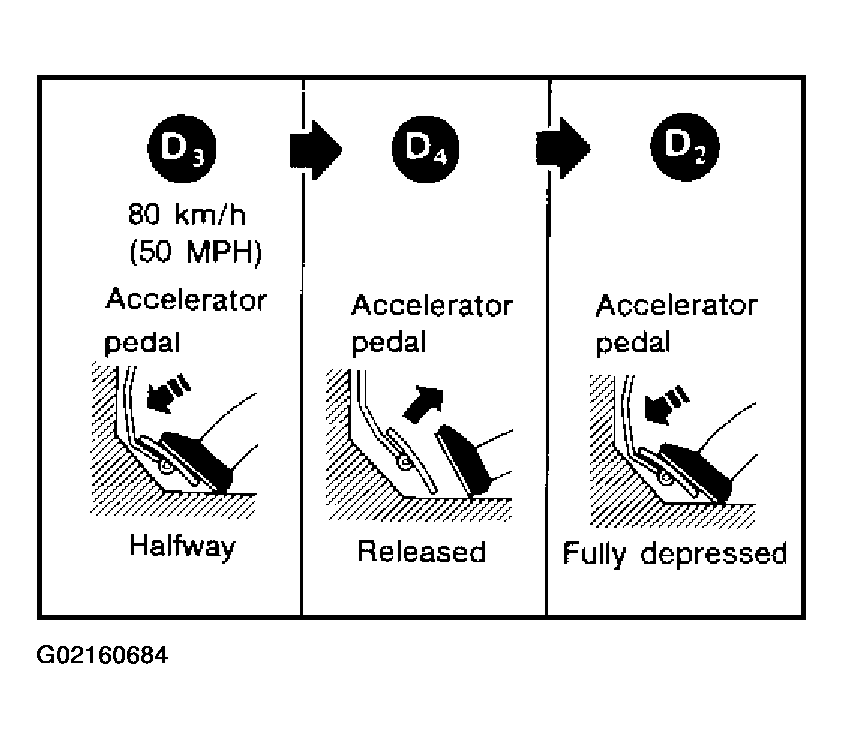

Fig 2: Checking Shift Up And Shift Down (D3 TO D₄ TO D₂ )

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D₂ to D₃ at the specified speed?

Read gear position, throttle opening and vehicle speed.

Specified speed when shifting from D ₂  to D ₃  : Refer to " SHIFT SCHEDULE  "  .

Yes or No

1. Yes: GO TO 4.
2. No: Go to "10. A/T DOES NOT SHIFT: D2 D3 ". Continue ROAD TEST.

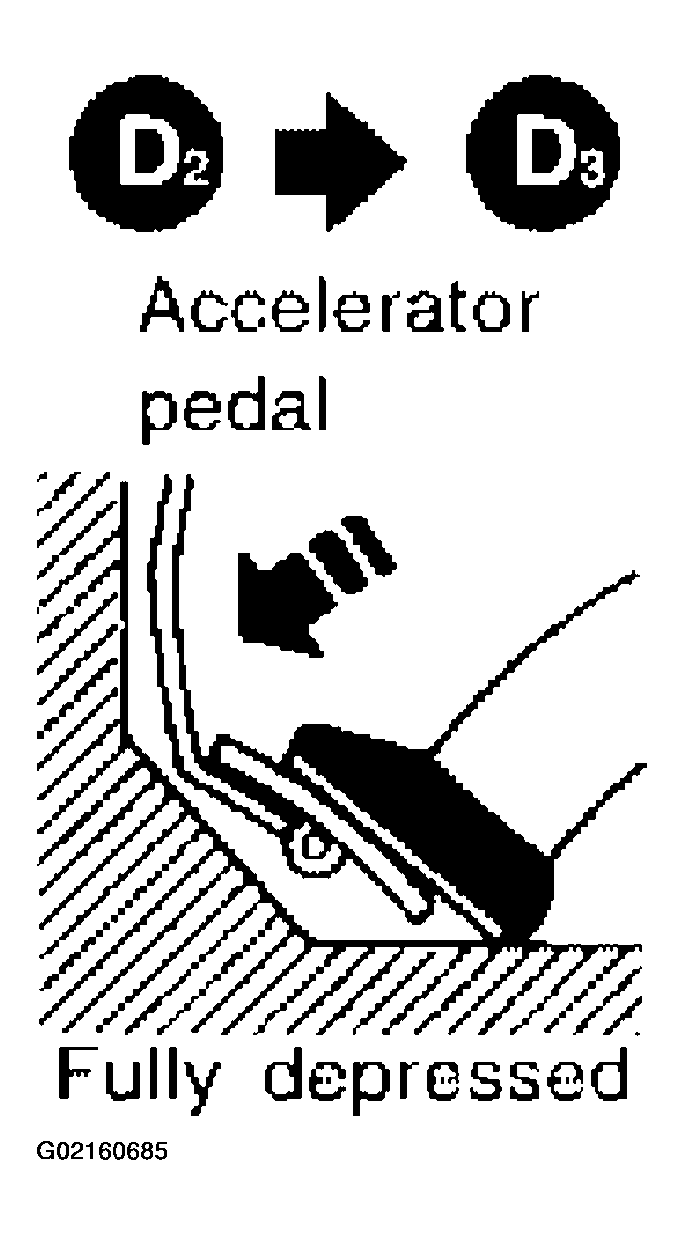

Fig 3: Checking Shift Up (D2 TO D₃ )

Courtesy of NISSAN MOTOR CO., U.S.A.

Release accelerator pedal after shifting from D₂ to D₃ . Does A/T shift from D₃ to D₄ and does vehicle decelerate by engine brake?

Read gear position, throttle opening and vehicle speed.

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Go to "CRUISE TEST - PART 3 ".
2. No: Go to "11. A/T DOES NOT SHIFT: D3 D4 ". Continue ROAD TEST.

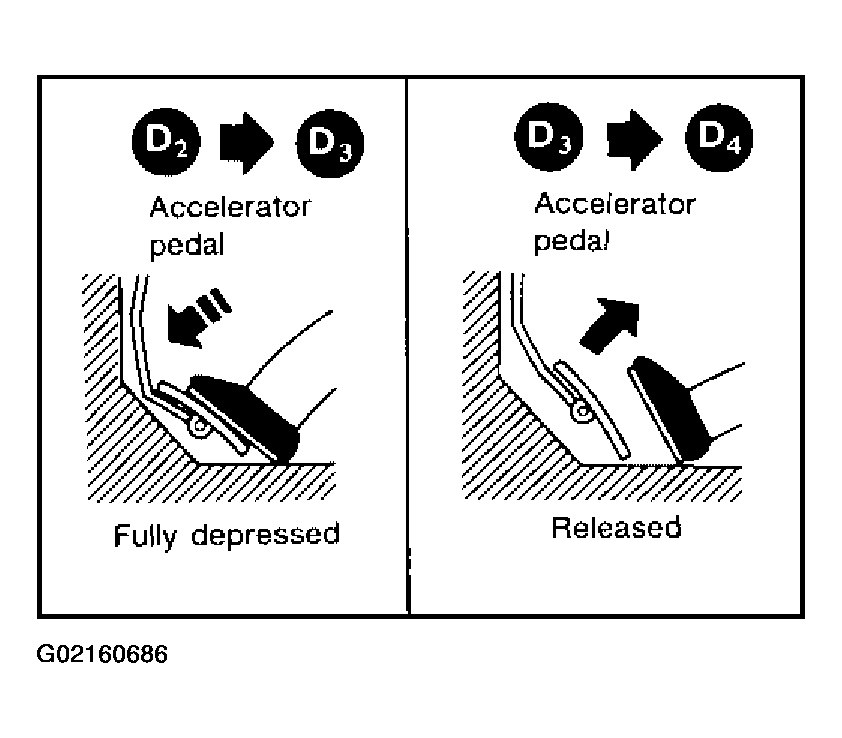

Fig 4: Checking Shift Up (D3 TO D₄ ) And Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.
