CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector, which is located in left side dash panel.

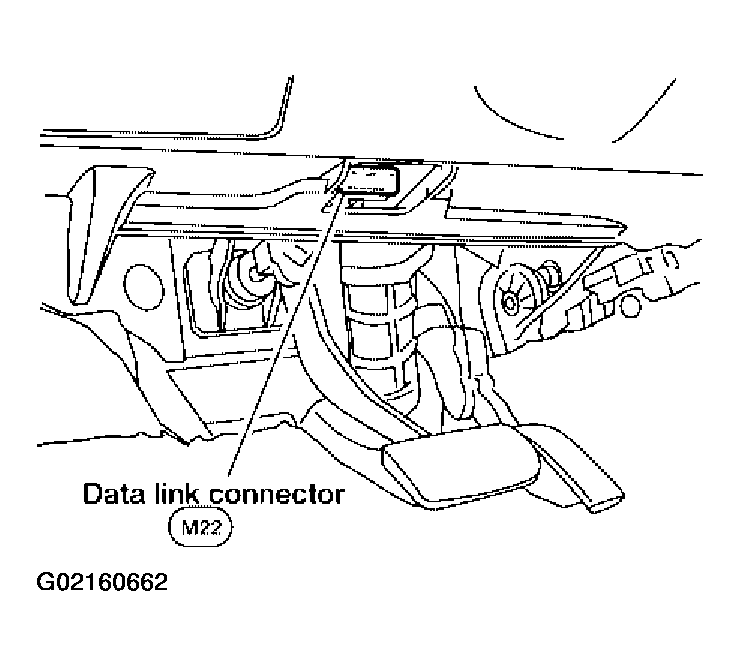

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.

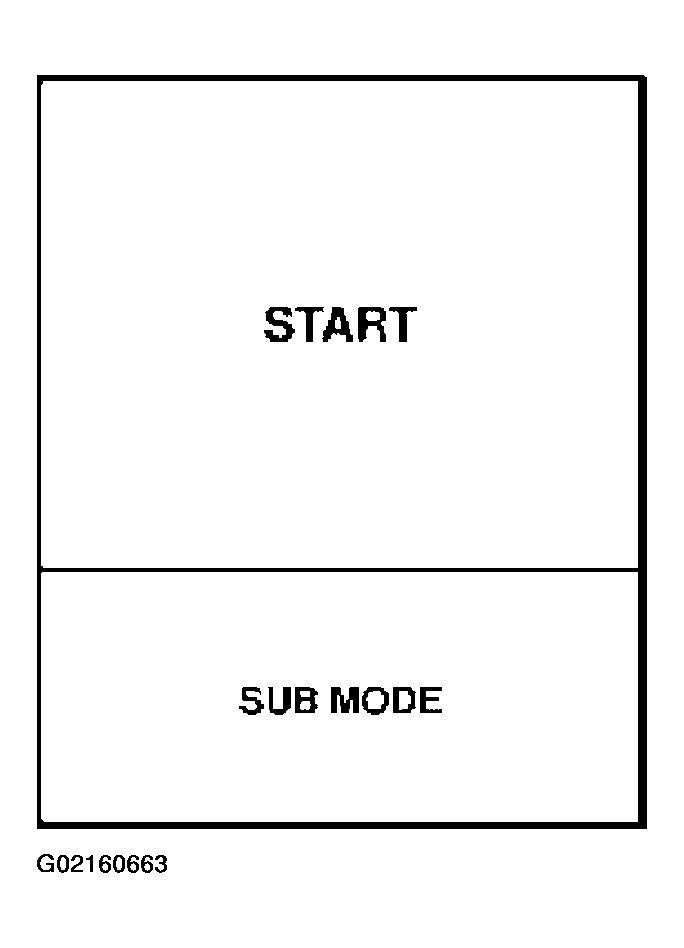

Fig 2: Consult-II Start Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Touch "A/T".

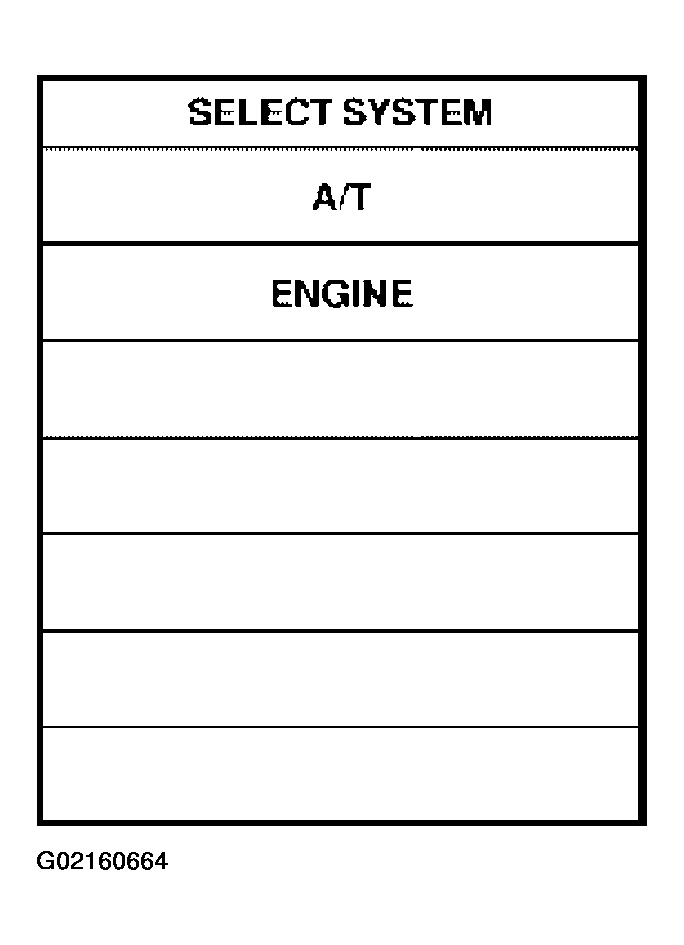

Fig 3: Consult II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

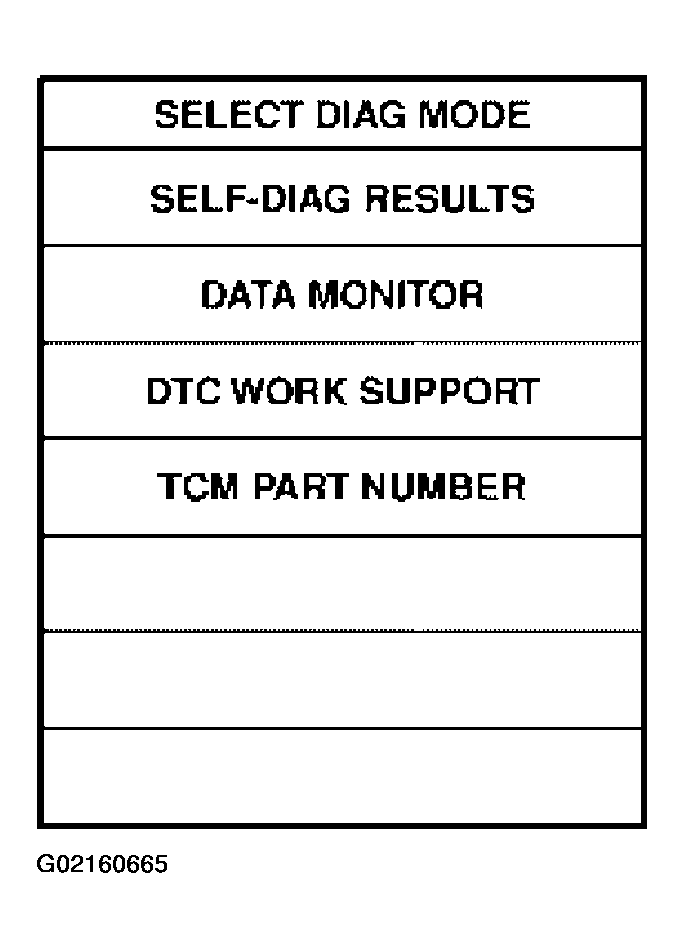

Fig 4: Consult II Self Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See "Numerical Display", "Bar chart Display" or "Line Graph Display".

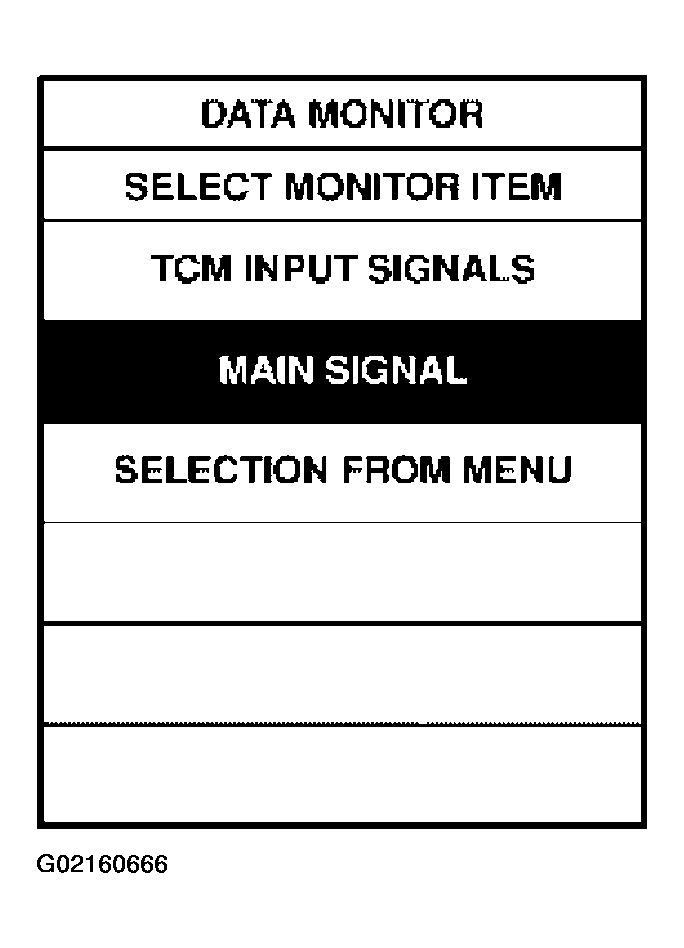

Fig 5: Consult II Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" To set recording condition ("AUTO TRIG" or "MANU TRIG(" and touch "BACK".
Touch "Start".

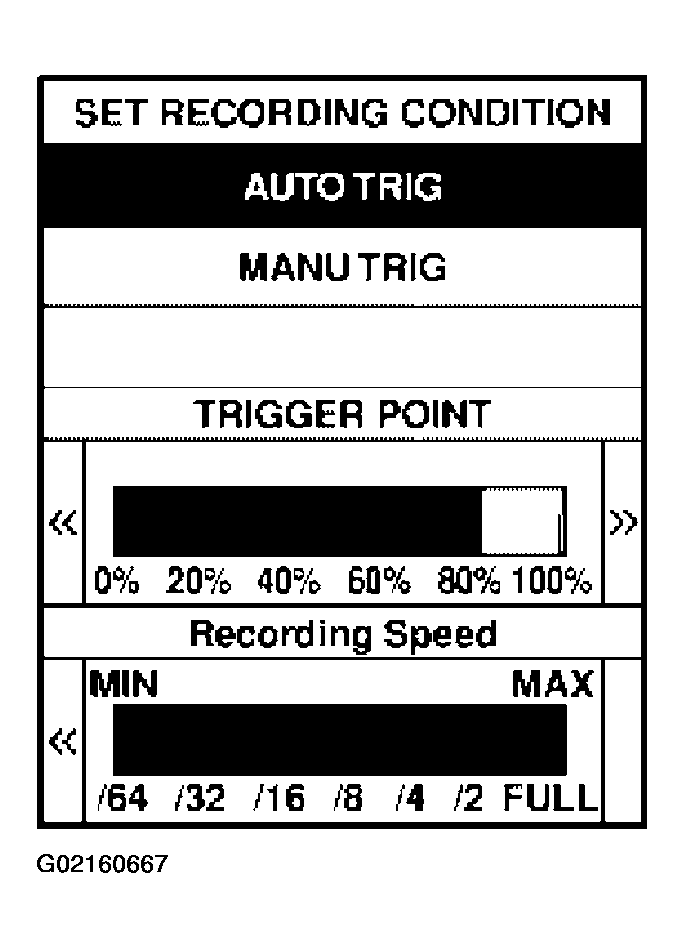

Fig 6: Consult-II Set Recording Condition Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

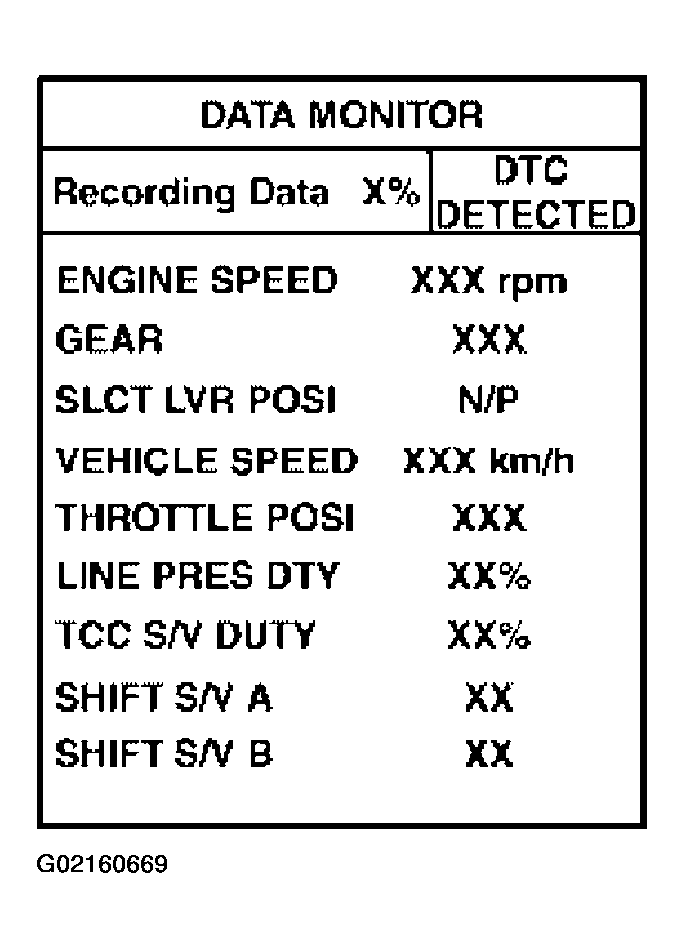

Fig 7: Consult-II Data Monitor Screen (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

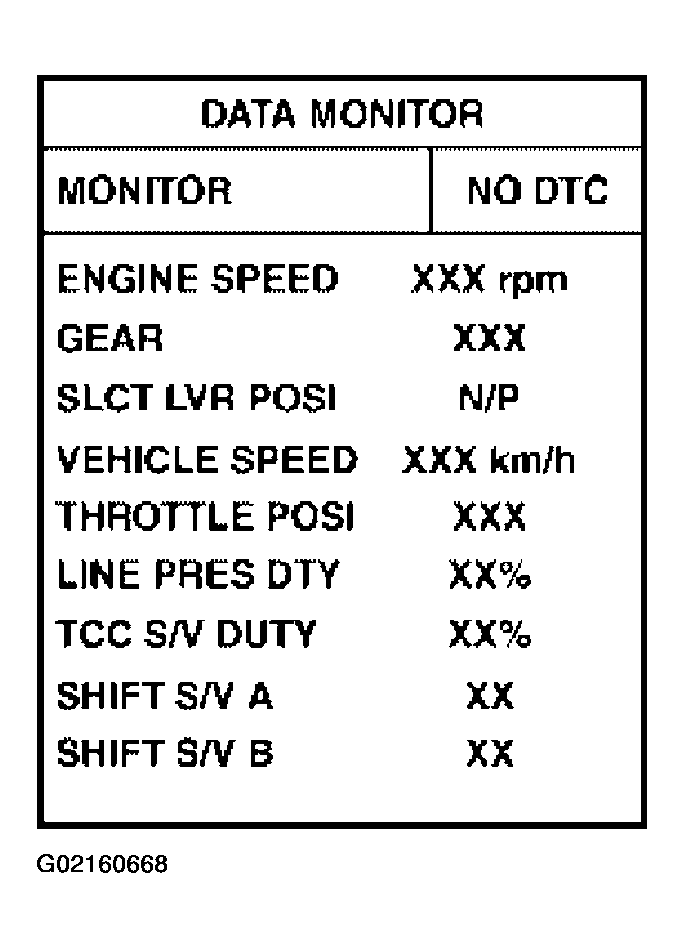

Fig 8: Consult-II Data Monitor Screen (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

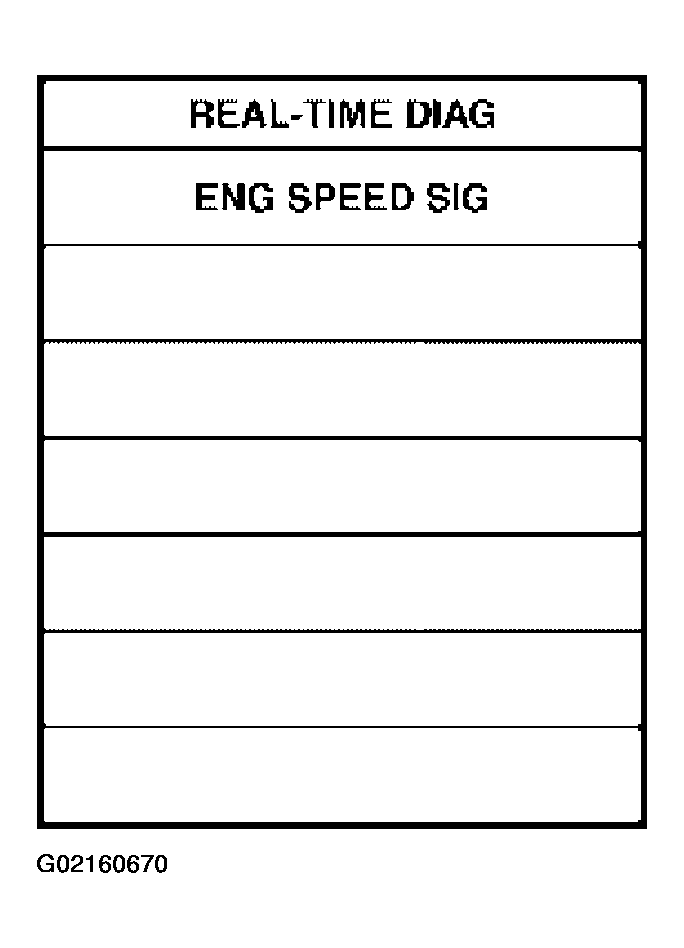

Fig 9: Consult-II Real Time Diag Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

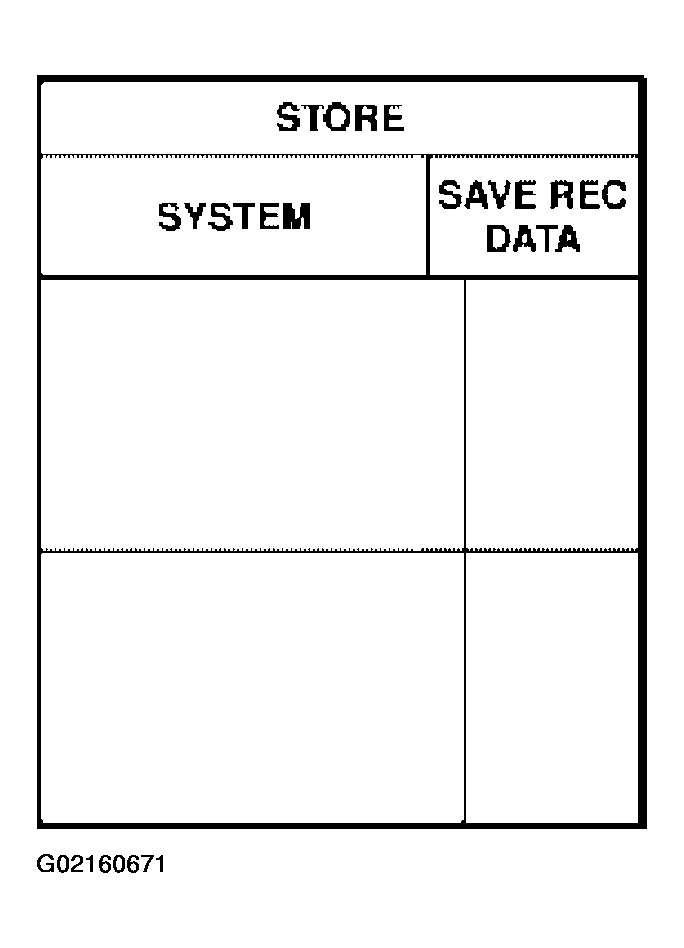

Fig 10: Consult-II Store Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

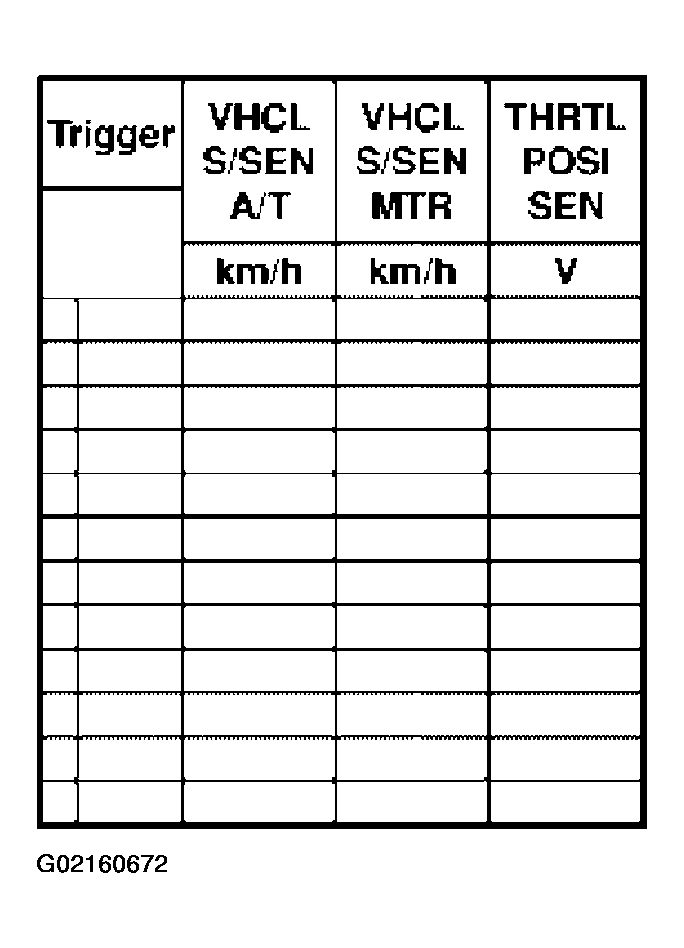

Fig 11: Identifying Printed Monitor Data
Courtesy of NISSAN MOTOR CO., U.S.A.
