Vehicle Speed When Shifting Gears Throttle Position - VQ35DE Model
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

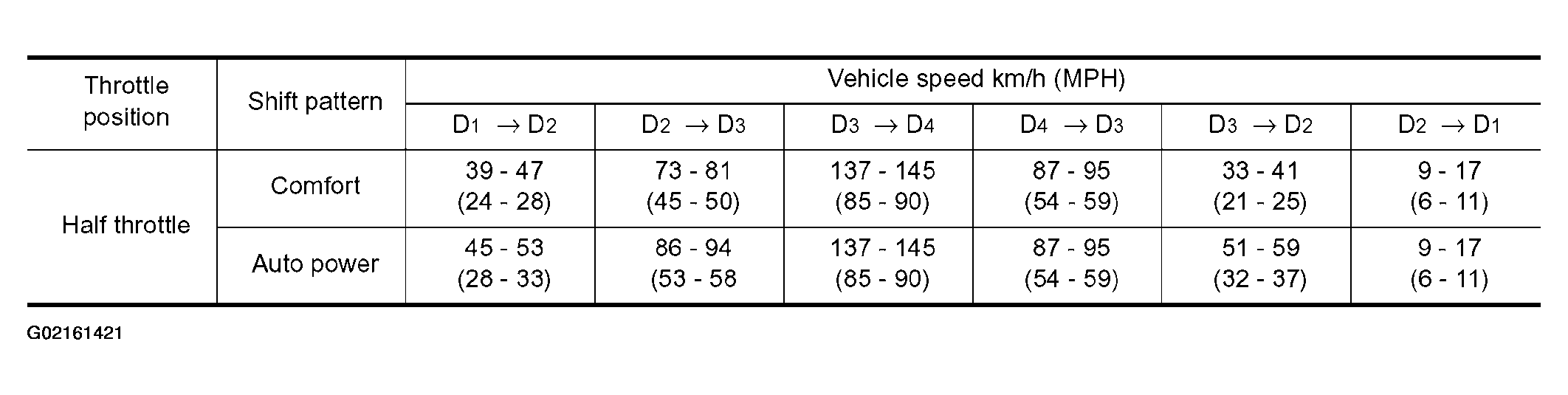

Fig 1: Vehicle Speed Specifications Shifting Gears Throttle Position-VQ35DE Model (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

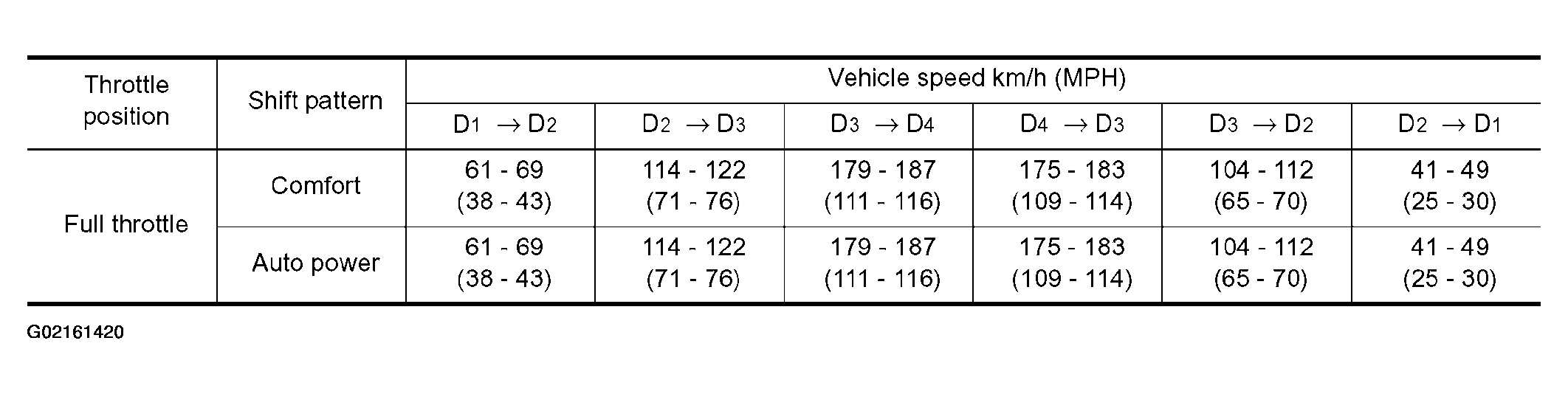

Fig 2: Vehicle Speed Specifications Shifting Gears Throttle Position-VQ35DE Model (2 Of 2)
