Section 785 (Automatic Transmission)
>>
Service Data And Specification (SDS)
>>
Reduction Pinion Gear
>>
Reduction Pinion Gear Bearing Adjusting Shims
Reduction Pinion Gear Bearing Adjusting Shims
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

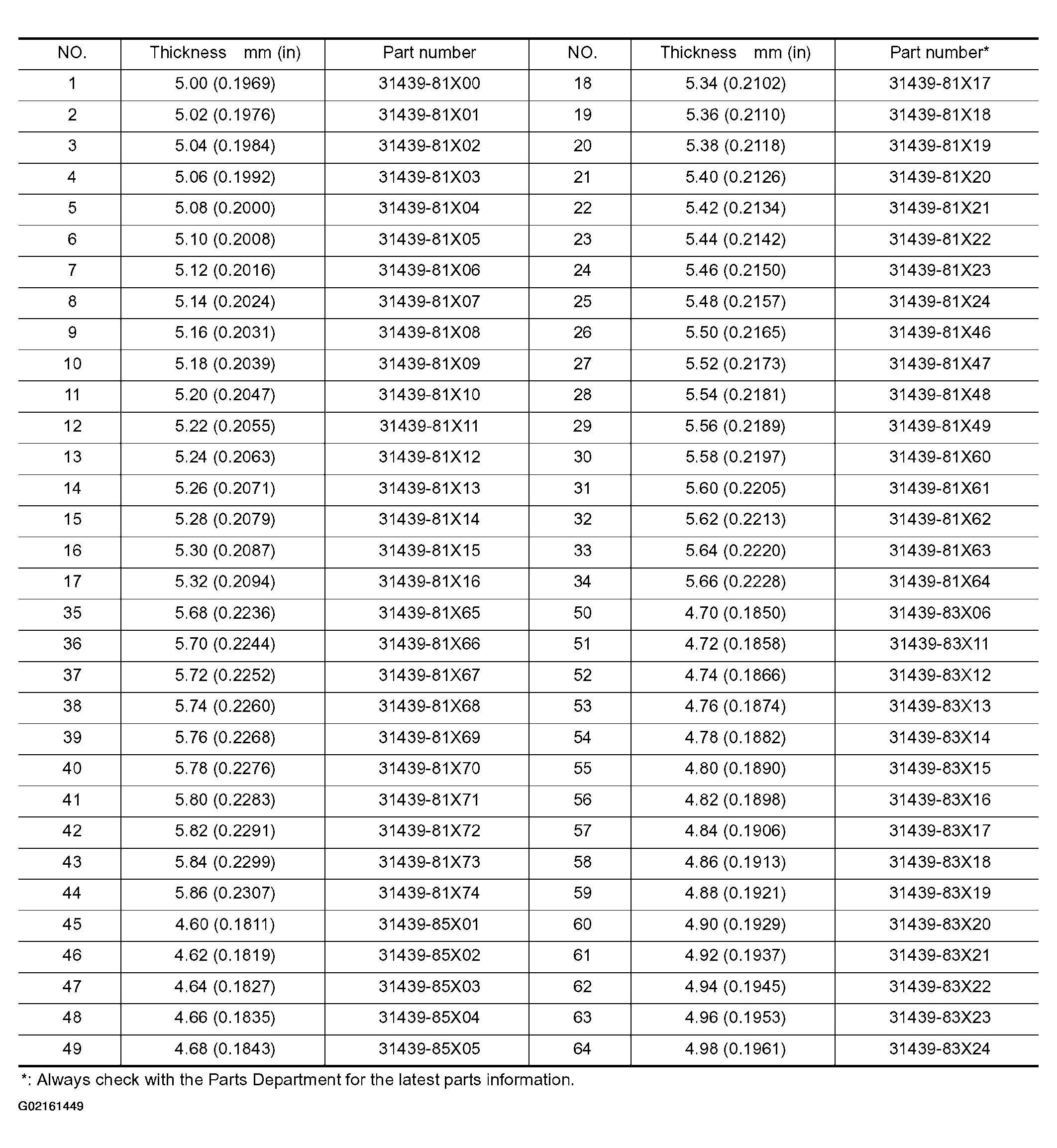

Fig 1: Reduction Pinion Gear Bearing Adjusting Shims Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
