High Clutch - Qr25DE Model

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

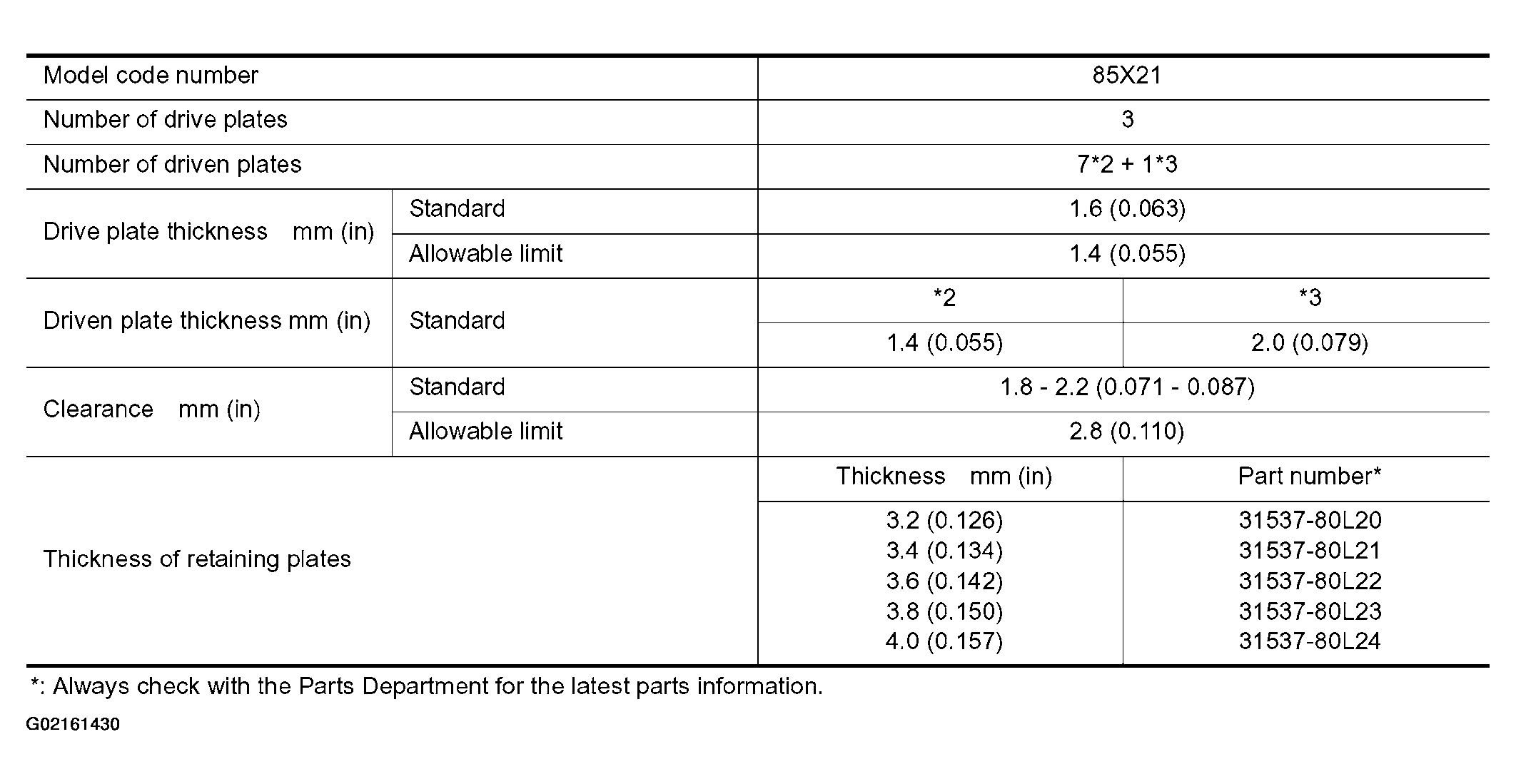

Fig 1: High Clutch Specifications (QR25DE Model)
G02161430Courtesy of NISSAN MOTOR CO., U.S.A.
