Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install D-ring and oil seal on piston.
- Take care with the direction of oil seal.
- Apply ATF to both parts.

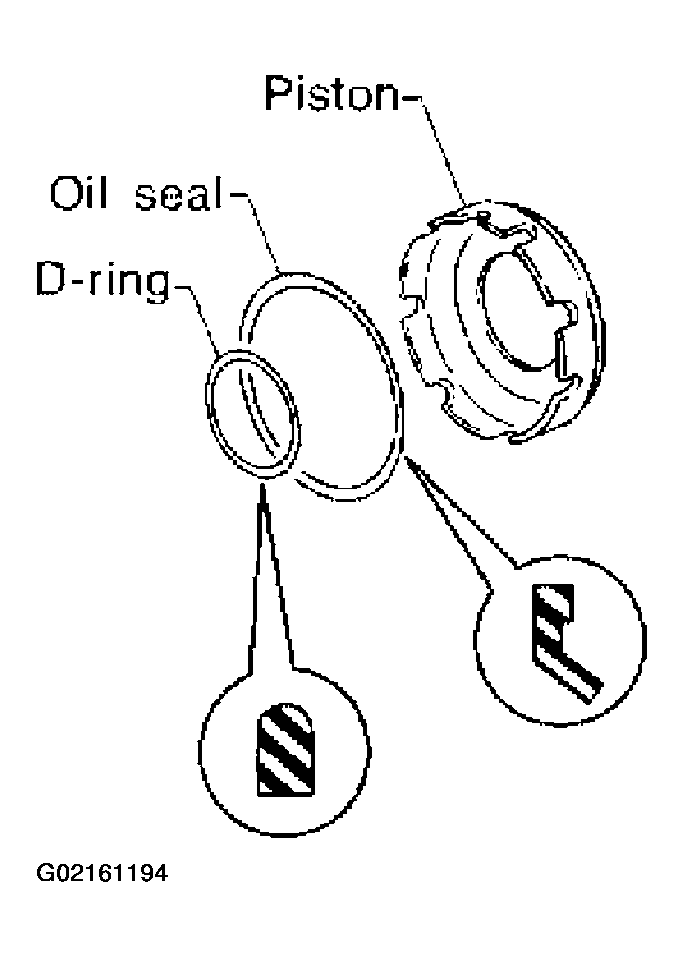

Fig 1: Installing D-Ring And Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.

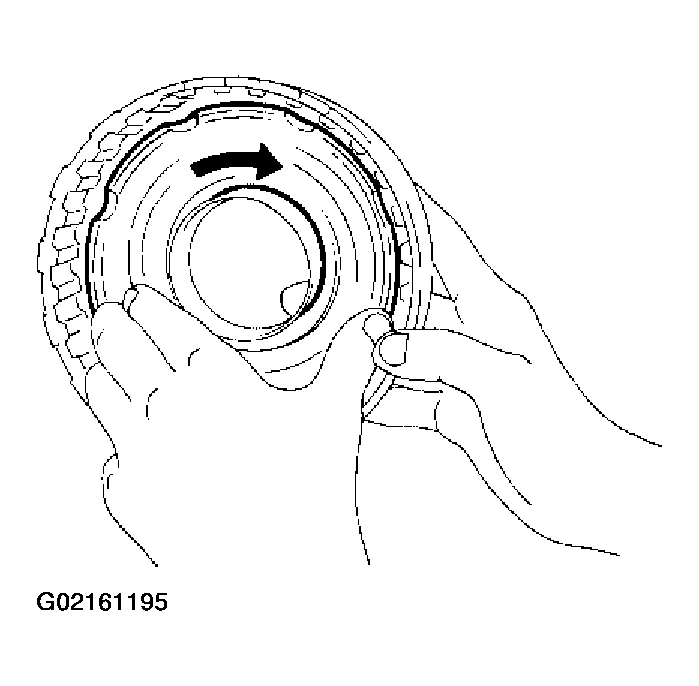

Fig 2: Installing Piston Assembly By Turning It Slowly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.

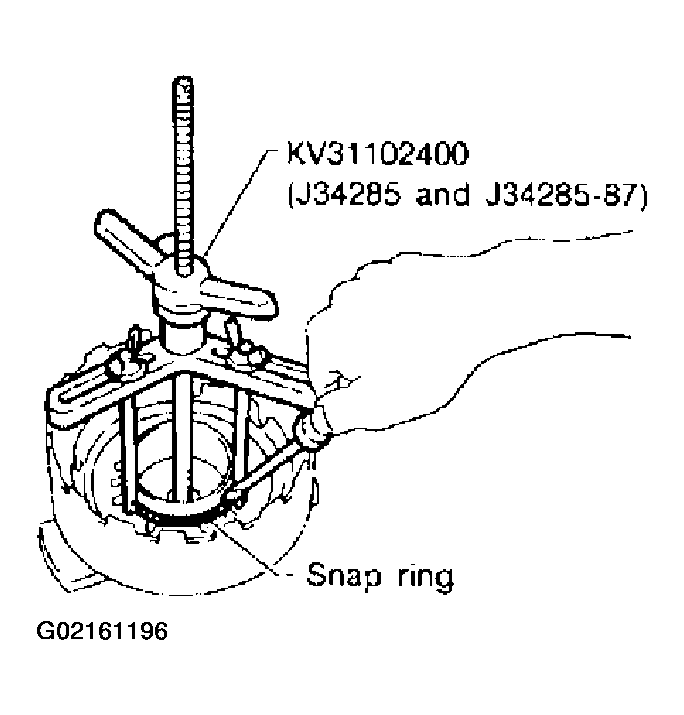

Fig 3: Installing Snap Ring While Compressing Return Springs
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.
Install drive plates, driven plates, retaining plate and dish plates.
- Take care with order of plates.
Install snap ring.

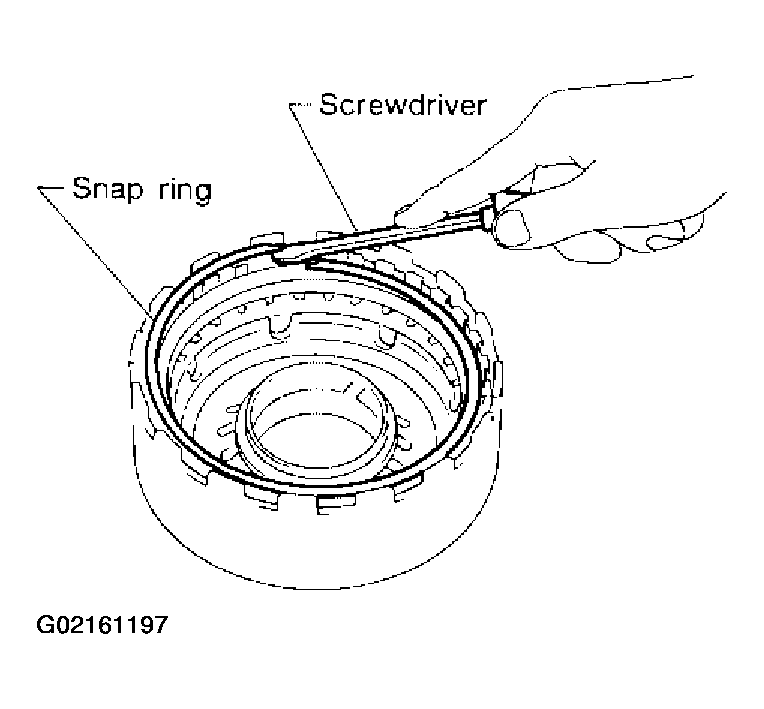

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance

Standard : 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit : 1.2 mm (0.047 in)

Retaining plate : Refer to " REVERSE CLUTCH ".

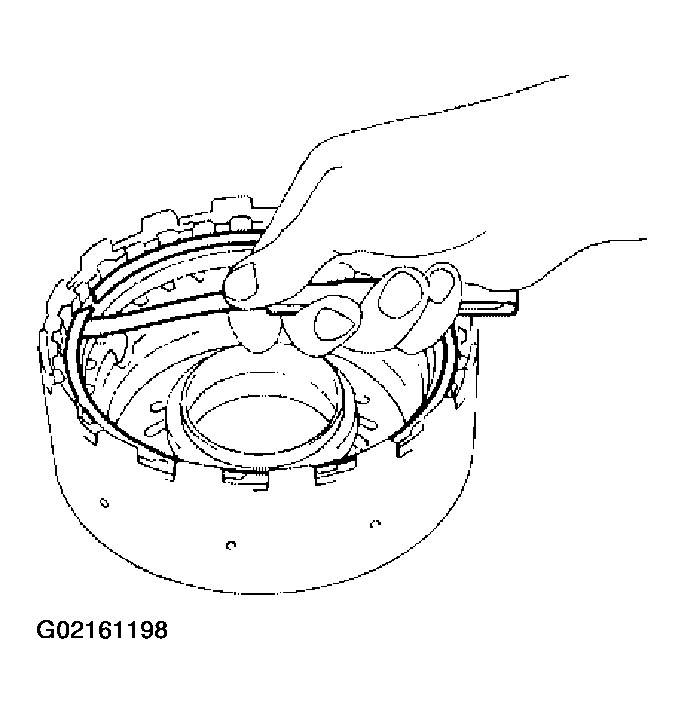

Fig 5: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of reverse clutch.

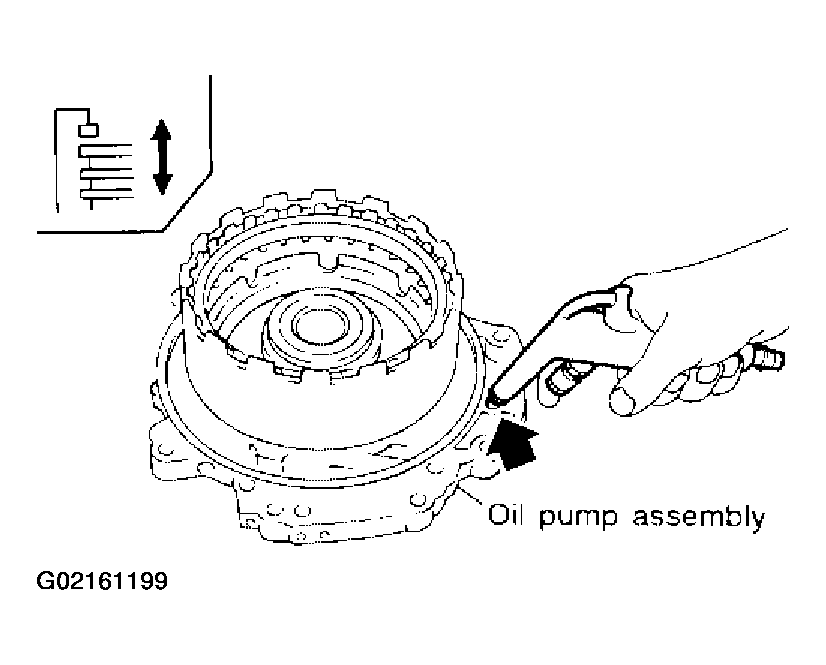

Fig 6: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
