Seal Ring Clearance
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

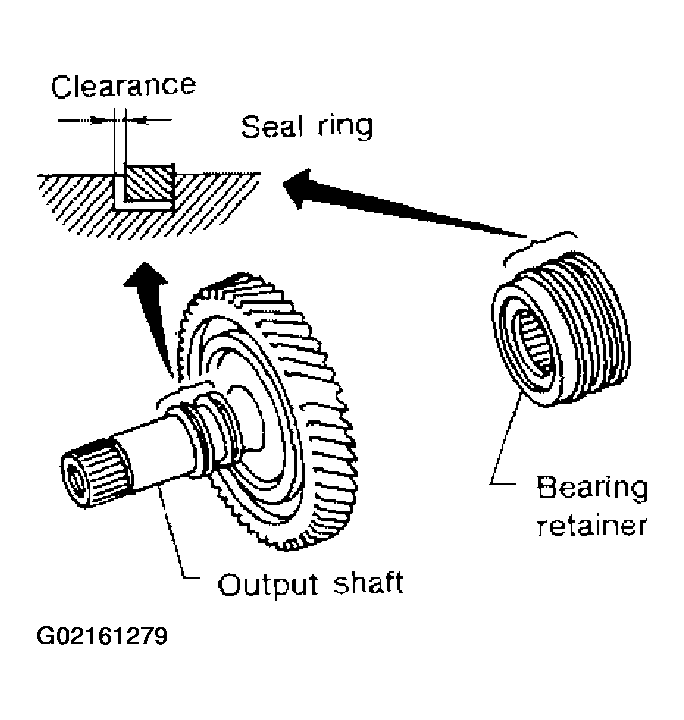

- Install new seal rings to output shaft.
- Measure clearance between seal ring and ring groove of output shaft.
Standard clearance : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit :0.25 mm (0.0098 in)
- If not within allowable limit, replace output shaft.
- Install new seal rings to bearing retainer.
- Measure clearance between seal ring and ring groove of bearing retainer.
Standard clearance :0.10 - 0.30 mm (0.0039 - 0.0118 in)
Allowable limit :0.30 mm (0.0118 in)
- If not within allowable limit, replace bearing retainer.
