Manual Shaft: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal detent spring from transmission case.

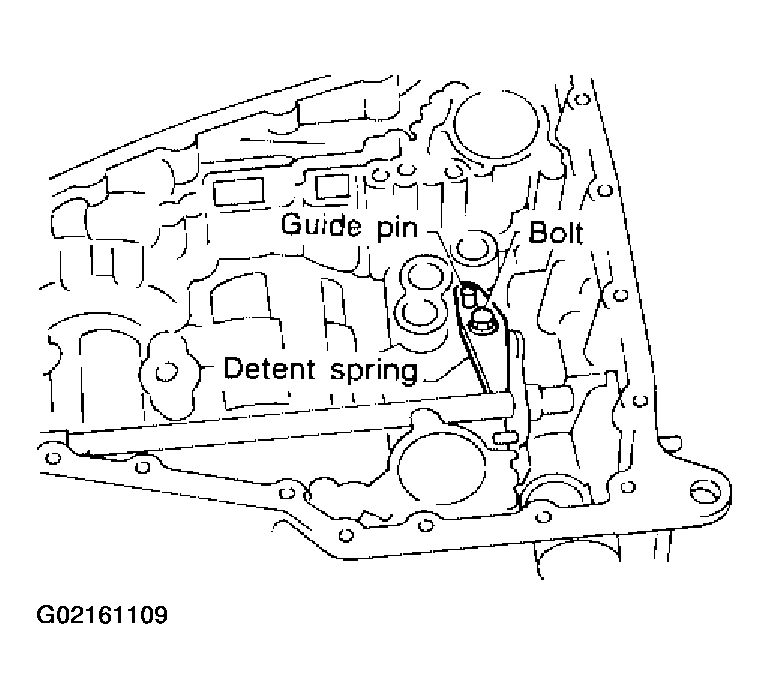

    Fig 1: Identifying Detent Spring For Removal From Transmission Case
    G02161109Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.

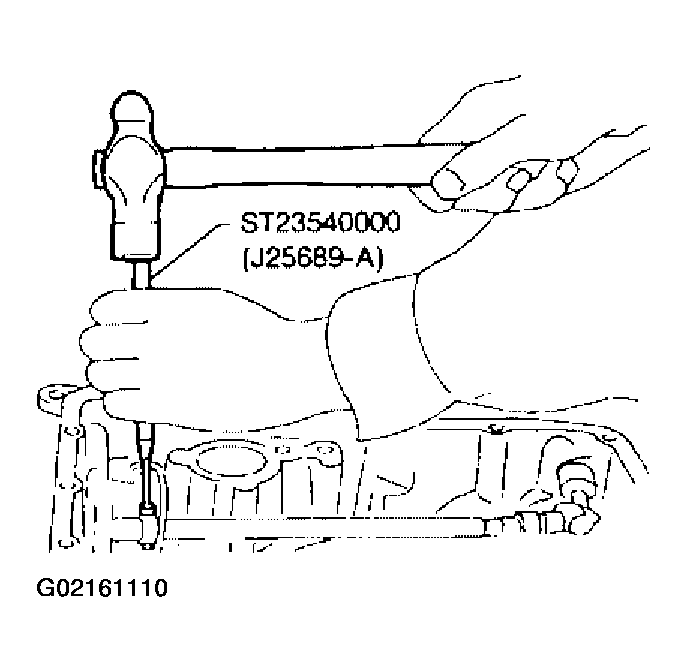

    Fig 2: Driving Out Manual Plate Retaining Pin
    G02161110Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.

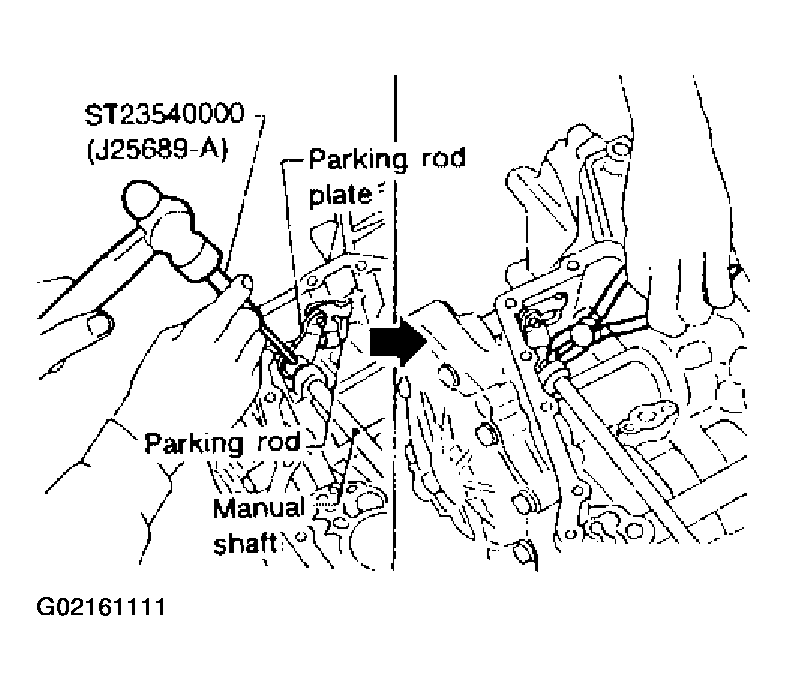

    Fig 3: Removing Parking Rod Plate From Manual Shaft And Drawing Out Parking Rod
    G02161111Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transmission case.

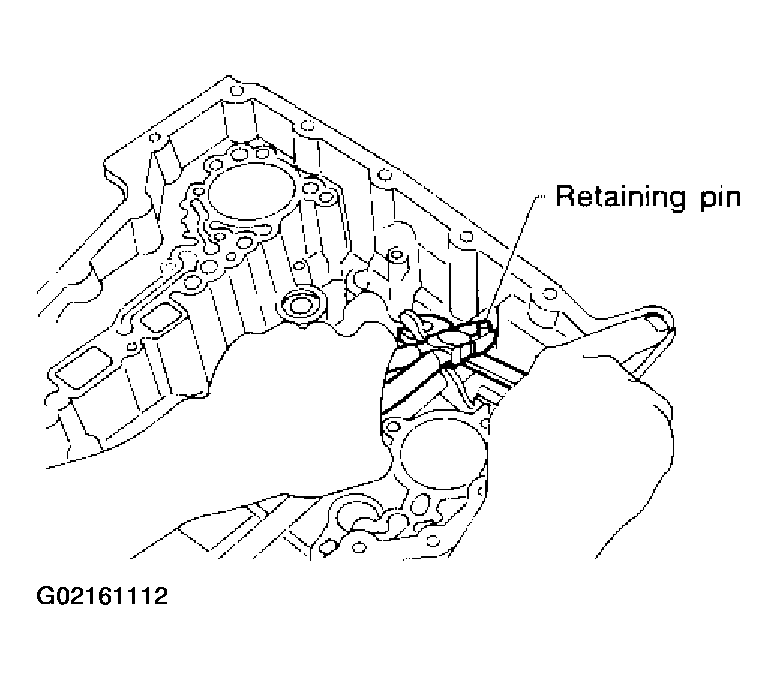

    Fig 4: Pulling Out Manual Shaft Retaining Pin
    G02161112Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove manual shaft oil seal.

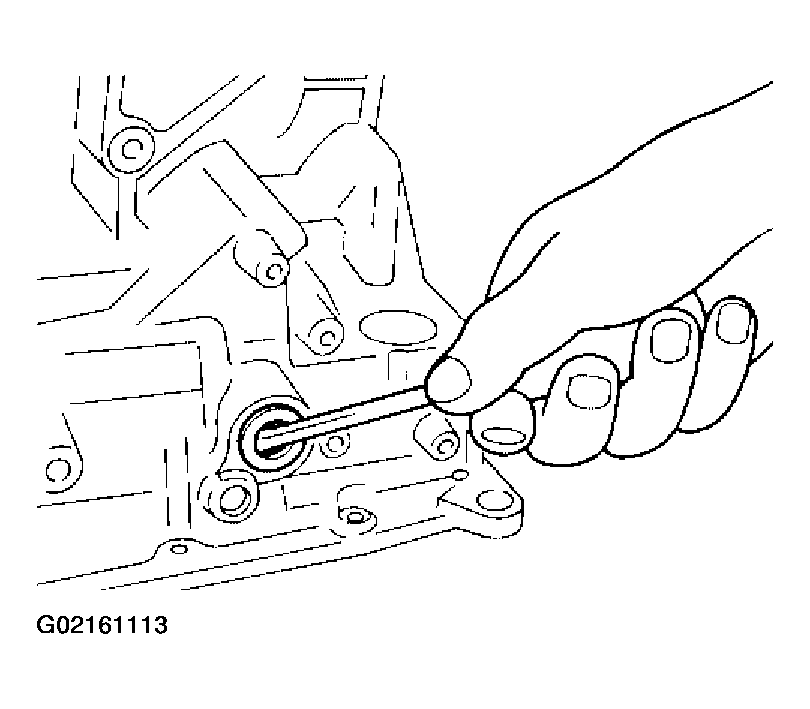

    Fig 5: Removing Manual Shaft Oil Seal
    G02161113Courtesy of NISSAN MOTOR CO., U.S.A.
