Check facing for burns, cracks or damage.
Measure thickness of facing.
Thickness of drive plate
Standard value :1.8 mm (0.071 in)
Wear limit : 1.6 mm (0.063 in)
If not within wear limit, replace.

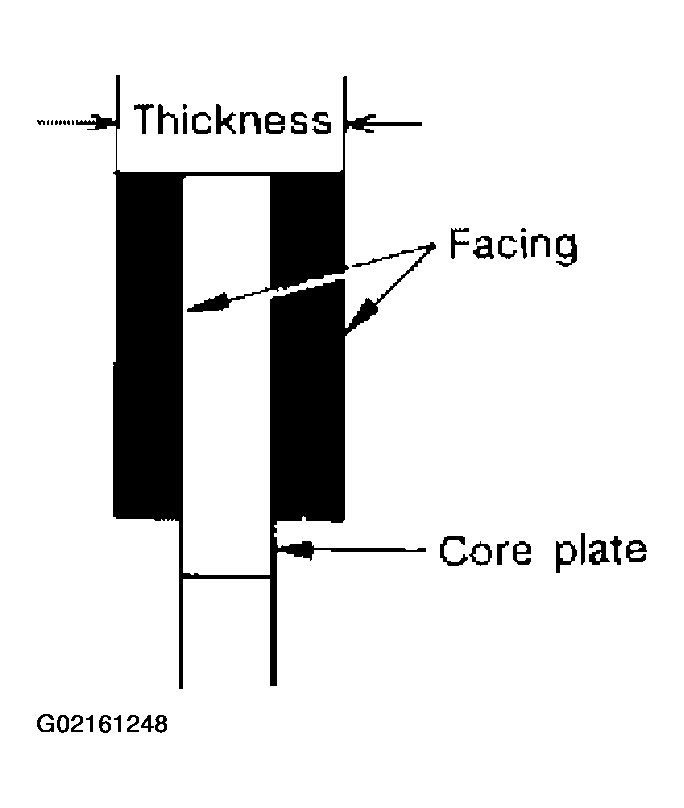

Fig 1: Identifying Thickness Of Low And Reverse Brake Drive Plate
