Turbine Revolution Sensor Replacement

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector.
  2. Remove bolt, and turbine revolution sensor from A/T.
  3. Reinstall any part removed.
    • Always use new sealing parts.

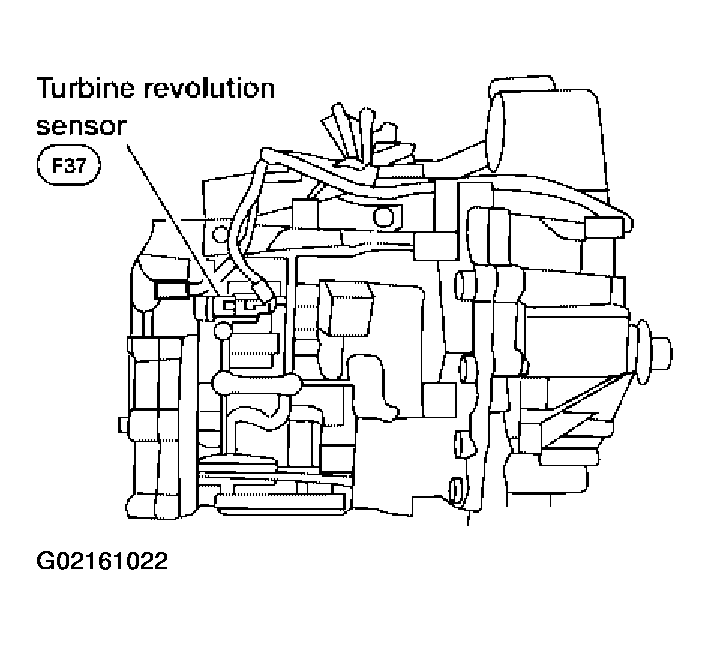

    Fig 1: Identifying Turbine Revolution Sensor
    G02161022Courtesy of NISSAN MOTOR CO., U.S.A.
