Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable from manual shaft.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.

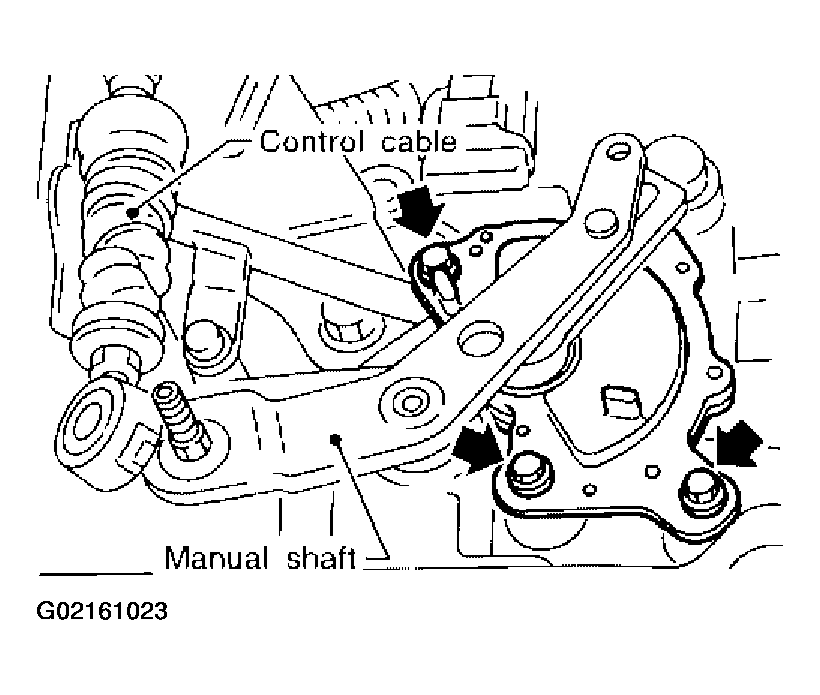

    Fig 1: Locating Control Cable And Manual Shaft
    G02161023Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.
  5. Reinstall any part removed.
  6. Check continuity of park/neutral position (PNP) switch. Refer to "DIAGNOSTIC PROCEDURE ".

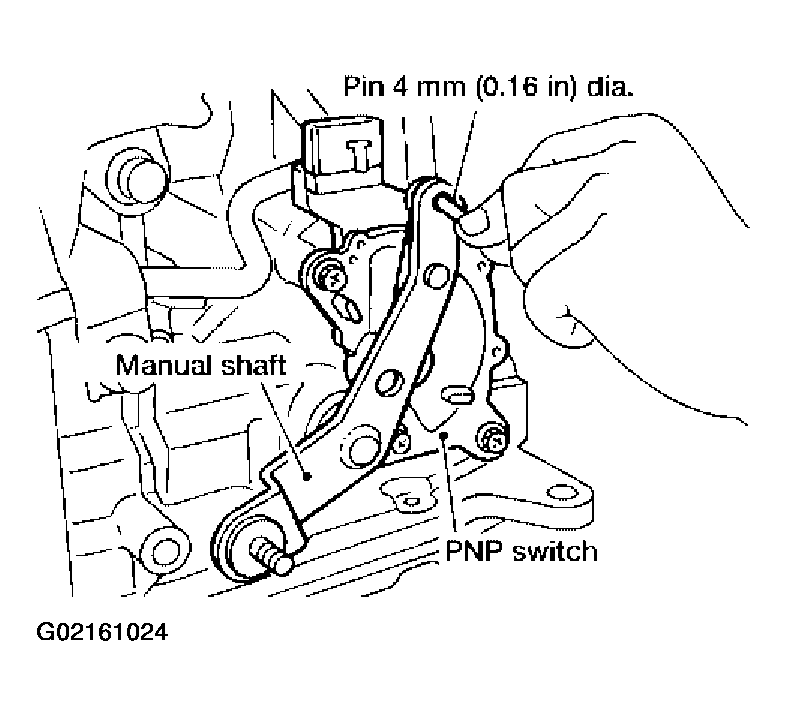

    Fig 2: Inserting Pin Into Adjustment Holes In Both Park/Neutral Position (PNP) Switch And Manual Shaft
    G02161024Courtesy of NISSAN MOTOR CO., U.S.A.
