Judgment Of Self-Diagnosis Code

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

A/T check (position) indicator lamp:

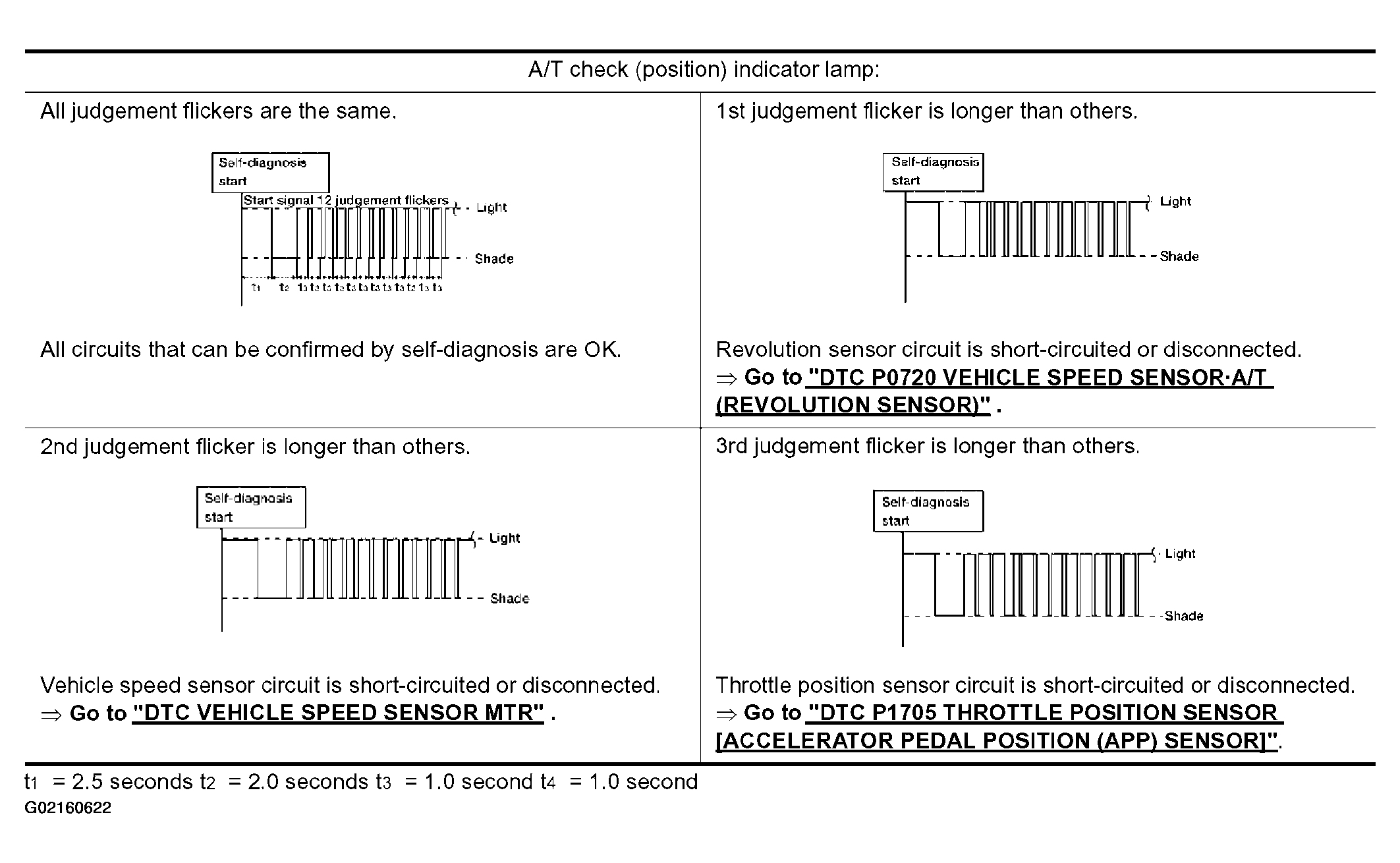

Fig 1: Self Diagnosis Code Judgment Chart A/T Check (Position) Indicator Lamp (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

A/T check (position) indicator lamp:

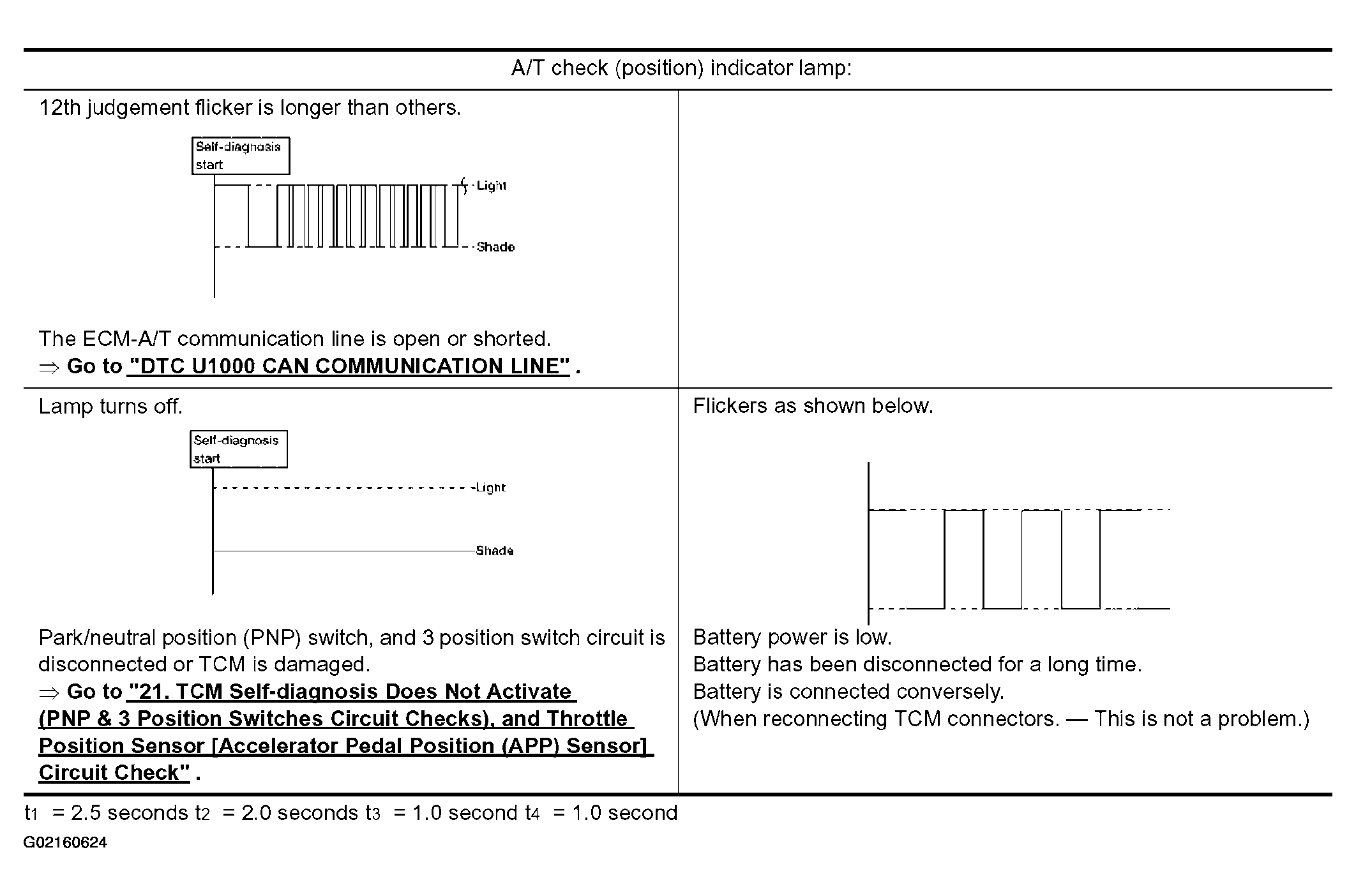

Fig 2: Self Diagnosis Code Judgement Chart A/T Check (Position) Indicator Lamp (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

A/T check (position) indicator lamp:

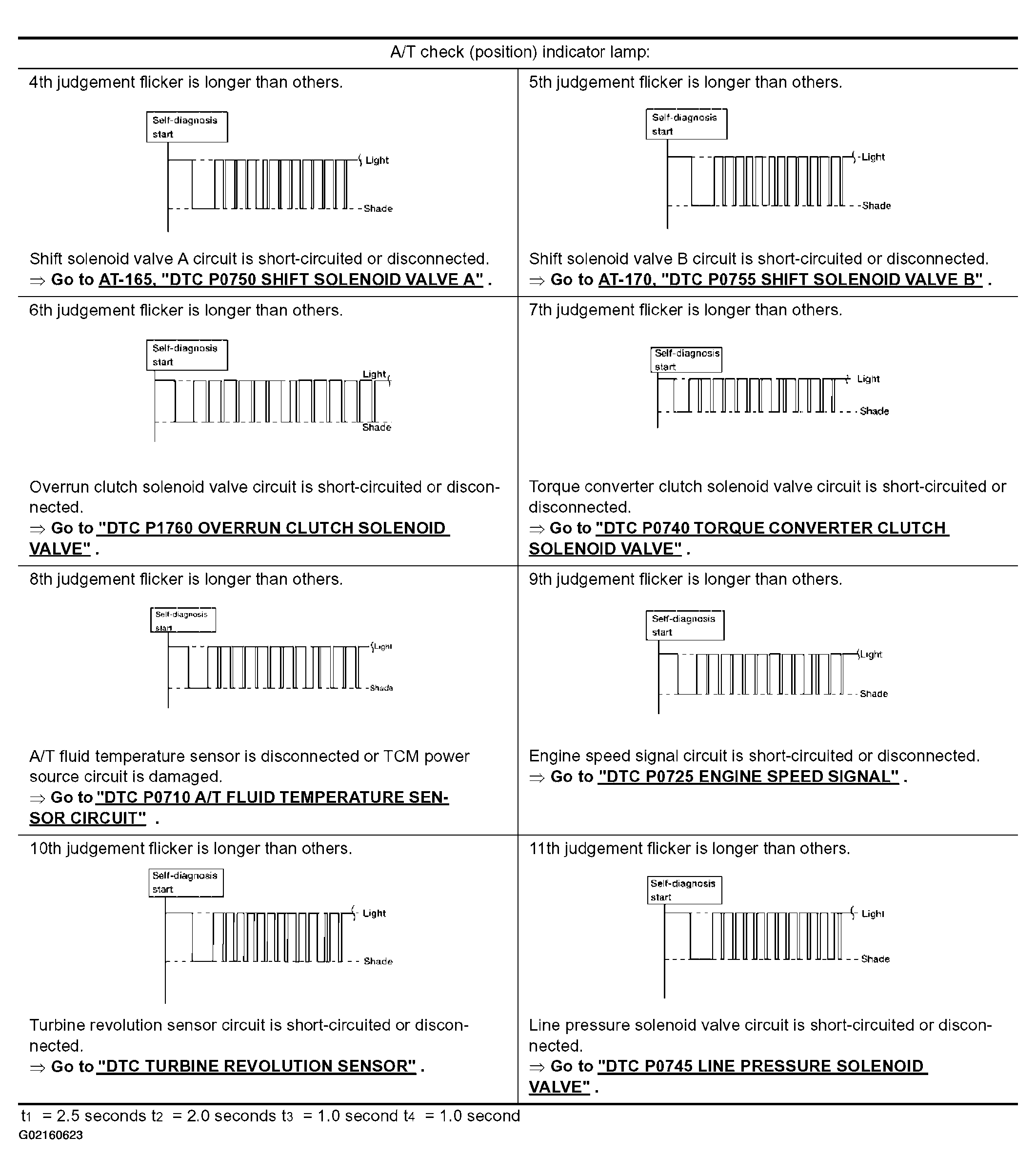

Fig 3: Self Diagnosis Code Judgment Chart A/T Check (Position) Indicator Lamp (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
