Self-Diagnostic Procedure (With Consult-II)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Touch on CONSULT-II, touch "START", and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis. If A/T is not displayed, check TCM power supply and ground circuit. Refer to "TROUBLE DIAGNOSIS FOR POWER SUPPLY ". If result is NG, Refer to "POWER SUPPLY ROUTING CIRCUIT ".

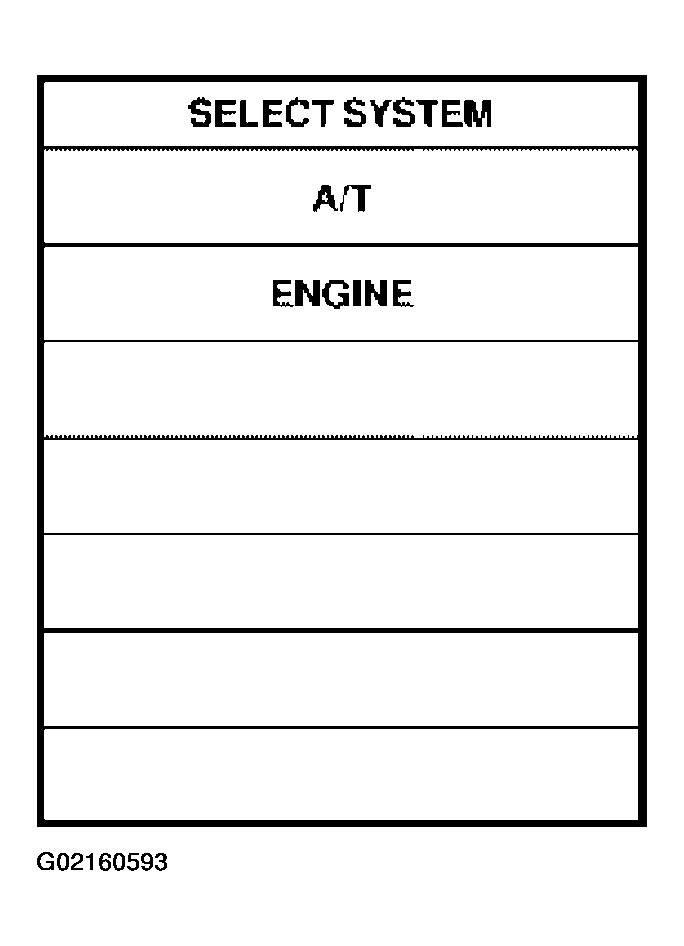

Fig 1: Consult-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation.

CONSULT-II performs "Real Time Diagnosis".

Also, any malfunction detected while in this mode will be displayed at real time.

Fig 2: Consult-II Real Time Diag Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
