Without Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON".
  2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
  3. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

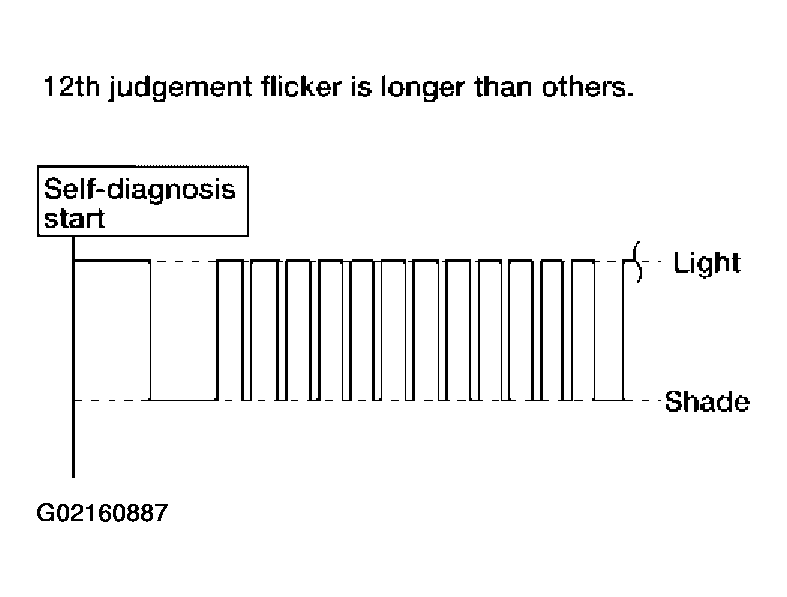

    Fig 1: Identifying DTC U1000 Warning Light Blinking Pattern
    G02160887Courtesy of NISSAN MOTOR CO., U.S.A.
