With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to "ON" position. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and wait for at least 6 seconds.
  4. If DTC is detected, Go to "DIAGNOSTIC PROCEDURE ".

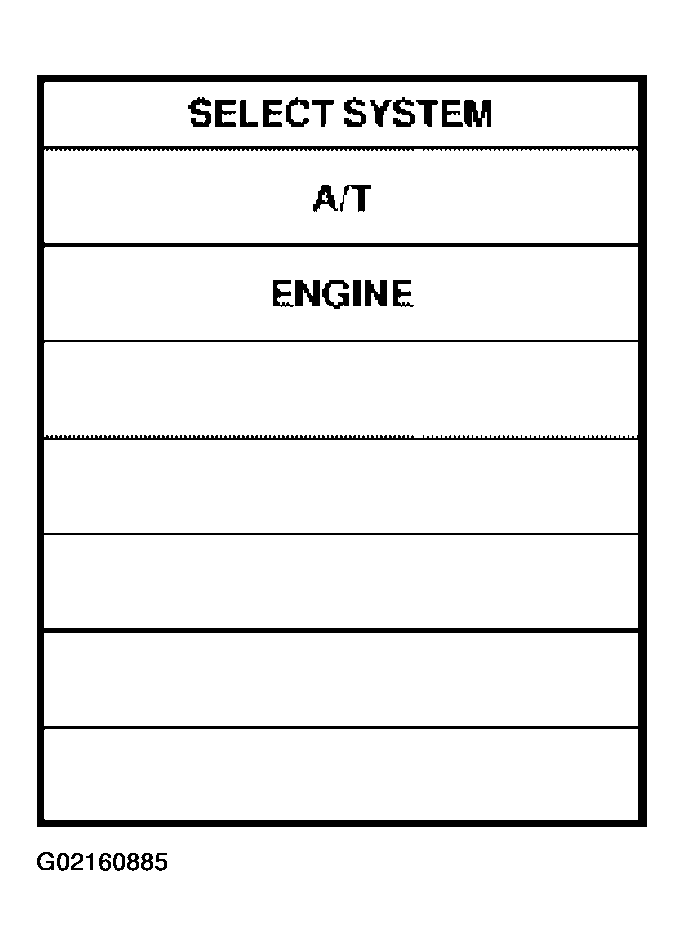

    Fig 1: Consult-II Select System Screen
    G02160885Courtesy of NISSAN MOTOR CO., U.S.A.
