On Board Diagnosis Logic

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

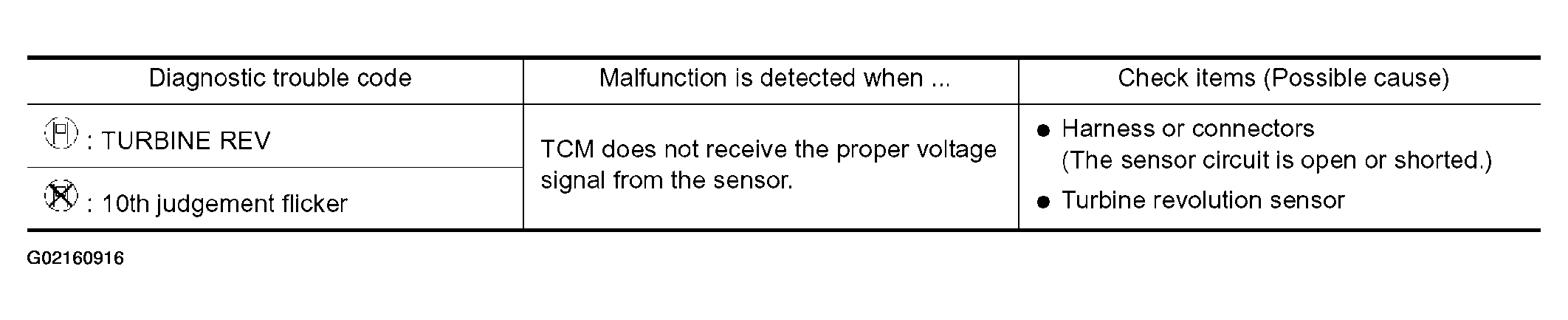

Fig 1: Turbine Revolution Sensor, 10Th Judgement Flicker Diagnosis Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
