With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  2. Touch "MAIN SIGNALS".

    Touch "START".

  3. Start engine.
  4. Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with selector lever in D position.

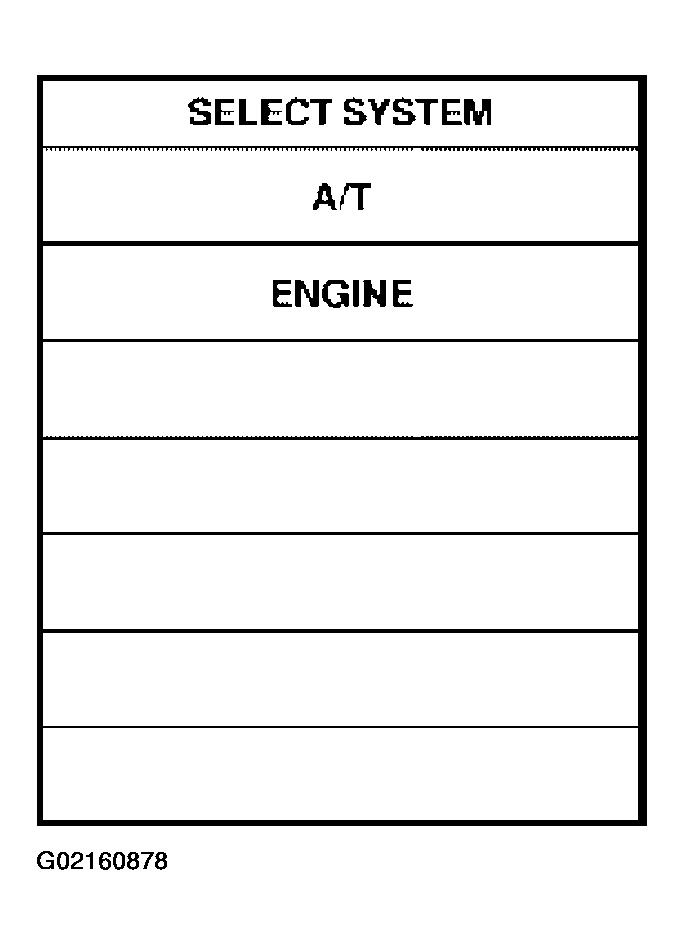

    Fig 1: Consult-II Select System Screen
    G02160878Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Release accelerator pedal completely with selector lever in 3 position.

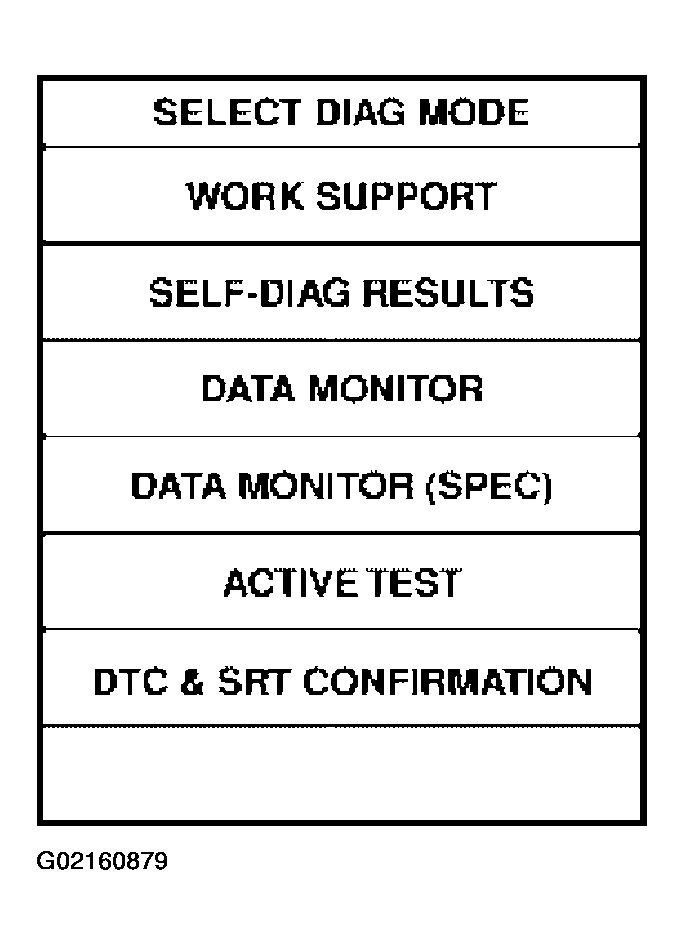

    Fig 2: Consult-II Select Diag Mode Screen (1 Of 2)
    G02160879Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Verify operation of "OVERRUN/C S/V".

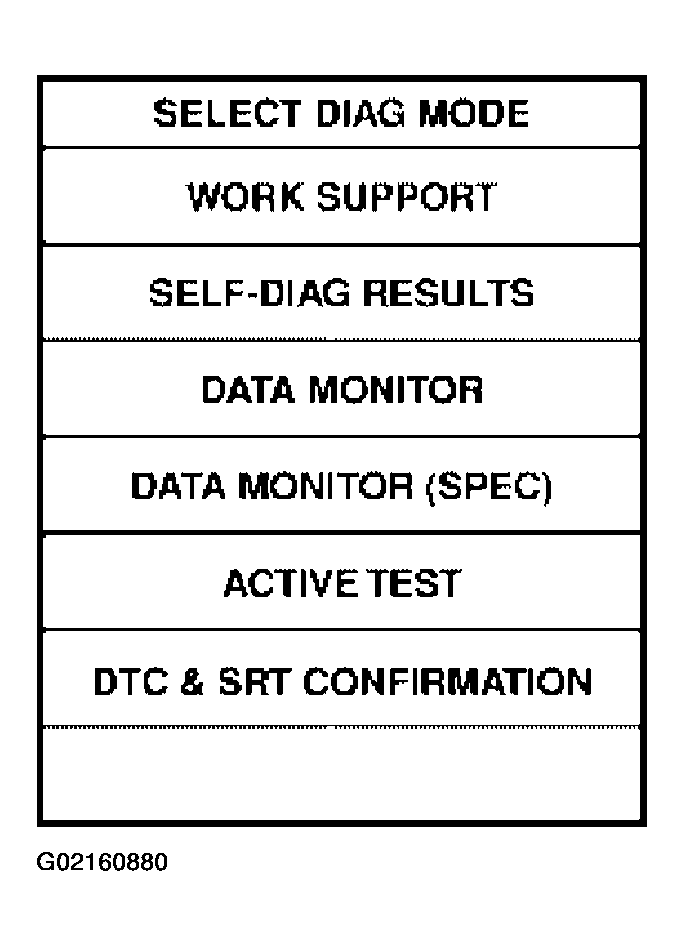

    Fig 3: Consult-II Select Diag Mode Screen (2 Of 2)
    G02160880Courtesy of NISSAN MOTOR CO., U.S.A.
