DTC P1760: Overrun Clutch Solenoid Valve: Description

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be controlled.

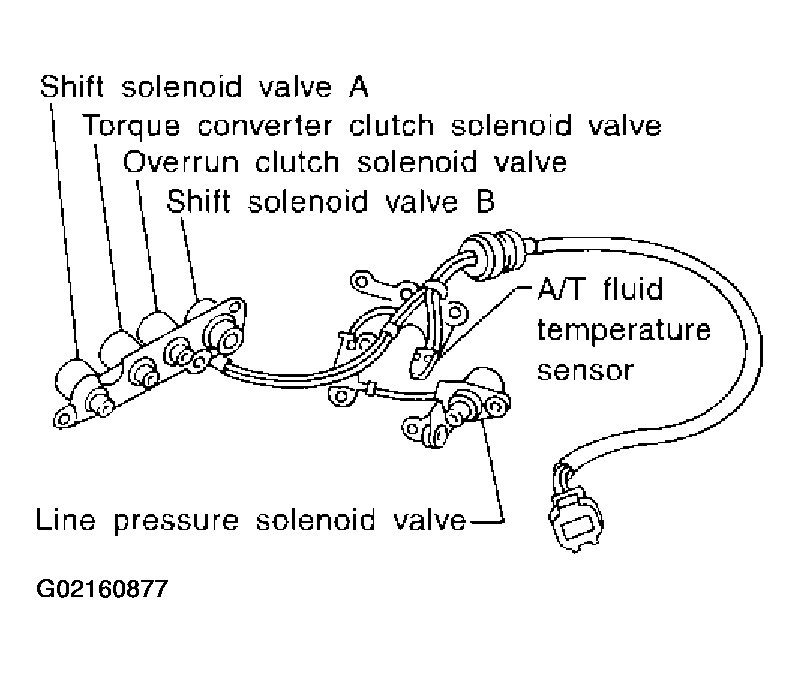

Fig 1: Identifying Overrun Clutch Solenoid Valve
G02160877Courtesy of NISSAN MOTOR CO., U.S.A.
