With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
Touch "SELECTION FROM MENU".
Touch "THRTL POS SEN". Touch "START"

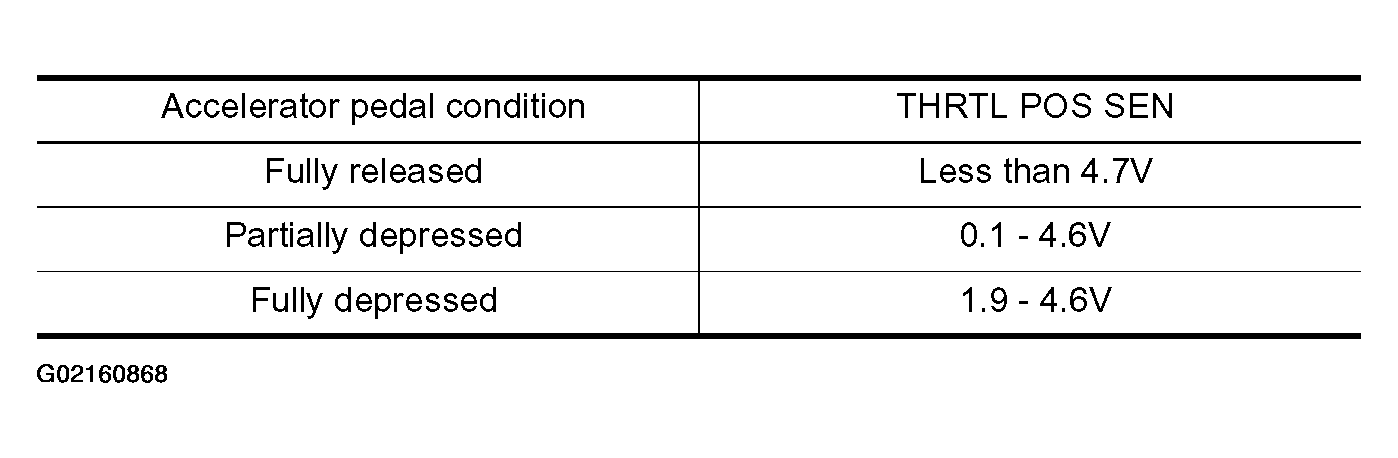

Fig 1: Accelerator Pedal Condition THRTL POS SEN Voltage Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, Go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

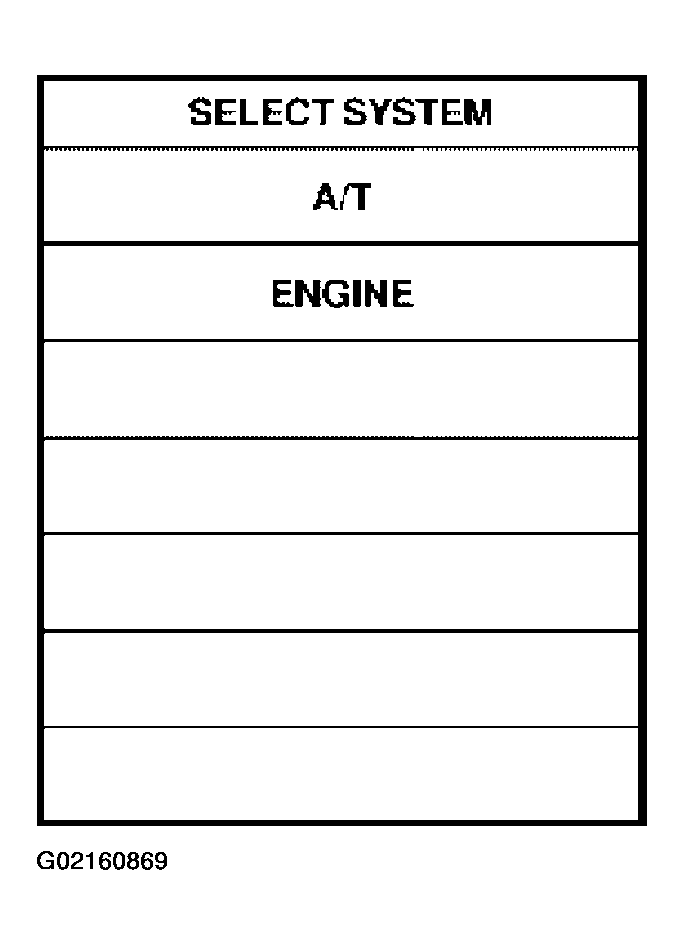

Fig 2: Consult-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Touch "SELECTION FROM MENU"
Touch "VHCL SPEED SE" and "THRTL SEN 1".
Touch "START".
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS 1: Approximately 3V or less

Selector lever: D position

If the check result is NG, Go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

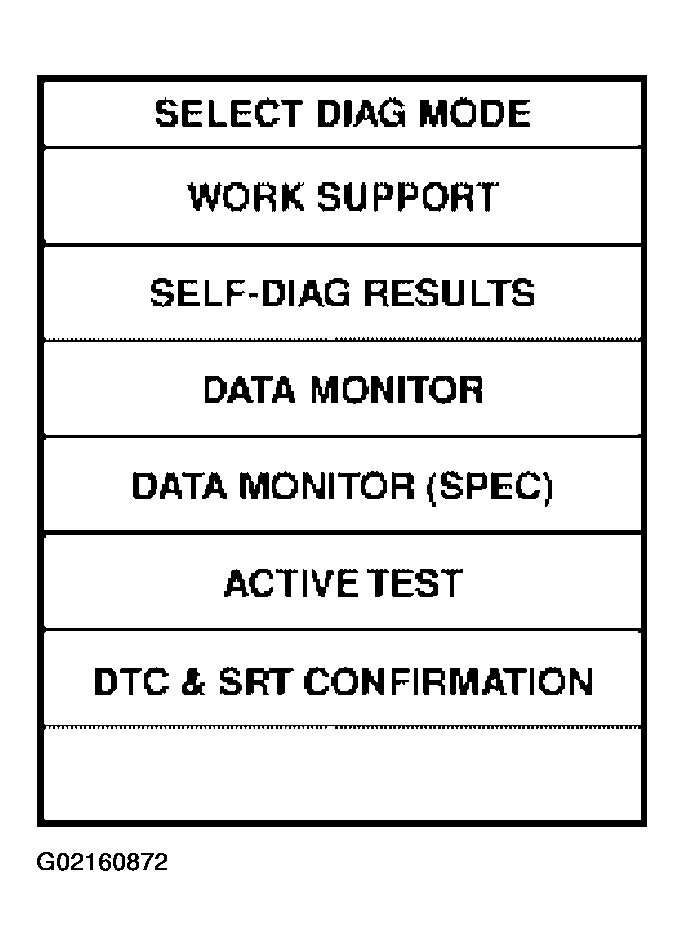

Fig 3: Consult-II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position

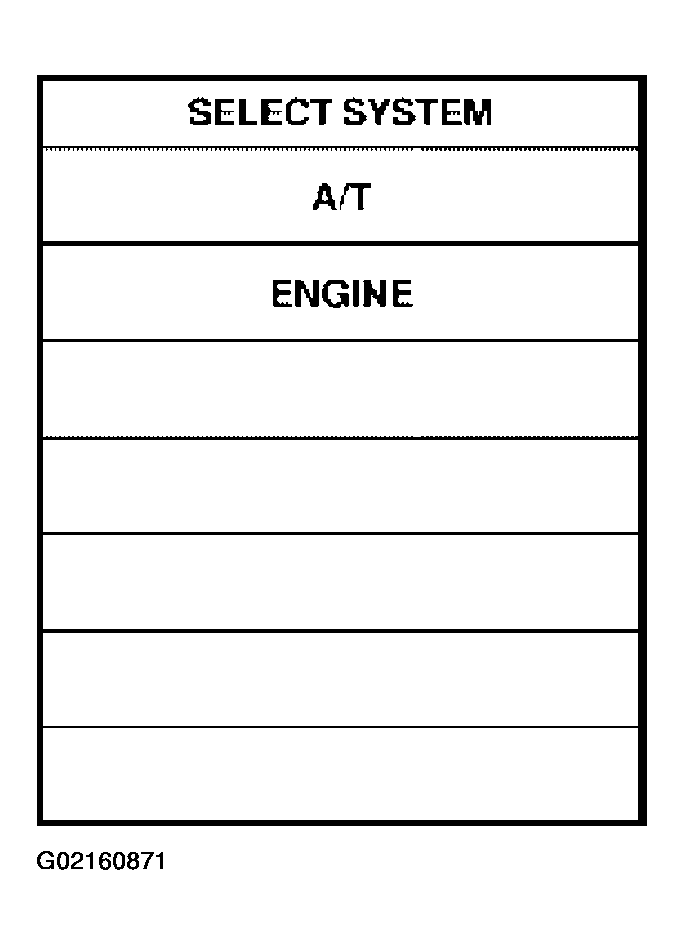

Fig 4: Consult-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

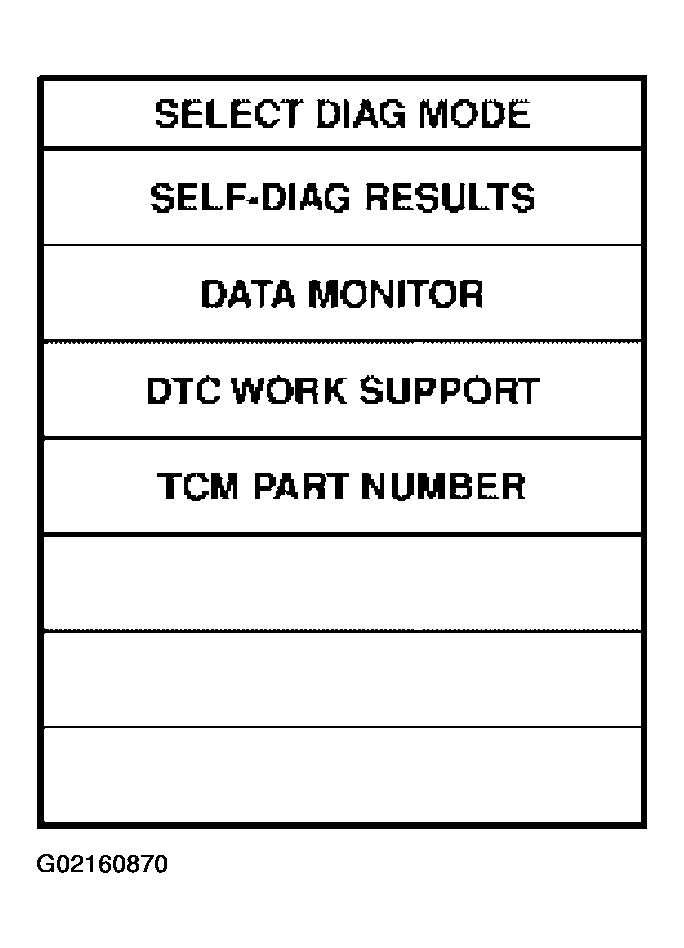

Fig 5: Consult-II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
