Wiring Diagram - AT - TCV

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

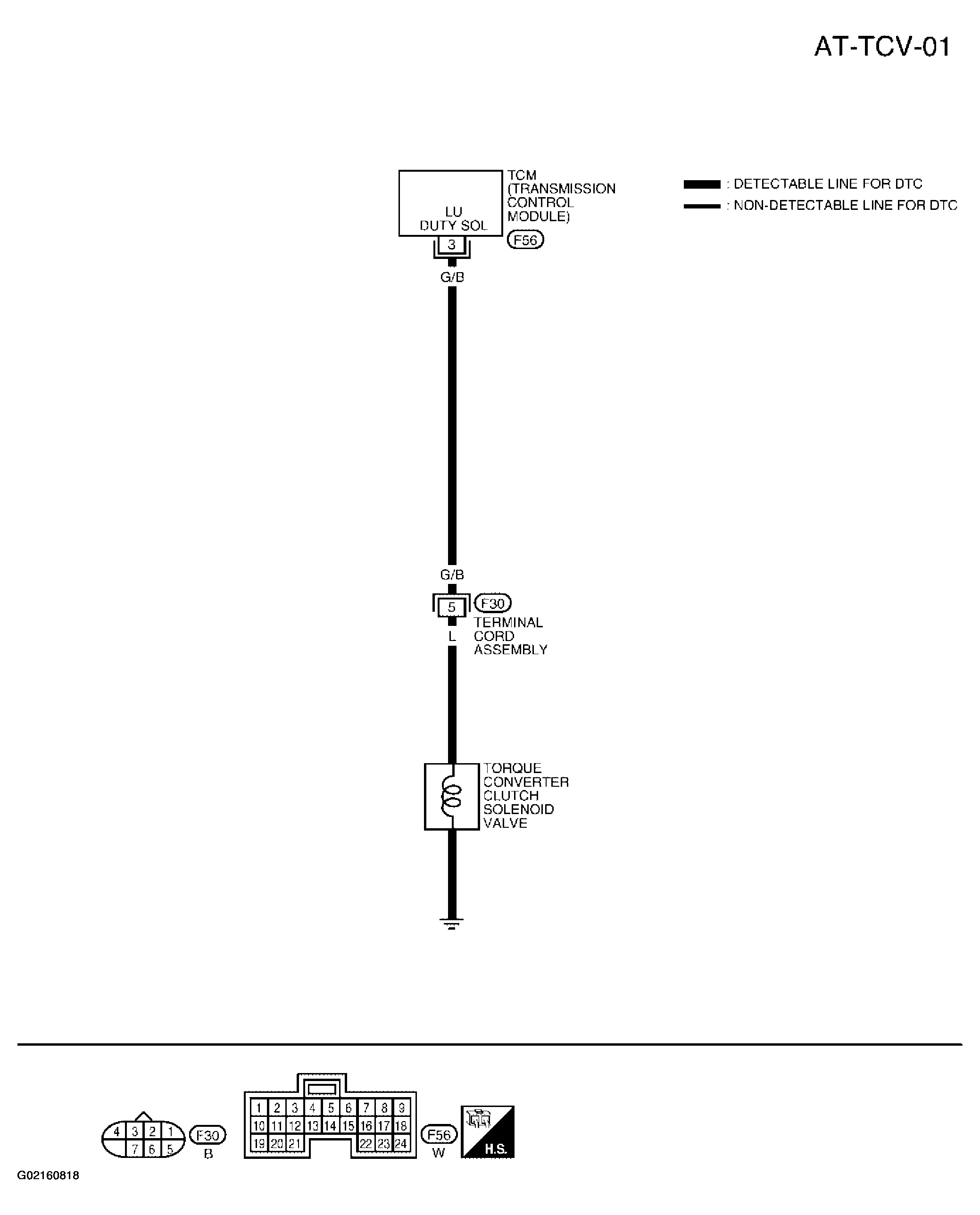

Fig 1: Wiring Diagram Torque Converter Clutch Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

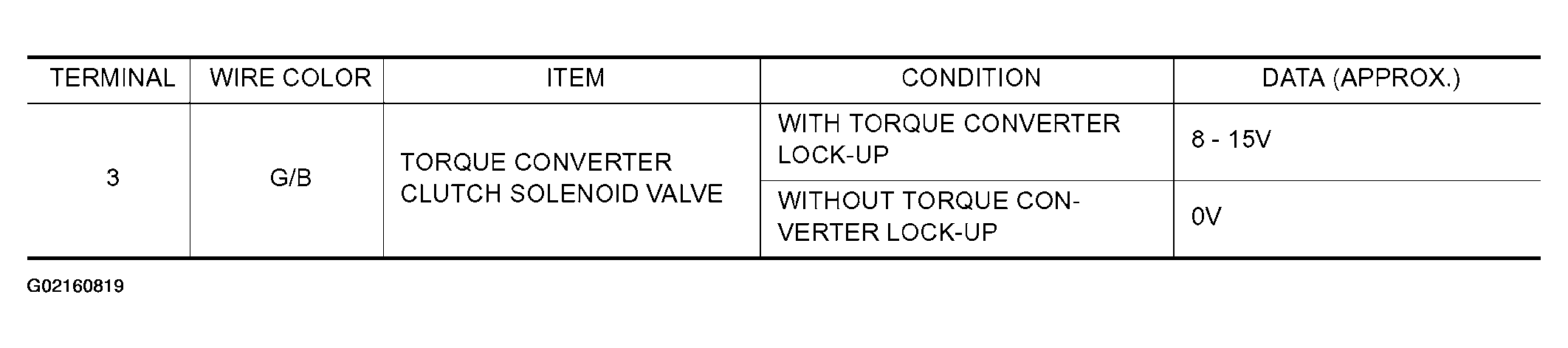

Fig 2: TCM Terminals And Reference Value Chart DTC P0740

Courtesy of NISSAN MOTOR CO., U.S.A.
