With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

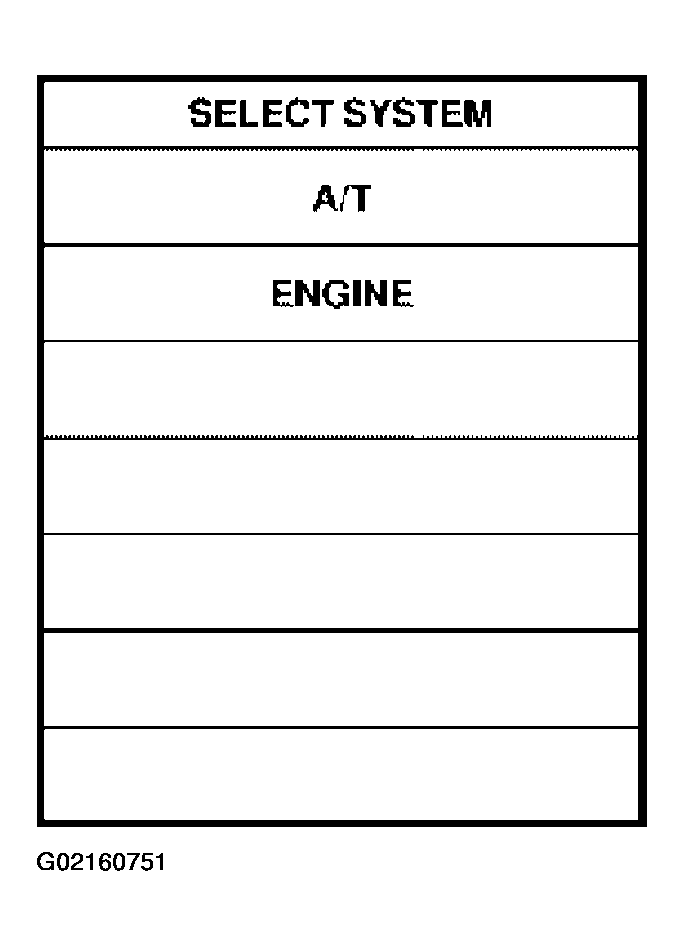

Fig 1: Consult-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

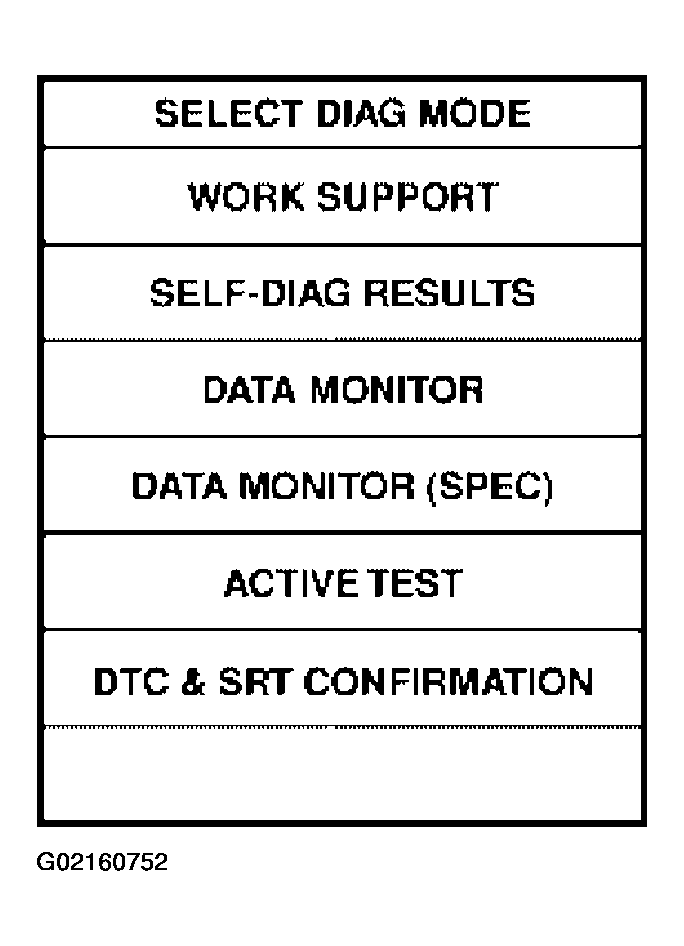

Fig 2: Consult-II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive vehicle and check for an increase of "VHCL/S SE-MTR" value.
If the check result is NG, Go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

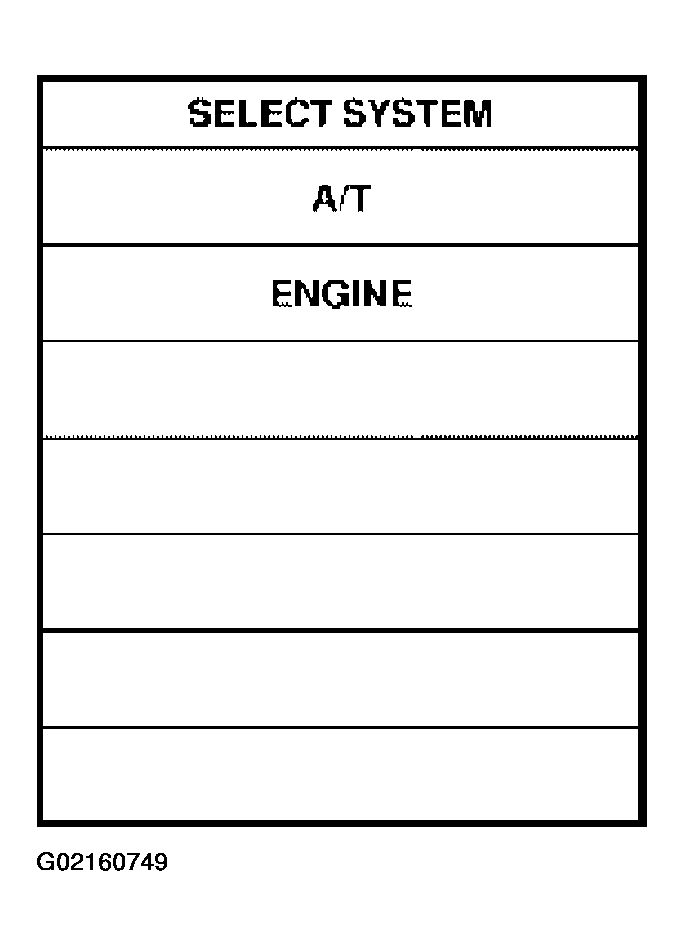

Fig 3: Consult-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

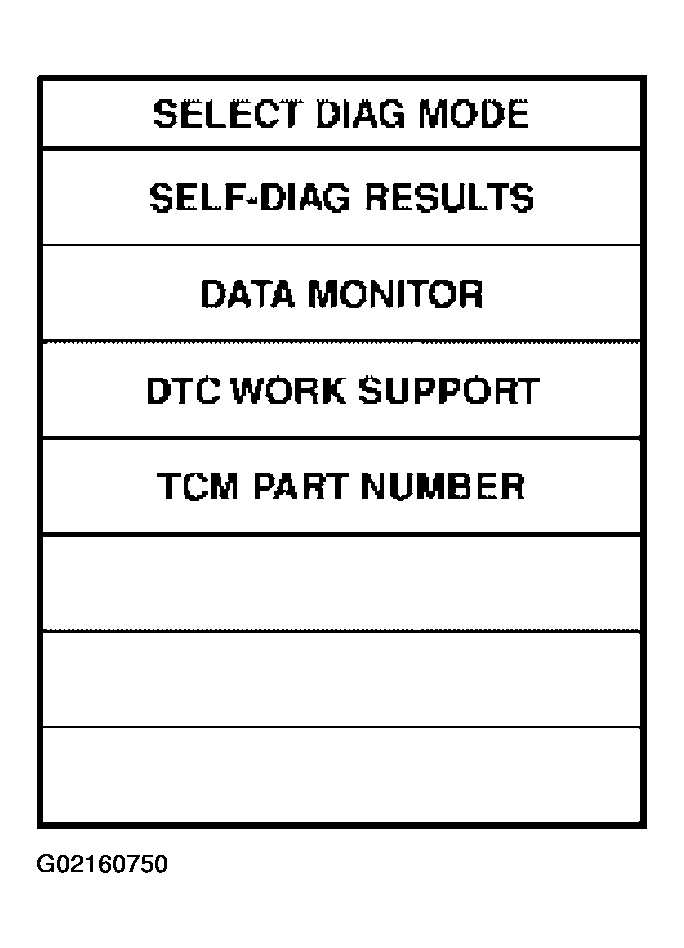

Fig 4: Consult-II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

If the check result is NG, Go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.
Maintain the following conditions for at least 5 consecutive seconds.
CMPS-RPM (REF): 3, 500 rpm or more

THRTL POS SEN: More than 1.2V

Selector lever: D position

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
