WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

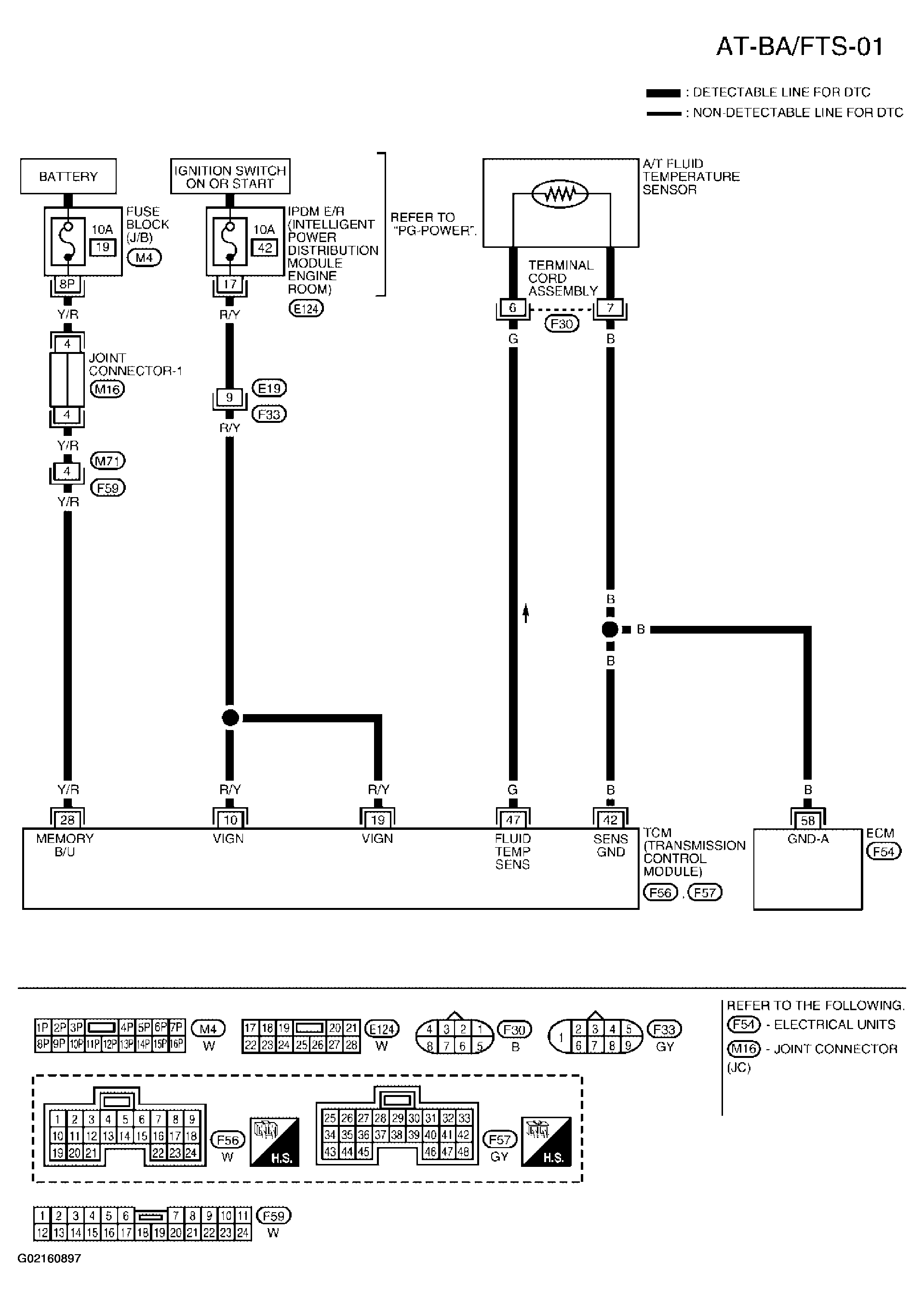

Fig 1: Wiring Diagram - AT - BA/FTS
Courtesy of NISSAN MOTOR CO., U.S.A.

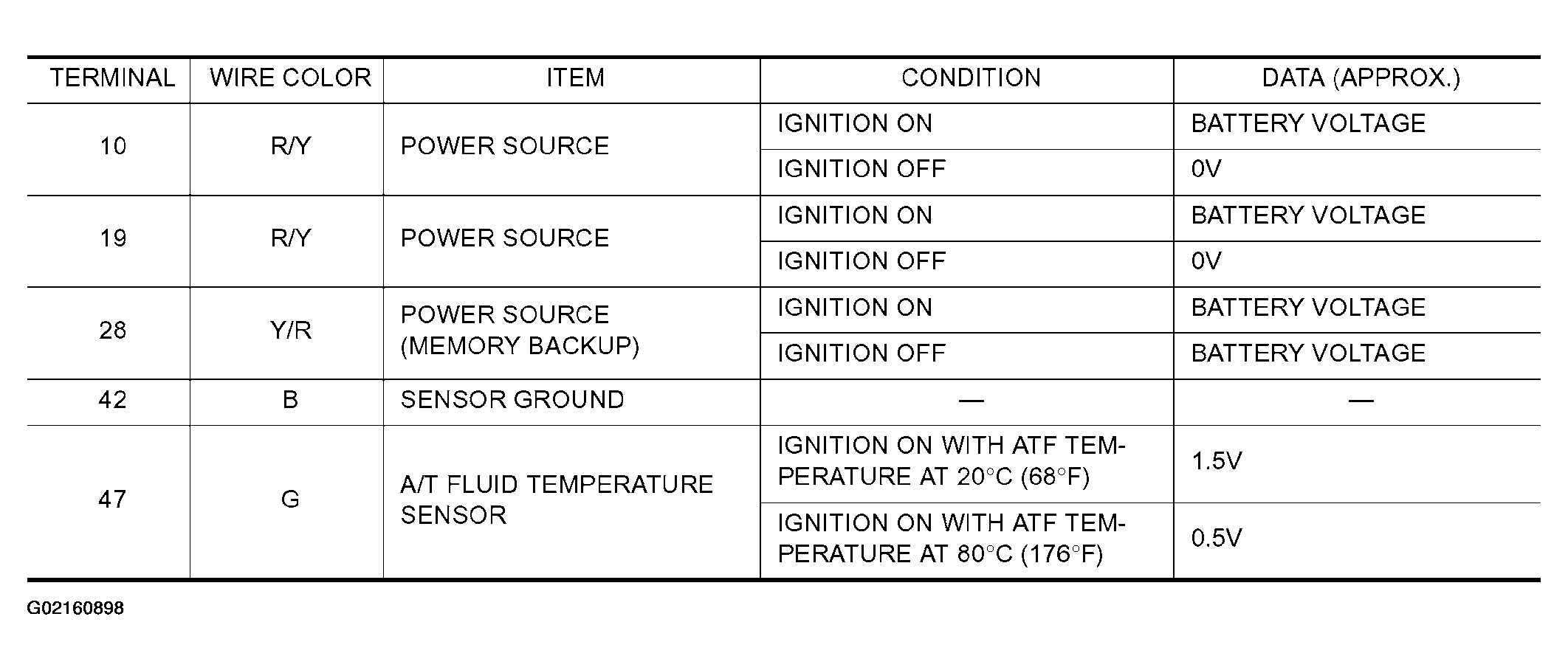

Fig 2: Terminals And Reference Value Chart (s- AT - BA/FTS)
