Without Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Select lever in D, vehicle speed higher than 20 km/h (12 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

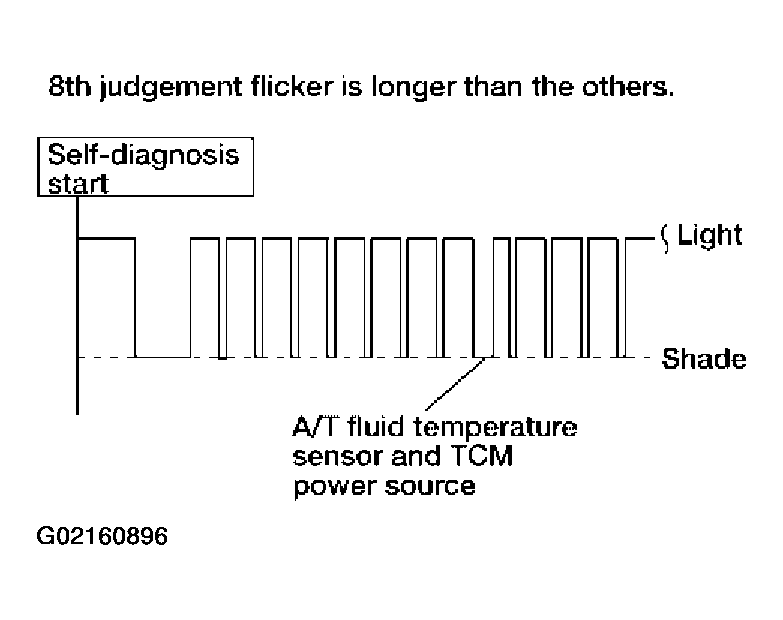

    Fig 1: Identifying 8Th Judgement Flicker
    G02160896Courtesy of NISSAN MOTOR CO., U.S.A.
