Output Shaft End Play

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Measure clearance between side cover and the end of the output shaft bearing.
Select proper thickness of adjusting shim so that clearance is within specifications.

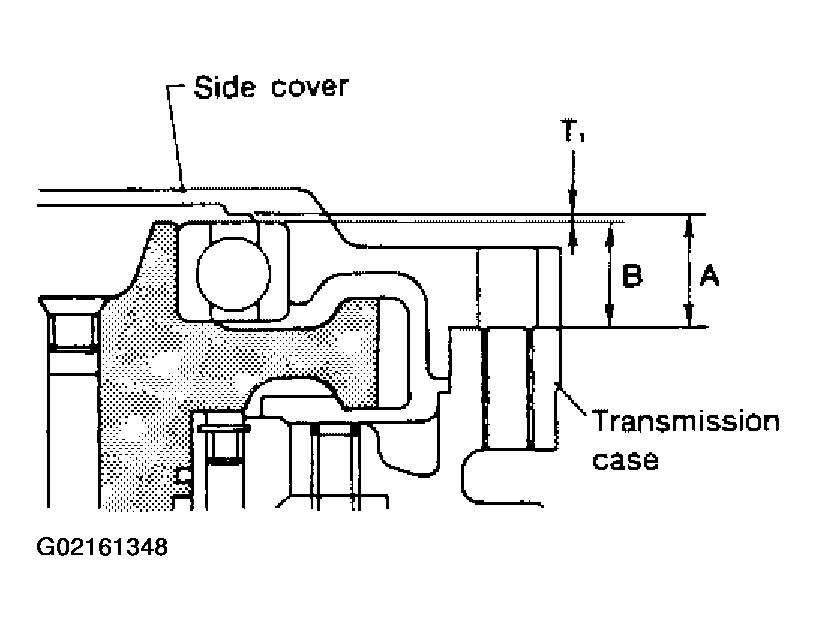

Fig 1: Identifying Clearance Between Side Cover And End Of Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

Install bearing retainer for output shaft.

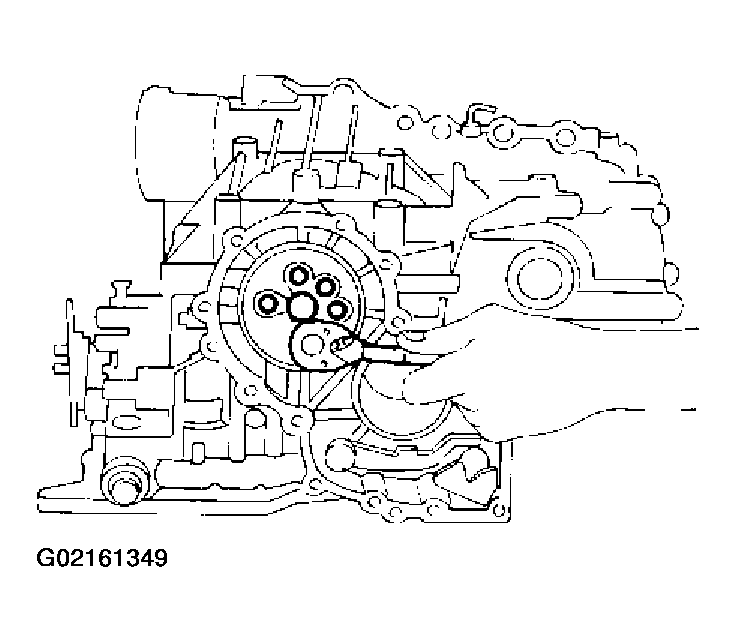

Fig 2: Installing Bearing Retainer of Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install output shaft thrust needle bearing on bearing retainer.

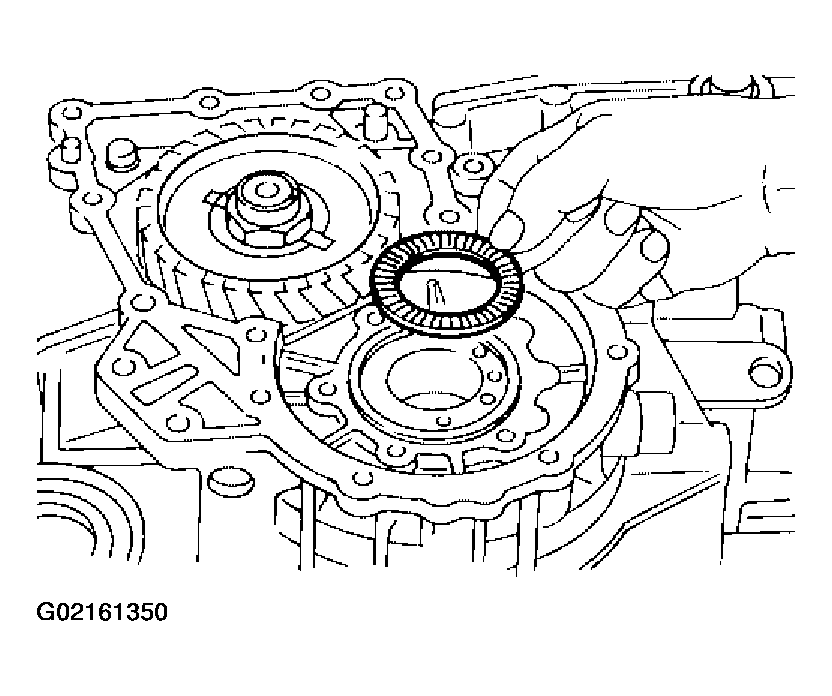

Fig 3: Installing Output Shaft Thrust Needle Bearing On Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install output shaft on transmission case.

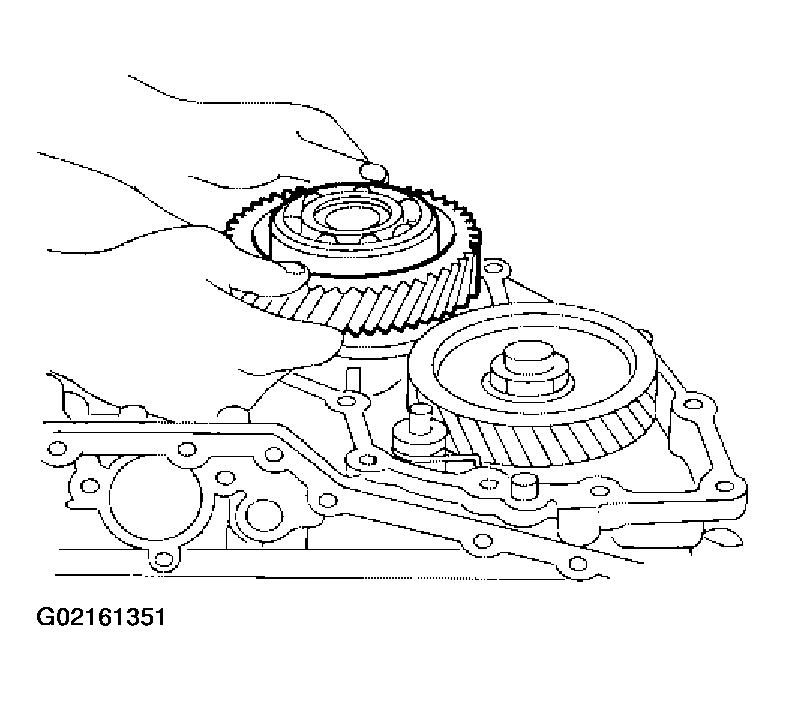

Fig 4: Installing Output Shaft Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimensions "l1" and "l2" at side cover and then calculate dimension "A".
- Measure dimension "l1" and "l2" in at least two places.
  "A" : Distance between transmission case fitting surface and adjusting shim mating surface.

  A = l1 - l2

  l2 : Height of gauge

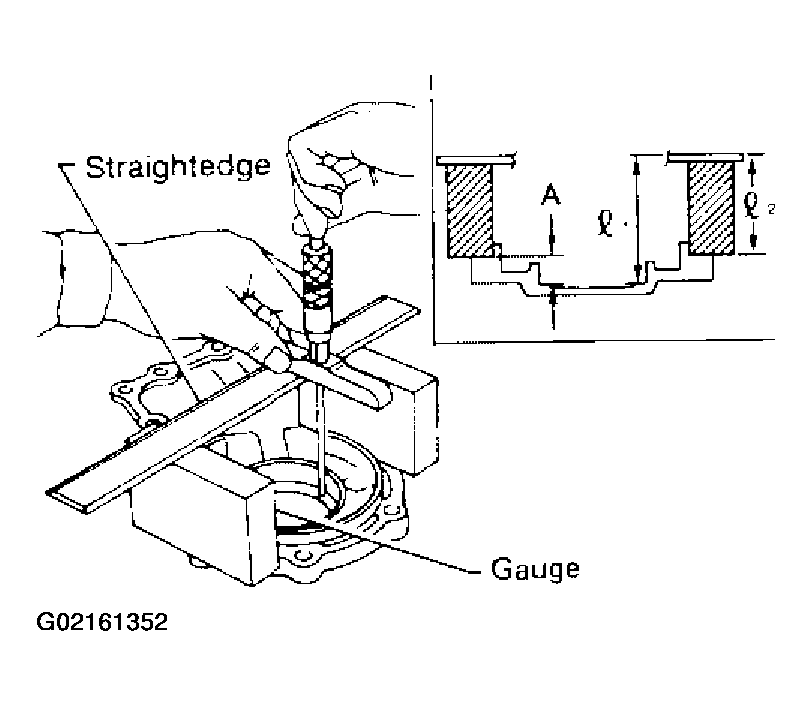

Fig 5: Identifying Distance Between Transmission Case Fitting Surface And Adjusting Shim Mating Surface
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimension "l2" and "l3" and then calculate dimension "B".
- Measure "l2" and "l3" in at least two places.
  "B" : Distance between the end of output shaft bearing outer race and the side cover fitting surface of transmission case.

  B = l2 - l3

  l2 : Height of gauge

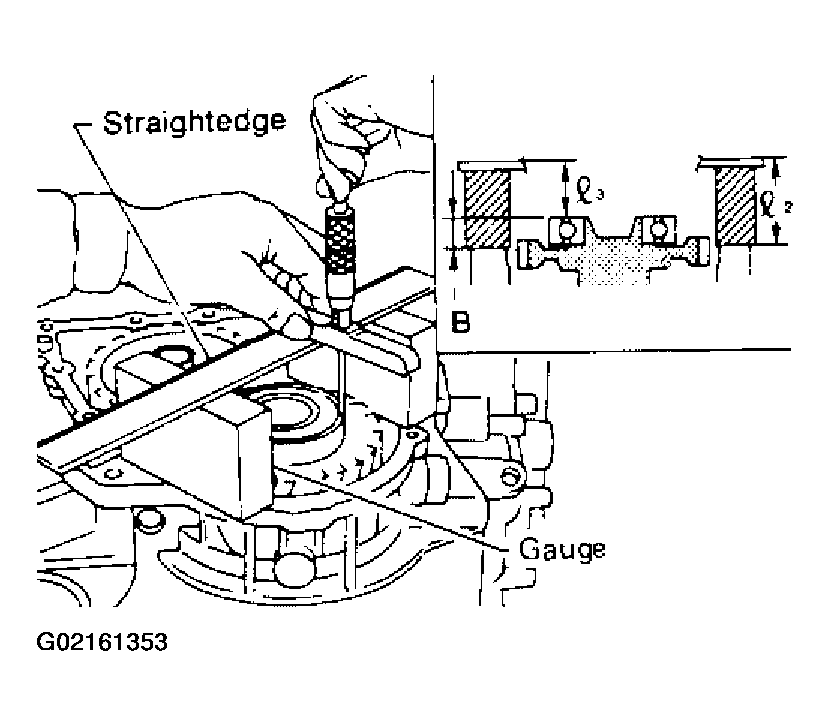

Fig 6: Identifying Distance Between End Of Output Shaft Bearing Outer Race And Side Cover Fitting Surface Of Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Select proper thickness of adjusting shim so that output shaft end play (clearance between side cover and output shaft bearing) is within specifications.
Output shaft end play (A - B) : 0 - 0.015 mm (0 - 0.0059 in)

Output shaft end play adjusting shims : Refer to " OUTPUT SHAFT ADJUSTING SHIMS ".
Install adjusting shim on output shaft bearing.

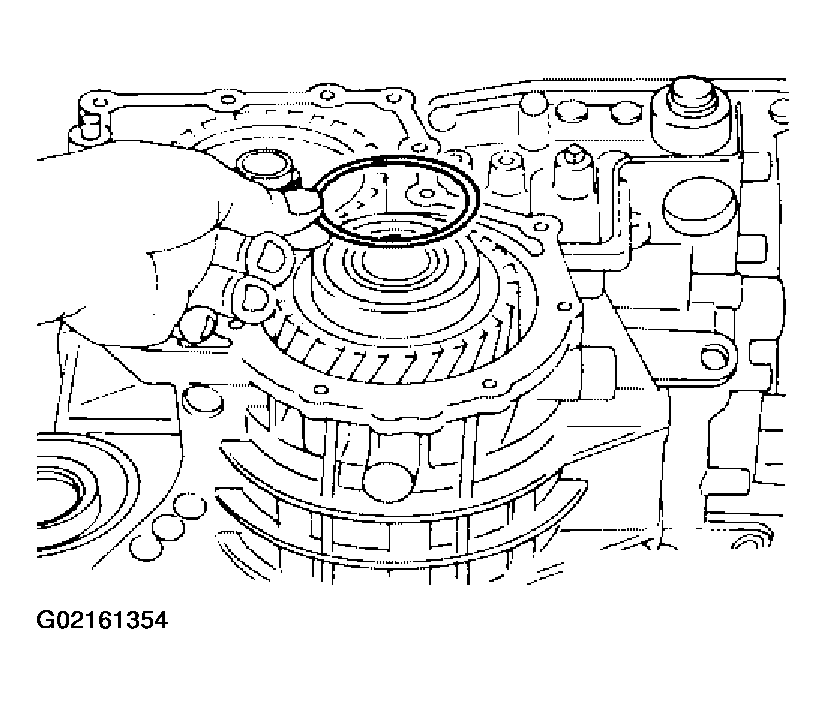

Fig 7: Installing Adjusting Shim On Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
