Input Shaft End Play

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When adjusting input shaft end play, select adjusting shim for input shaft bearing. To select adjusting shim, measure clearance between transaxle case and input shaft rear bearing.
Calculate dimension "O" (thickness or adjusting shim) using the following procedure to satisfy specification of end play for input shaft rear bearing.

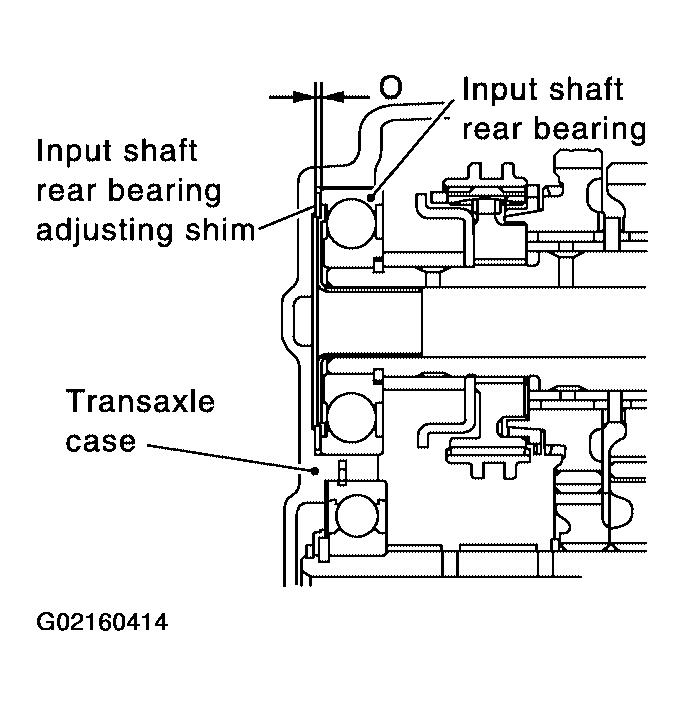

Fig 1: Identifying Input Shaft Rear Bearing Adjusting Shim Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.

End play : 0 - 0.06 mm (0 - 0.0024 in)
1. Dimension "O" = ("O ₁ " - "O ₂ (" + End play
  1. "O" : Thickness of adjusting shim
  2. "O ₁ : Distance between transaxle case end face and mounting face of adjusting shim
  3. "O ₂ : Distance between clutch housing case end face and end face of input shaft rear bearing
Adjusting Shim

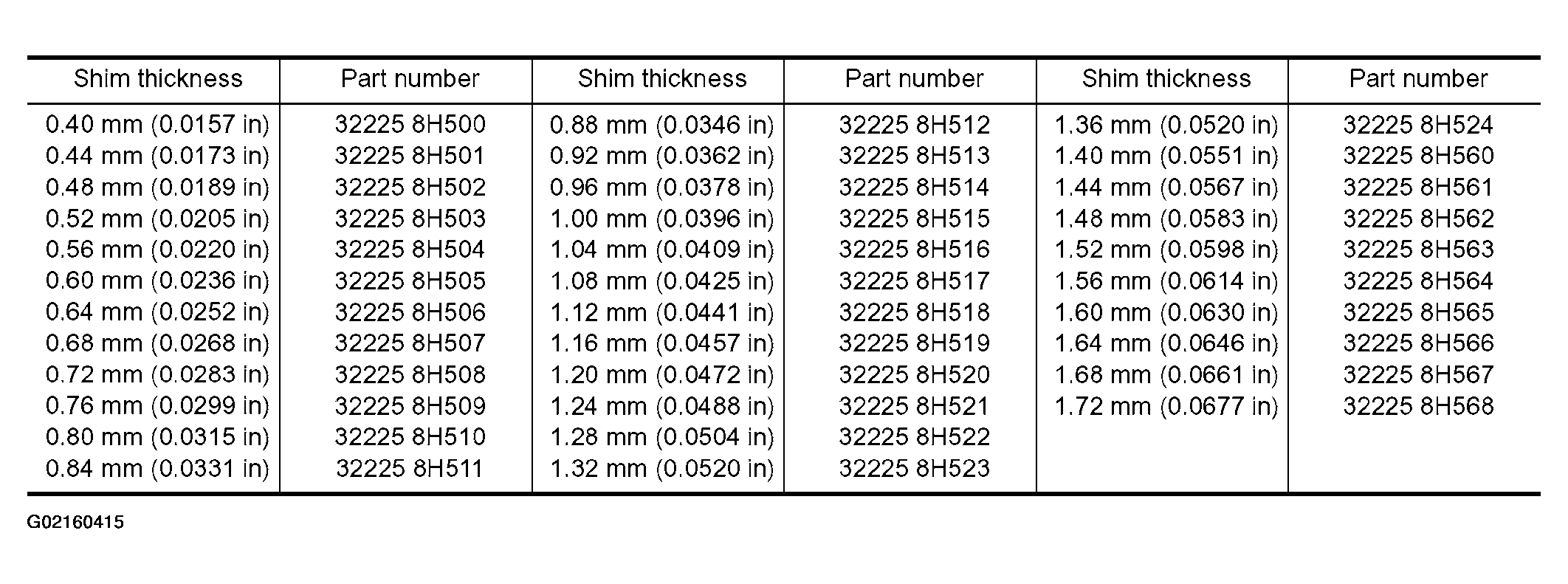

Fig 2: Input Shaft Rear Bearing Adjusting Shim Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Only 1 adjusting shim can be selected.

Using depth micrometer and straight edge, measure dimension "O₁ " between transaxle case end face and mounting face of adjusting shim as shown.

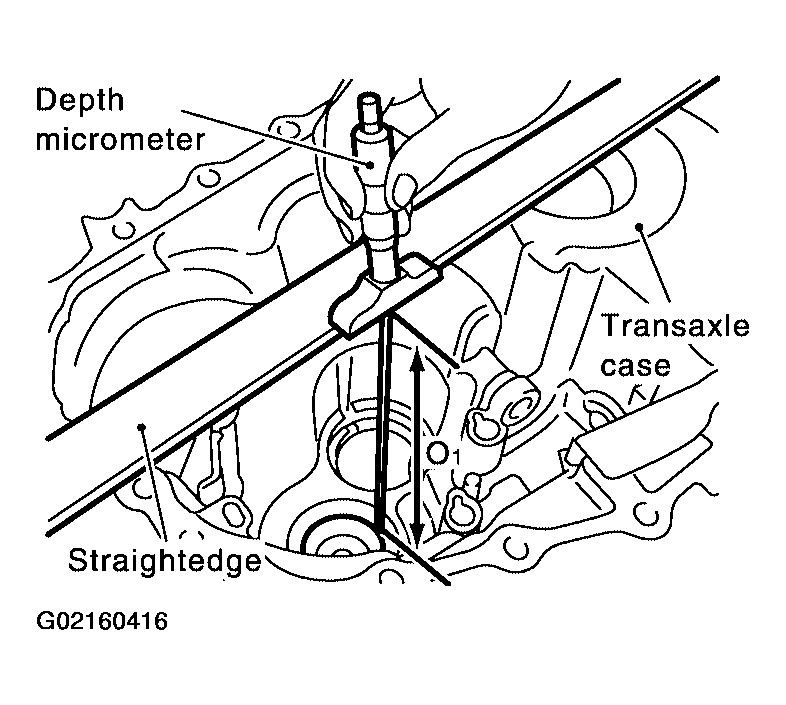

Fig 3: Measuring Dimension O1 Between Transaxle Case End Face And Mounting Face Of Adjusting Shim
Courtesy of NISSAN MOTOR CO., U.S.A.
Using depth micrometer and straight edge, measure dimension "O₂ " between clutch housing case end face and end face of input shaft rear bearing as shown.

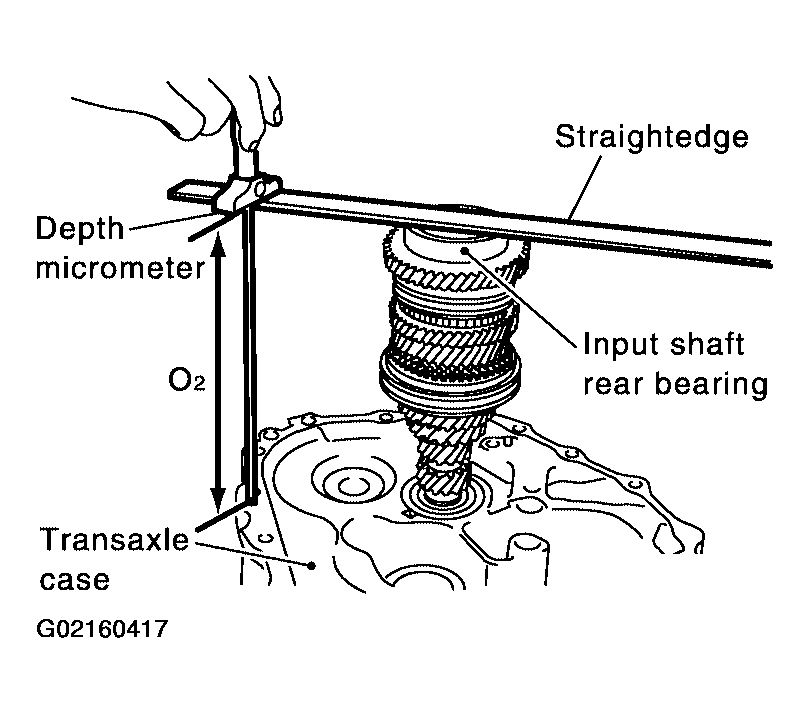

Fig 4: Measuring Dimension O2 Between Clutch Housing Case End Face And End Face Of Input Shaft Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install selected input shaft rear bearing adjusting shim onto input shaft.
