Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shaft from the transaxle body. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove oil seal with a slotted screwdriver.
    CAUTION: Be careful not to damage the case surface when removing the oil seal.

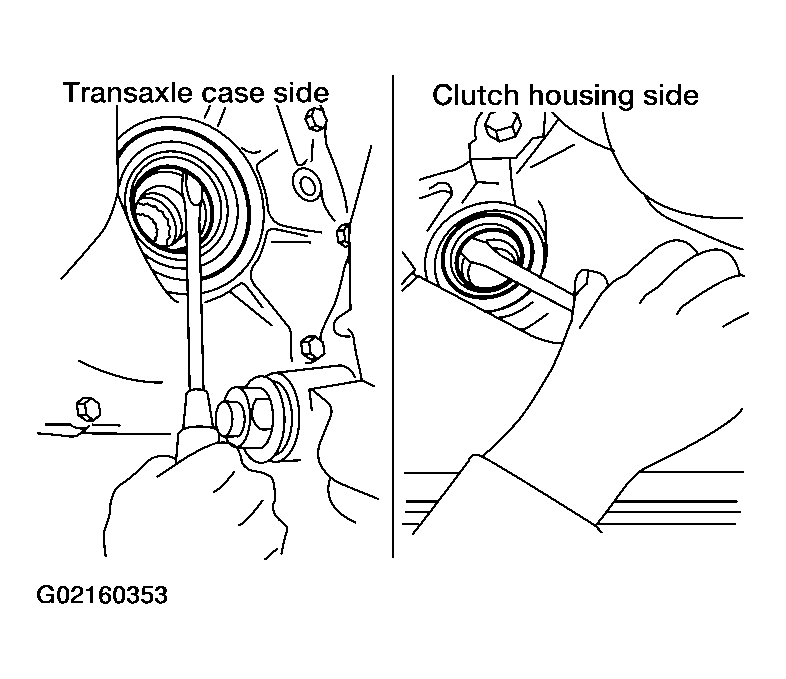

    Fig 1: Removing Side Oil Seal
    G02160353Courtesy of NISSAN MOTOR CO., U.S.A.
