Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal. Check the transaxle oil level after installation.

Using Tool (drift), drive the oil seal straight in until it protrudes from the case end equal to dimension "A" as shown.
Dimension "A" : Within 0.5 mm (0.02 in) flush with case.

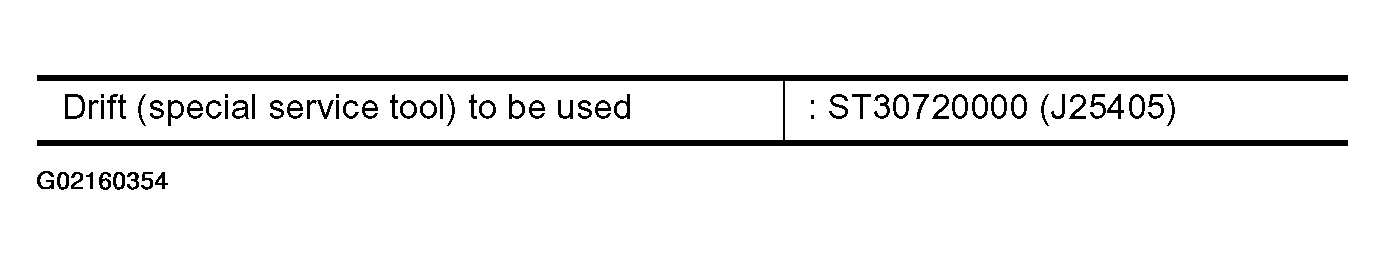

Fig 1: Tool (Drift)
Courtesy of NISSAN MOTOR CO., U.S.A.

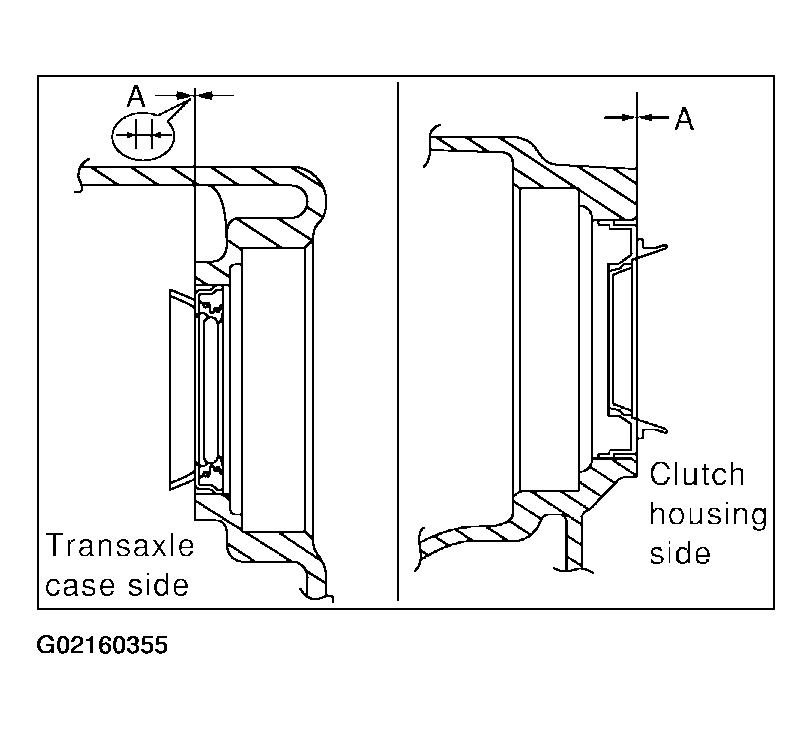

Fig 2: Identifying Side Oil Seal Correct Installation Position
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When installing oil seals, apply multi-purpose grease to oil seal lips.
- Oil seals are not reusable. Never reuse them.
Check the transaxle oil level after installation. Refer to "CHECKING ".
