Section 784 (Manual Transmission)
>>
Service Data And Specifications (SDS)
>>
Available Thrust Washer
>>
Differential Side Gear Thrust Washer
Differential Side Gear Thrust Washer
WARNING:
This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

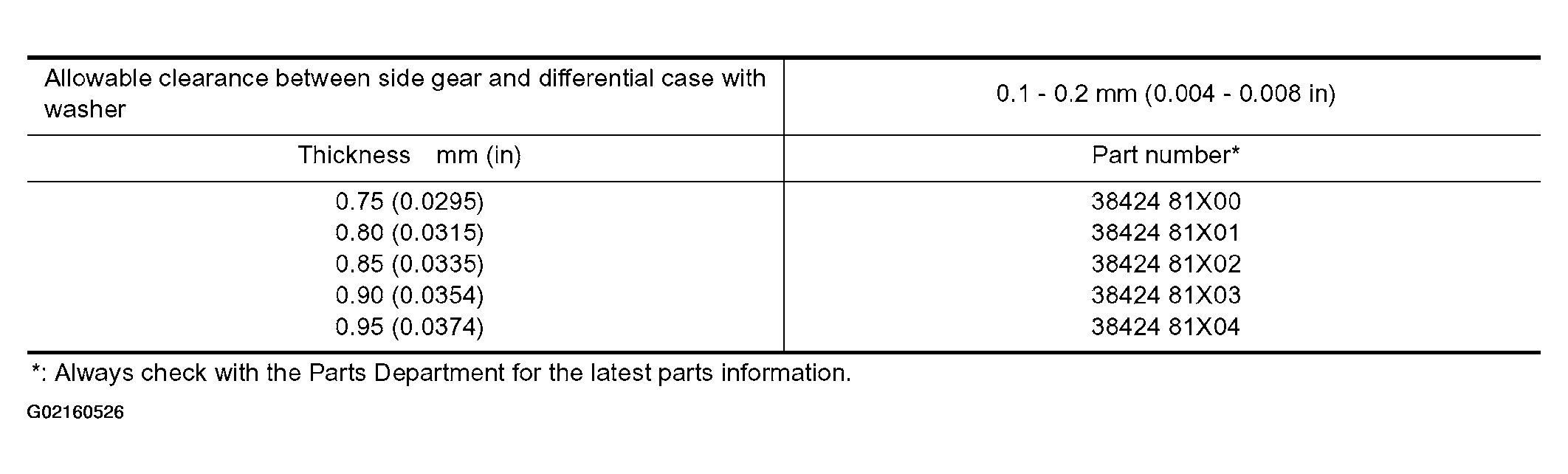

Fig 1: Differential Side Gear Thrust Washer Specification Index
Courtesy of NISSAN MOTOR CO., U.S.A.
