Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Paying attention to following work, assemble in reverse order of disassembly.

CAUTION:
  • Be careful with orientation of insert spring.

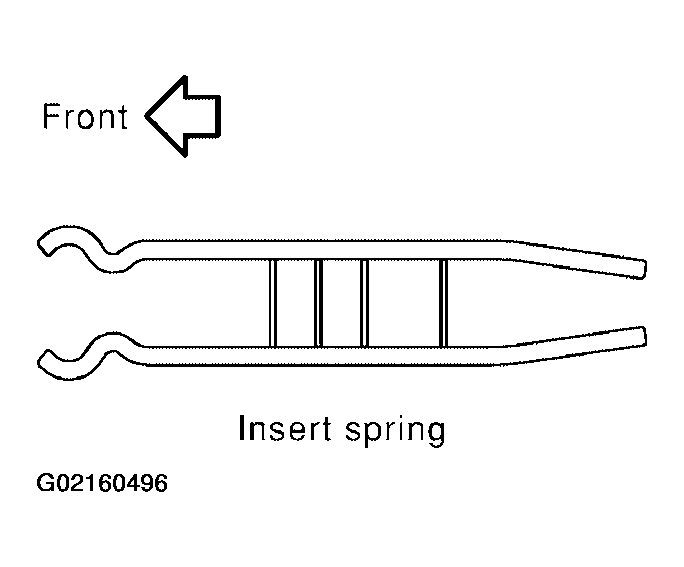

    Fig 1: Identifying Correct Orientation Of Insert Spring
    G02160496Courtesy of NISSAN MOTOR CO., U.S.A.
