Baulk Ring Clearance

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check items below. If necessary, replace them with new ones.

Press baulk ring against cone, and measure clearance between baulk ring and cone. If measurement is below limit, replace it with a new one.
Clearance
1. Standard value
  1. 3rd and 4th : 0.09 - 1.45 mm (0.035 - 0.0571 in)
  2. 5th : 0.95 - 1.4 mm (0.0374 - 0.055 in)
2. Limit value : 0.7 mm (0.028 in)

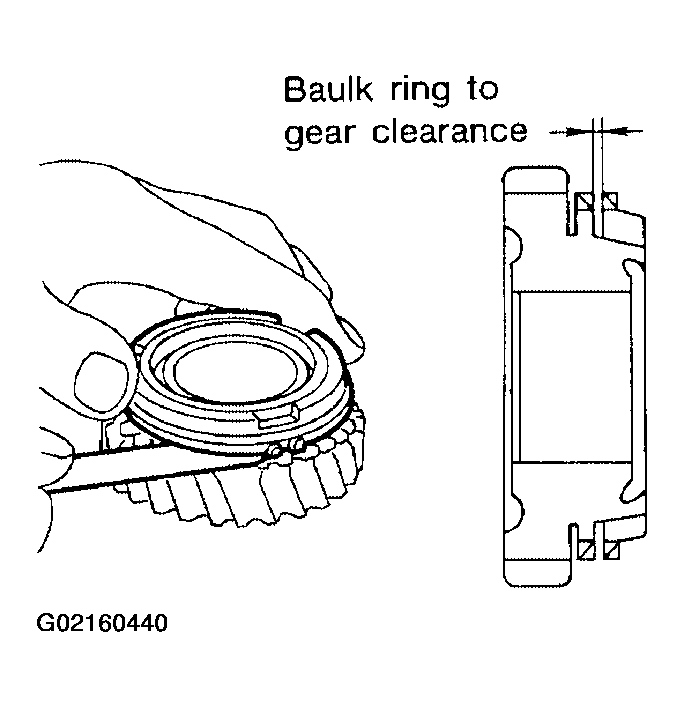

Fig 1: Measuring Clearance Between Baulk Ring And Cone
Courtesy of NISSAN MOTOR CO., U.S.A.
