Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install 3rd needle bearing.
Install 3rd input gear and 3rd baulk ring.
Install spread spring, shifting insert and 3rd-4th synchronizer hub onto 3rd-4th coupling sleeve.
CAUTION:
- Be careful with orientation of synchronizer hub.
- Do not reuse the 3rd-4th synchronizer hub.

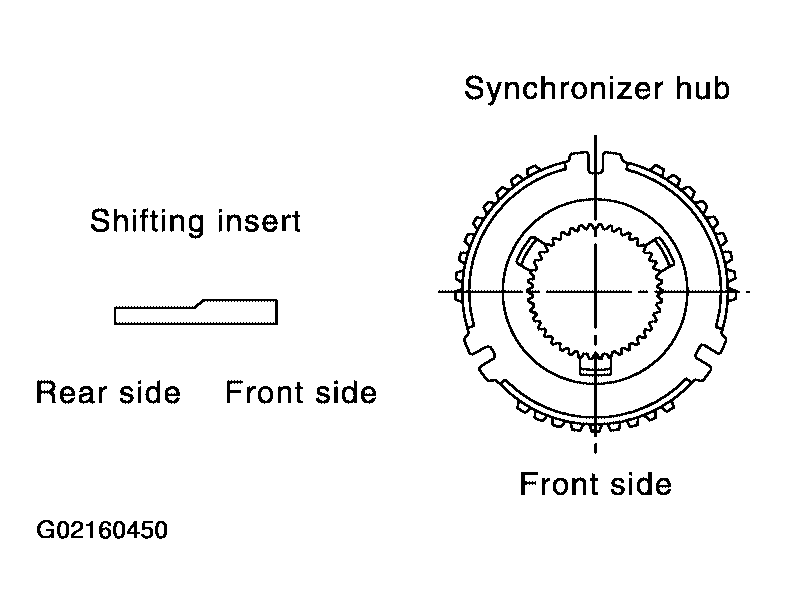

  Fig 1: Identifying Correct Orientation Of 3rd-4th Synchronizer Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.

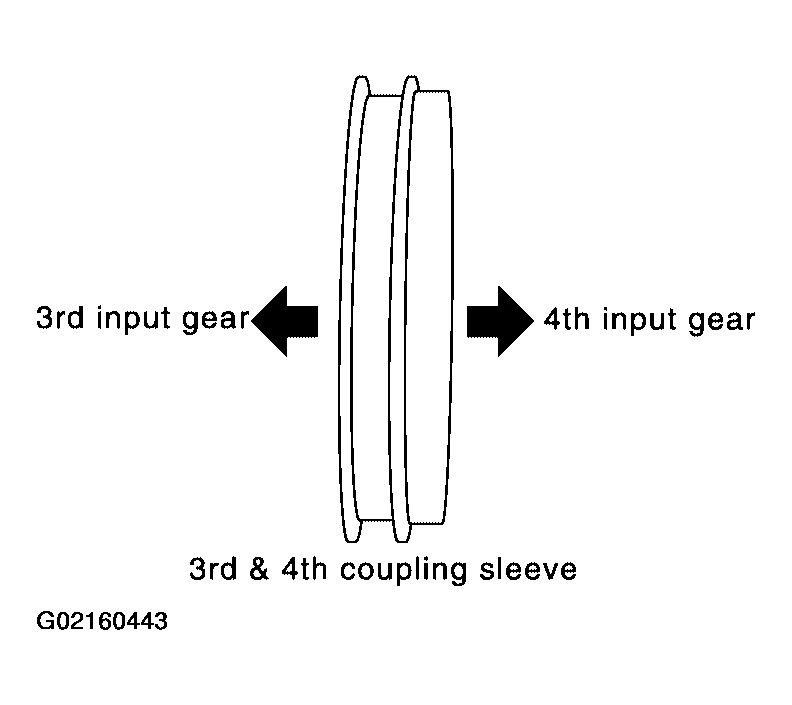

- Be careful with orientation of coupling sleeve.

  Fig 2: Identifying Correct Orientation Of 3rd-4th Coupling Sleeve
  Courtesy of NISSAN MOTOR CO., U.S.A.

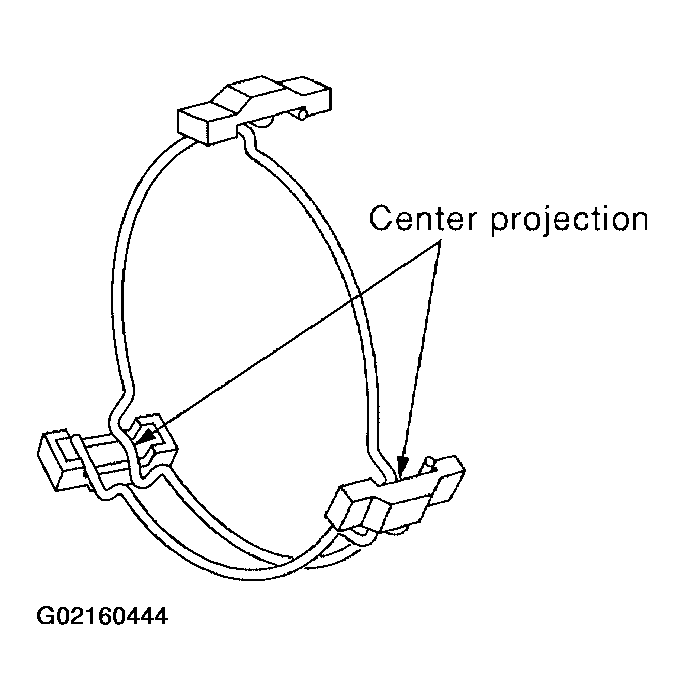

- Be sure not to hook ends of 2 spread springs (front and back have two each) on same shifting insert.

  Fig 3: Identifying Correct Installing Position Of 3rd-4th 2 Spread Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install 3rd-4th synchronizer hub assembly.
CAUTION: Align grooves of shifting insert and 3rd baulk ring.

Fig 4: Installing 3rd-4th Synchronizer Hub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

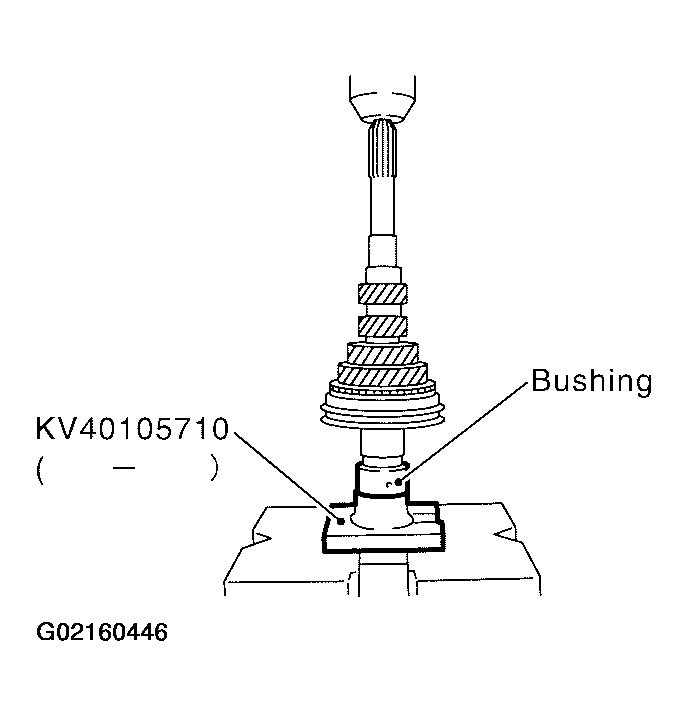

Install 4th bushing.

Fig 5: Installing 4th Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install 4th baulk ring.
Install 4th input gear and 4th needle bearing.
Select thrust washer so that dimension "C₂ " satisfies standard below. Then install it onto input shaft.
Standard for dimension "C ₂ " : 154.7 - 154.8 mm (6.091 - 6.094 in)

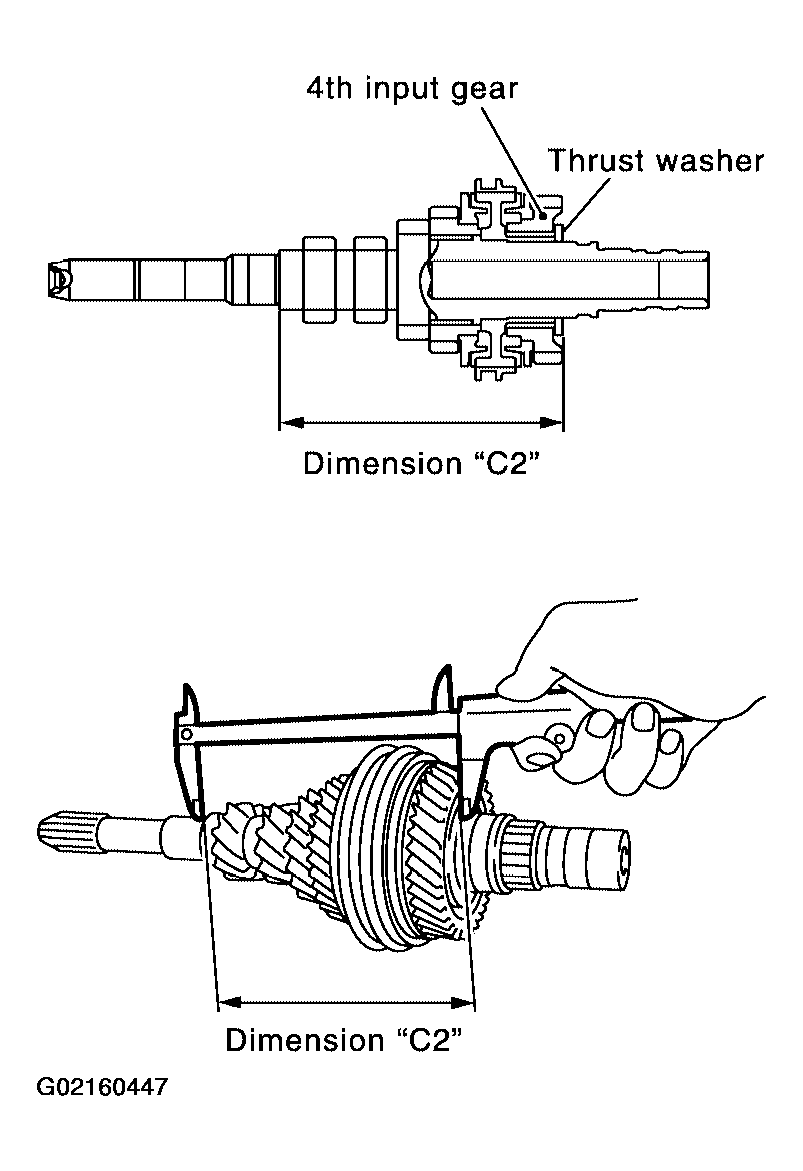

Fig 6: Identifying Dimension "C2" For Selecting Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.

thrust washer

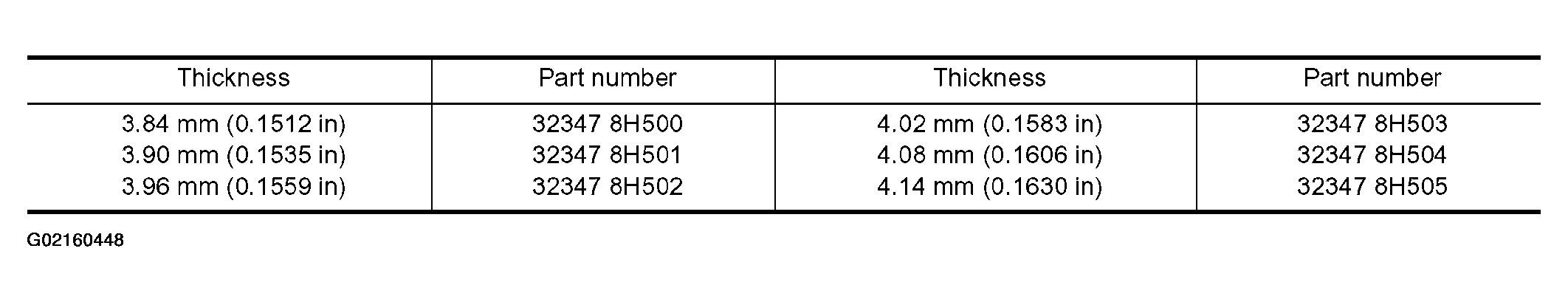

Fig 7: 4th Input Gear Thrust Washer Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Only one thrust washer can be selected.

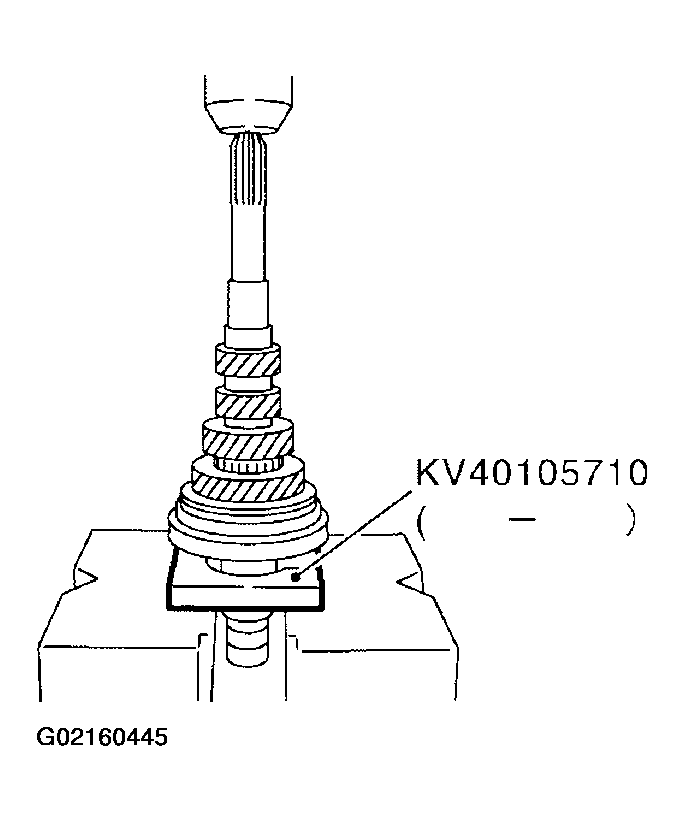

Install 5th bushing.

Fig 8: Installing 5th Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install 5th needle bearing and 5th input gear.
Install 5th baulk ring.
Install spread spring, shifting insert and 5th synchronizer hub onto 5th coupling sleeve.
CAUTION:
- Be careful with orientation of synchronizer hub and shifting insert.

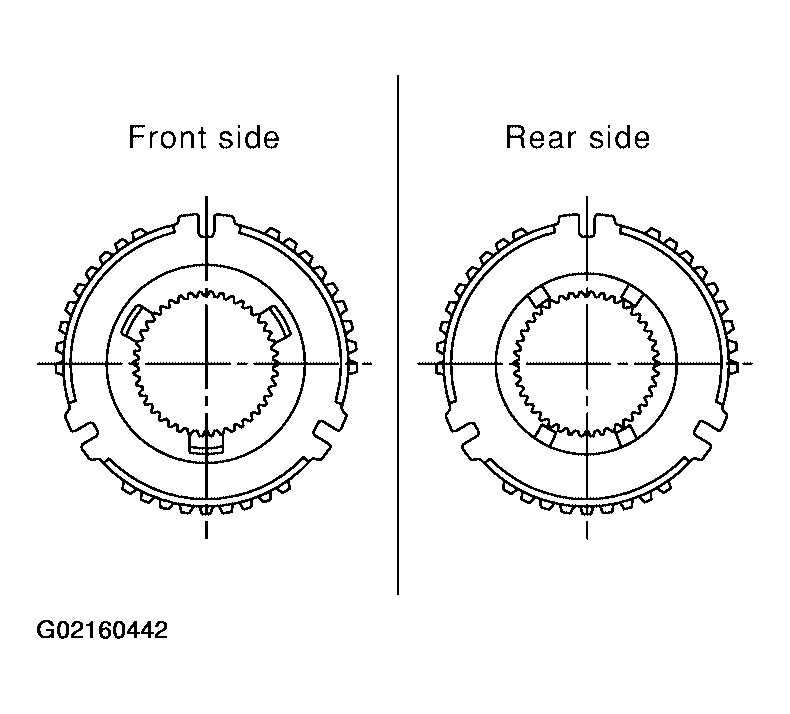

  Fig 9: Identifying Correct Orientation Of 5th Synchronizer Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Be careful with orientation of coupling sleeve.

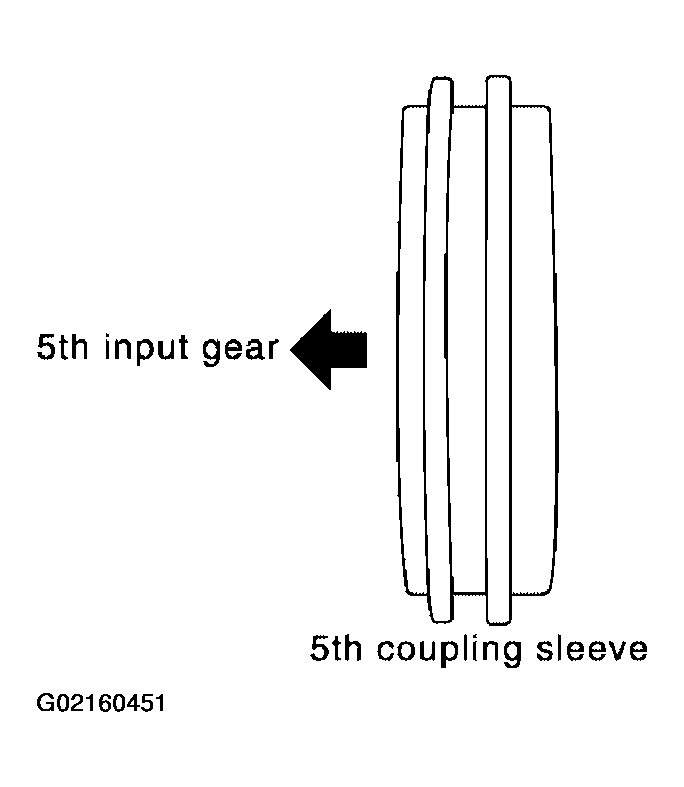

  Fig 10: Identifying Correct Orientation Of 5th Coupling Sleeve
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Be sure not to hook ends of 2 spread springs (front and back have two each) on same shifting insert.

  Fig 11: Identifying Correct Installing Position Of 5th 2 Spread Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install 5th synchronizer hub assembly.
CAUTION: Align grooves of 5th shifting insert and 5th baulk ring.

Fig 12: Installing 5th Synchronizer Hub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

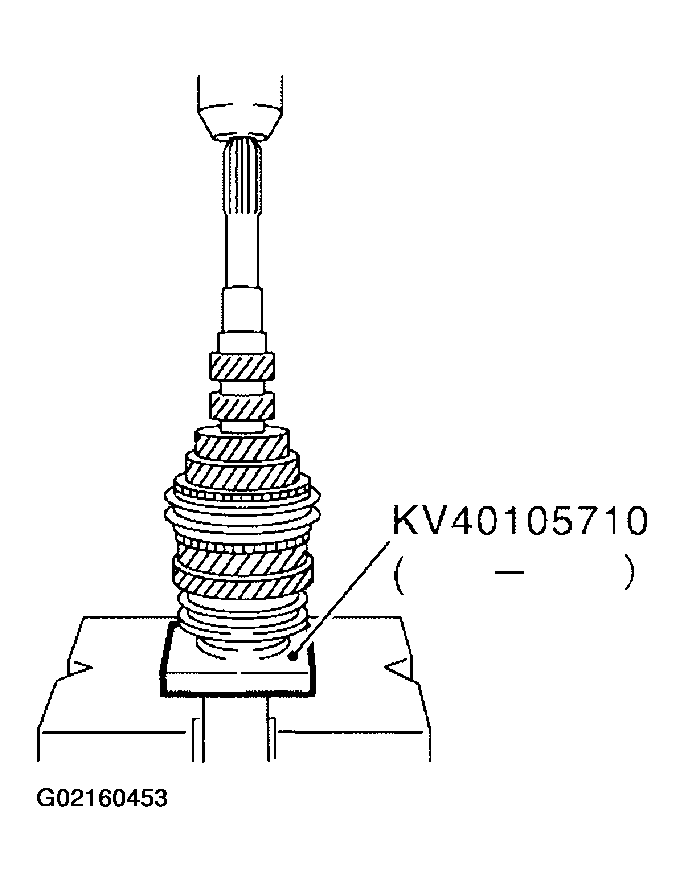

Install 5th stopper and then input shaft bearing spacer.

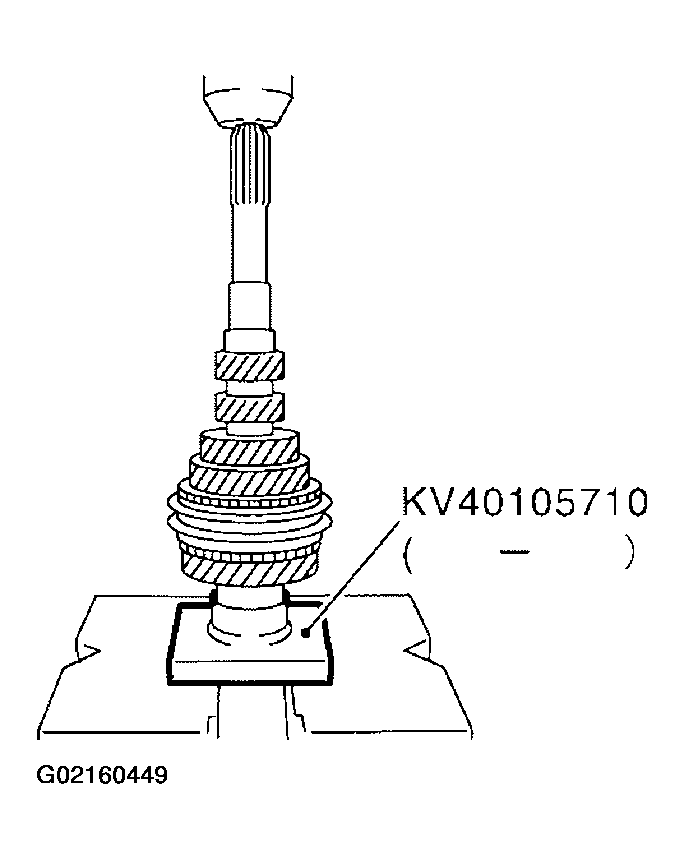

Fig 13: Installing 5th Stopper And Input Shaft Bearing Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring onto input shaft, and check that end play (gap between snap ring and groove) of input shaft bearing spacer satisfies standard.
End play standard value : 0 -0.1 mm (0 - 0.004 in)
- If measurement is outside the standard range, select snap ring.

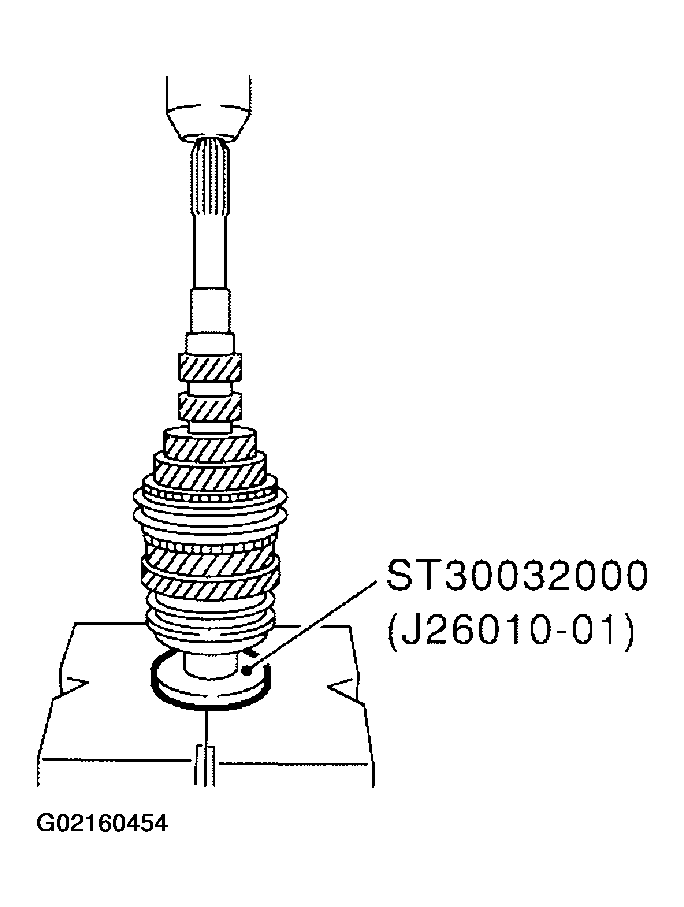

  Fig 14: Checking End Play Of Input Shaft Bearing Spacer
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Snap Rings

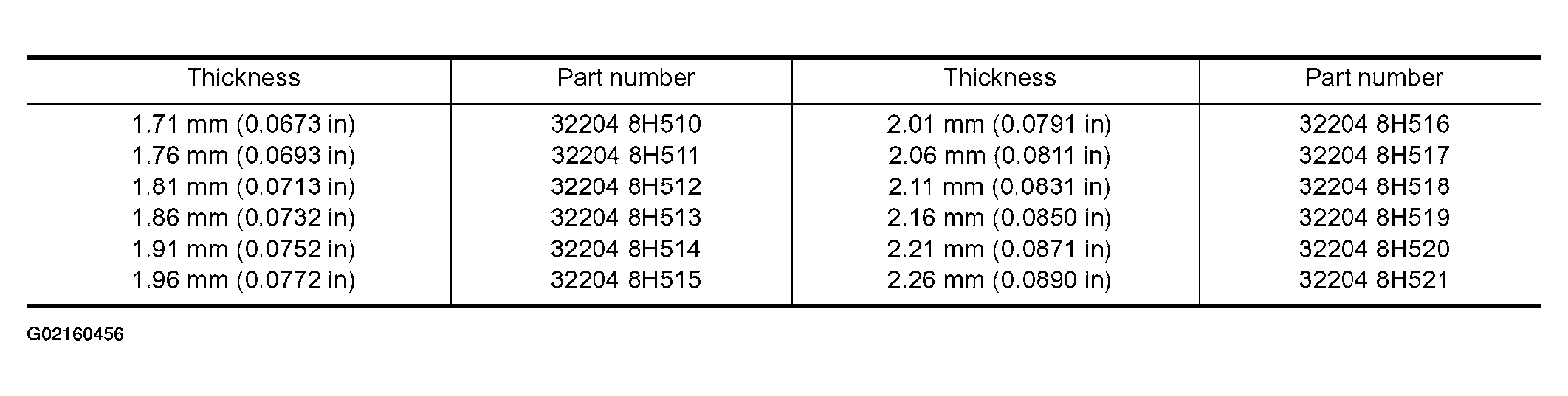

  Fig 15: Input Shaft Snap Rings Specification Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

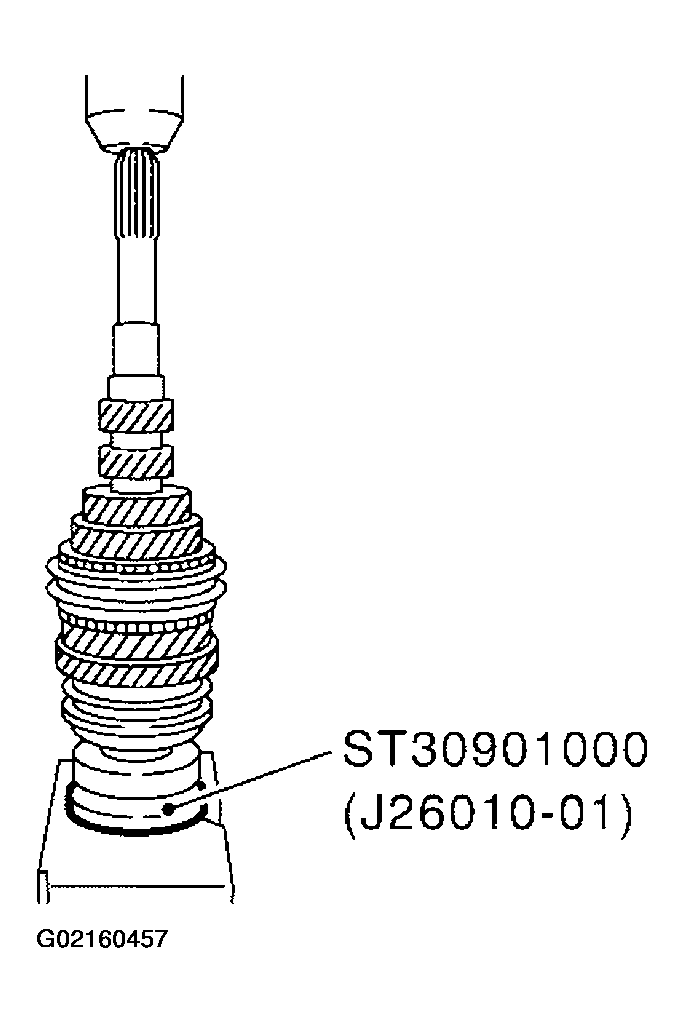

Install input shaft rear bearing.
CAUTION: Install input shaft rear bearing with its brown surface facing the input gear side.

Fig 16: Installing Input Shaft Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

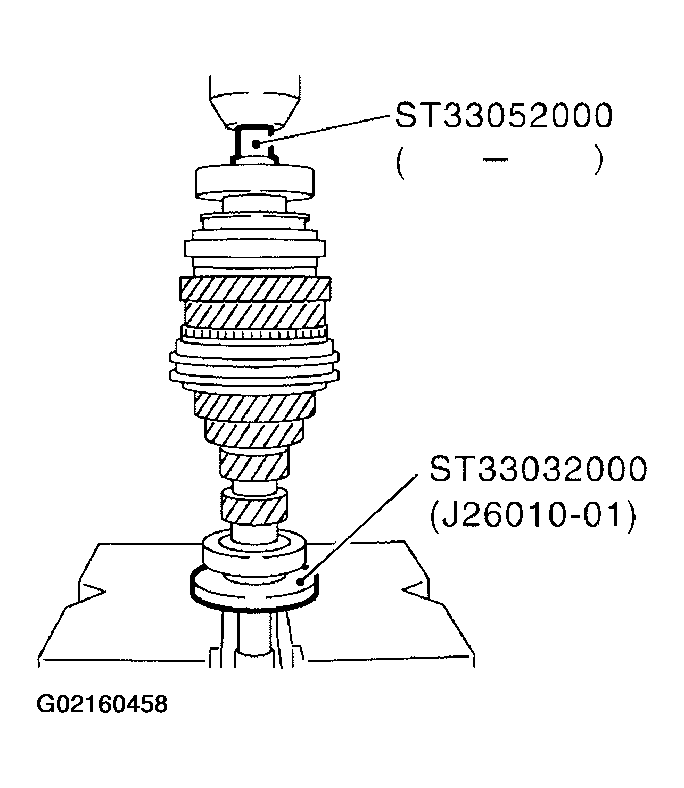

Install input shaft front bearing.

Fig 17: Installing Input Shaft Front Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil channel onto input shaft.
Check end play of 3rd, 4th, and 5th input gears.
End play standard value
1. 3rd gear : 0.18 - 0.31 mm (0.0071 - 0.0122 in)
2. 4th gear : 0.20 - 0.30 mm (0.0079 - 0.0118 in)
3. 5th gear : 0.06 - 0.16 mm (0.0024 - 0.0063 in)

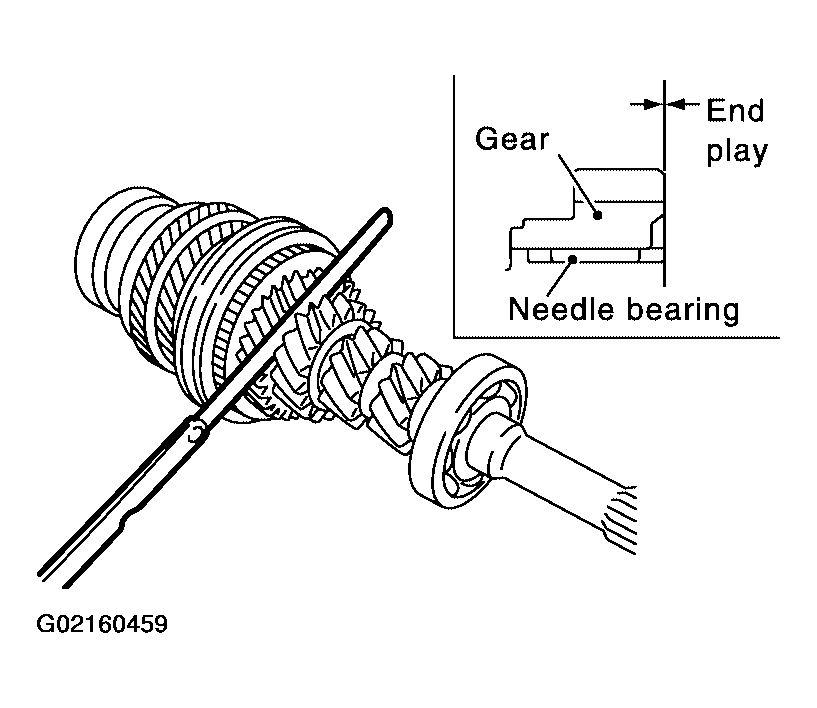

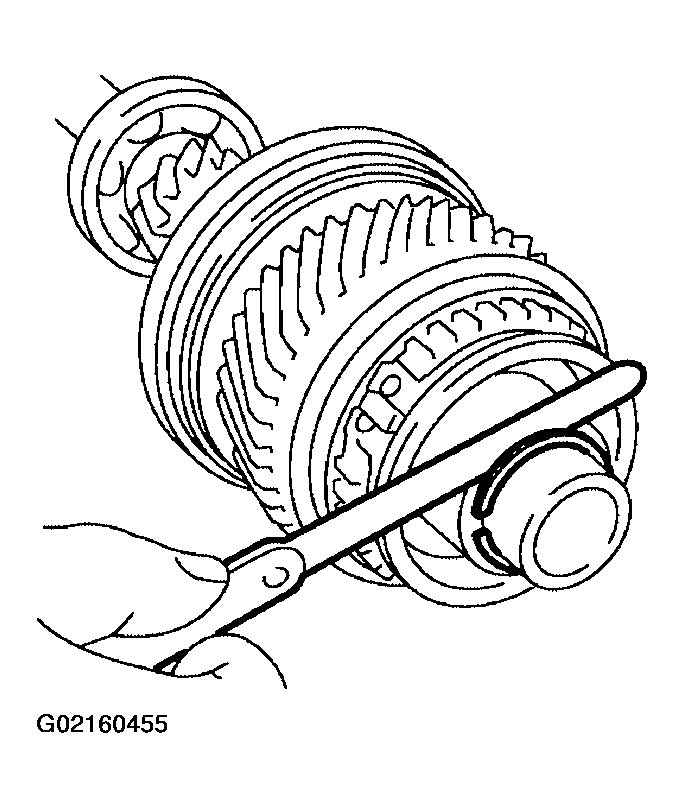

Fig 18: Checking End Play Of Input Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
