Reverse Gear

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

See figure for description of reverse gear components.

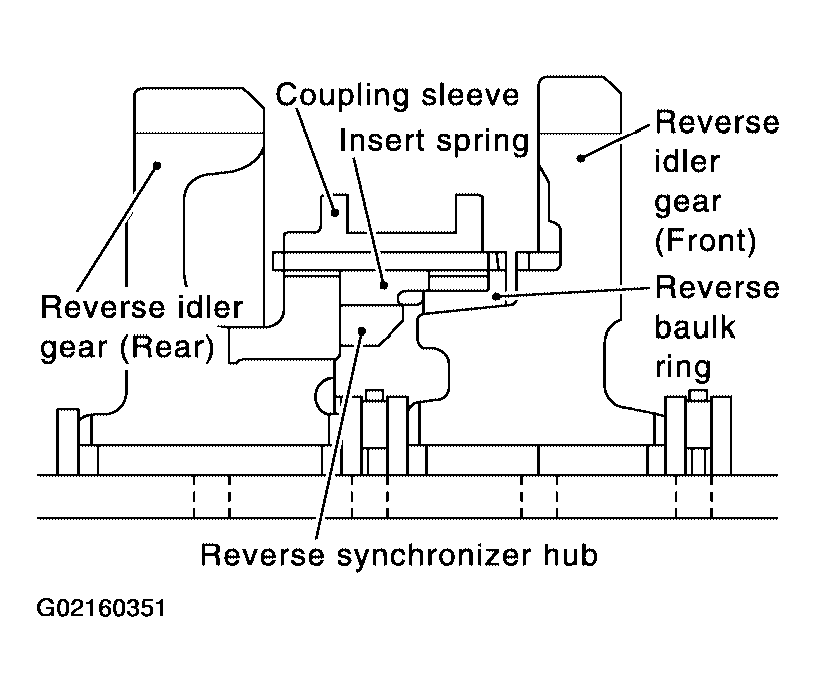

Fig 1: Identifying Reverse Gear Components Description
G02160351Courtesy of NISSAN MOTOR CO., U.S.A.
