Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the figure for air breather hose removal and installation information.

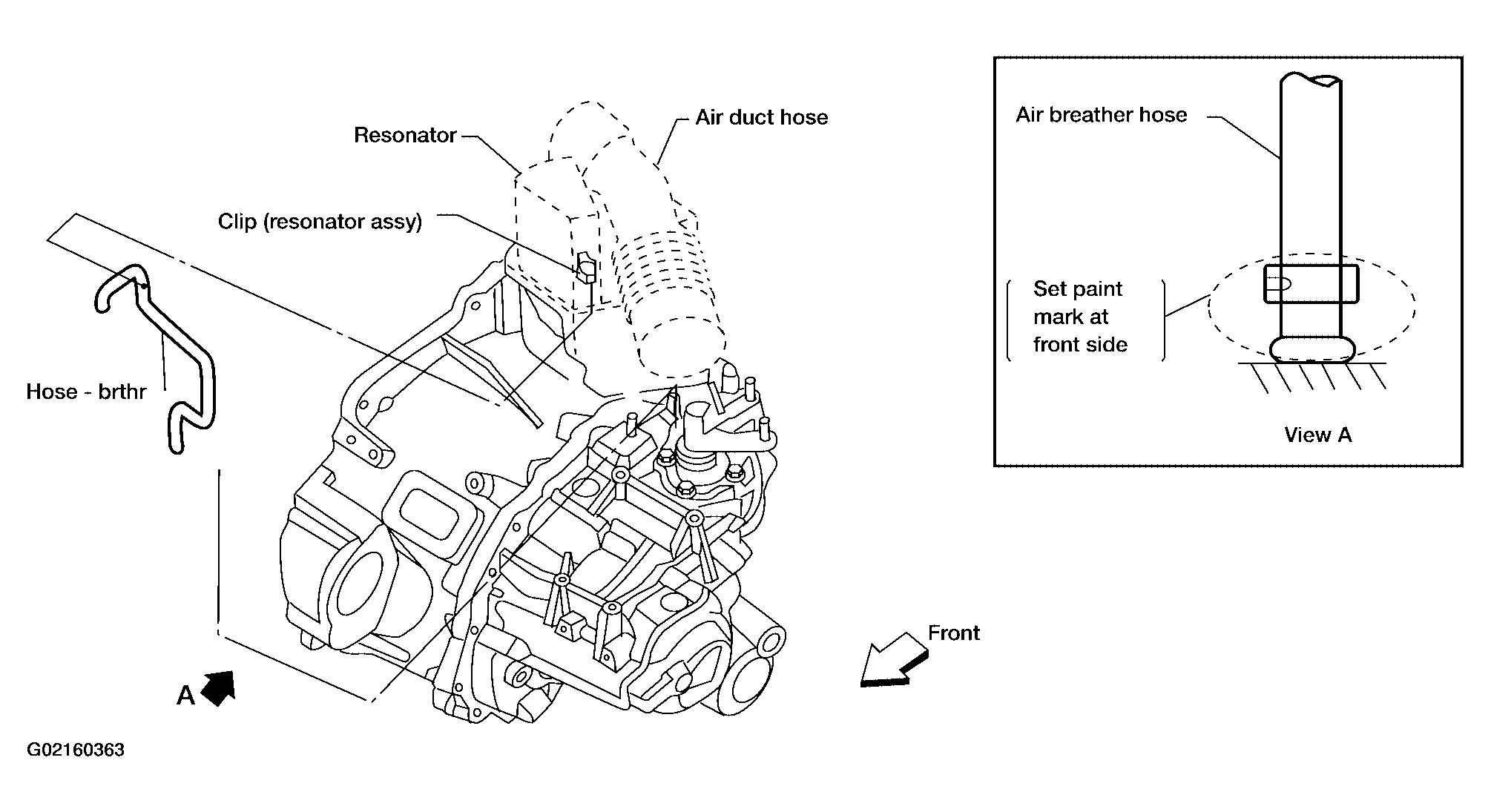

Fig 1: Removing Air Breather Hose (QR25DE Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

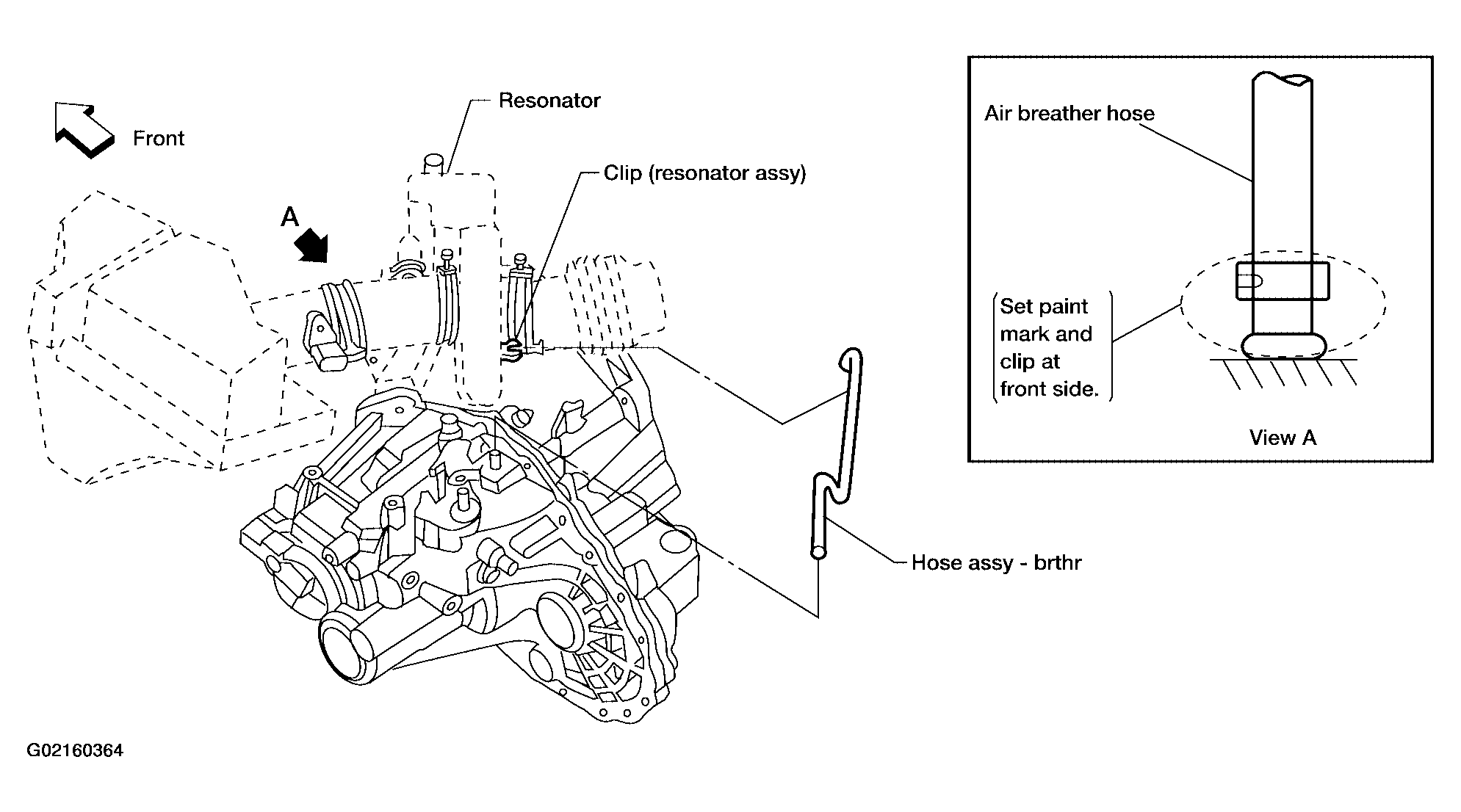

Fig 2: Removing Air Breather Hose (VQ35DE Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Make sure there are no pinched or restricted areas on the air breather hose caused by bending or twisting when installing it.
Be sure to insert hose into the transaxle tube until overlap area reaches the spool.
