Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel filter mounting bracket.
  2. Remove air cleaner and air duct. Refer to "AIR CLEANER AND AIR DUCT " (QR25DE), EM-15 or "AIR CLEANER AND AIR DUCT" (VQ35DE).
  3. Drain the brake fluid from the hydraulic clutch system.
    CAUTION: Do not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  4. Remove flare nut using a flare nut wrench.
  5. Remove clutch hose and clutch tube.

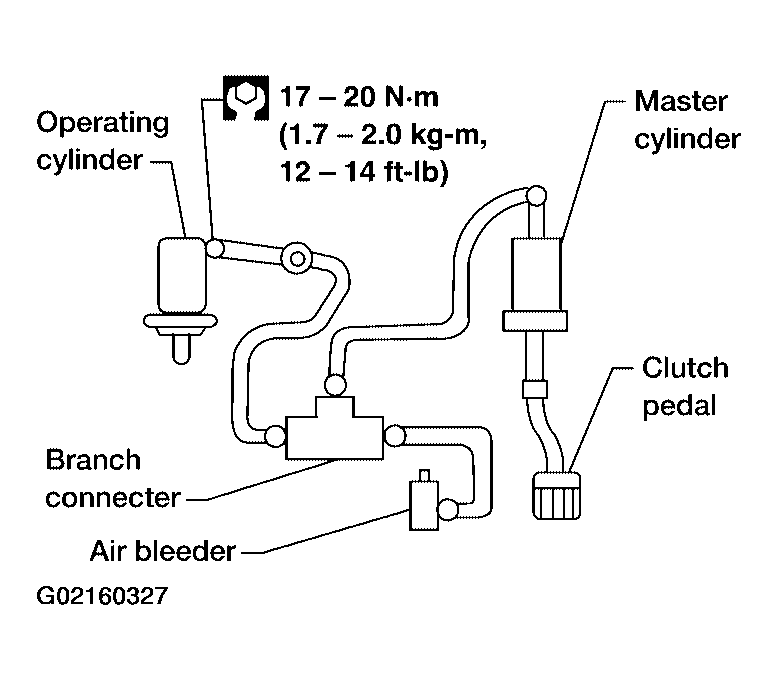

    Fig 1: Identifying Clutch Fluid Line
    G02160327Courtesy of NISSAN MOTOR CO., U.S.A.
