Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When installing clutch hose to bracket, face lock plate in the correct direction as shown to secure clutch hose.
CAUTION: Install clutch hose without twisting or bending it.

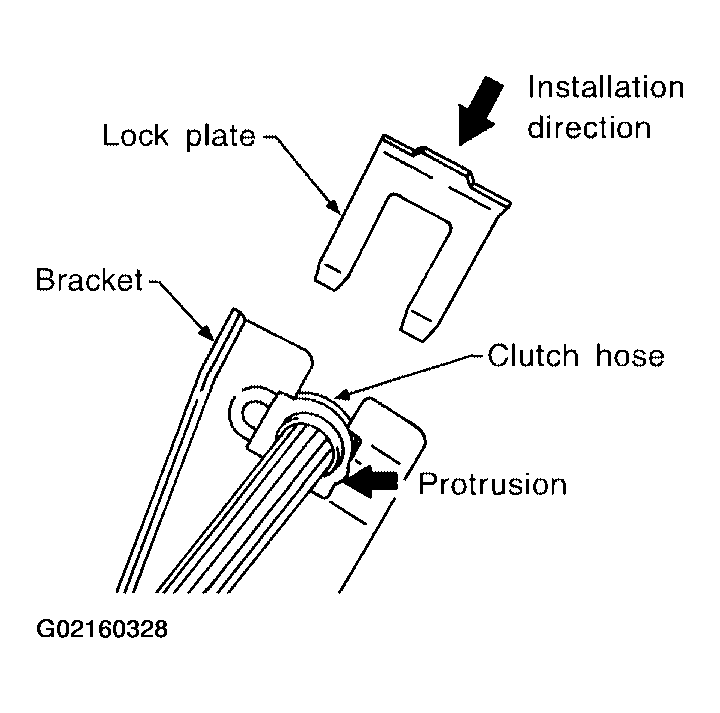

Fig 1: Identifying Clutch Hose And Face Lock Plate Correct Installing Direction
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten flare nut to the specification, using a flare nut wrench.
1. Flare nut : 15 - 18 N.m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)
CAUTION: Be careful not to damage flare nut and clutch tube.
Install clutch hose to operating cylinder, and tighten the mounting bolts to the specification.
1. Clutch hose mounting bolts : 17 - 20 N.m (1.7 - 2.0 kg-m, 12 - 14 ft-lb)
After installation, bleed the air from the clutch hydraulic system. Refer to "AIR BLEEDING PROCEDURE ".
